Product Details:
|
| Capacity: | 25.6V 20Ah | Energy: | 512Wh |
|---|---|---|---|
| Application: | Solar Street Light, UPS, Electric Vehicels, Etc. | Retention Rate: | ≥80%（2000 Cycles） |
| Cycles: | 4000-6000 Times | Self Discharge Rate: | Less That 3 Percent |
| Anode Material: | LiFePO4 | LED Display: | Optional |
| OEM/ODM: | Optional | Bluetooth: | Optional |
| High Light: | 24V LiFePO4 Battery,512Wh 24V LiFePO4 Battery,24v 20ah Lithium Battery |
||
4000 To 6000 Times 512Wh 20Ah 24V LiFePO4 Battery For Energy Storage
24V LiFePO4 Battery Lithium 25.6V 20Ah Battery for Energy Storage
LFP IP65 Deep Cycle 512Wh Lithium Iron Phosphate Battery
Characteristics of LiFePO4 Battery 25.6V 20Ah
1. Long cycle life
2. No memory effect
3. High energy density
4. Pollution-free
5. High discharge rate
6. Light weight
7. High working voltage for single battery cells
8. Capacity, resistance, Voltage, platform time consistency is good
9. With short-circuit production function, safe and reliable
10. Good consistency, low self discharge
25.6V 20Ah Battery Parameters
| Battery Box | |
| Norminal Voltage [VDC] | 25.6V |
| Voltage Range [VDC] | 20~29.2V |
| Rated Capacity | 20Ah |
| Battery Box Configuration | 8P4S |
| Rated Discharge Current [A] | 20A |
| Rated Charge Current [A] | 20A |
| Norminal Total Energy [kWh] | 512Wh |
| Cell | |
| Norminal Voltage [VDC] | 3.2V |
| Voltage Range [VDC] | 2.5~3.65V |
| Cell Type | LFP 32700 |
| Norminal Capacity | 6Ah |
| Rated Discharge Current [A] | 6A |
| Rated Charge Current [A] | 6A |
| Norminal Total Energy [kWh] |
19.2Wh |
| Construction | |
| Installation Type | Stationary |
| Level of Protection (IP) | IP65 |
| Altitude [m] | ≤2000 |
| Size (W*D*H) [mm] |
195*166*175 |
| Weight [kg] | 5.5kg |

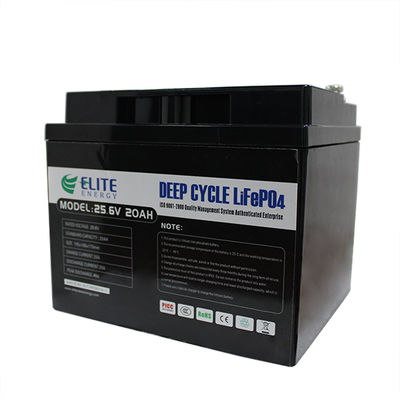

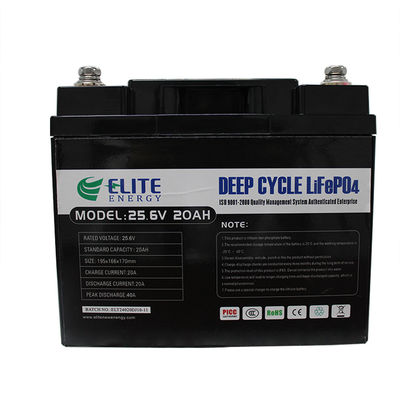

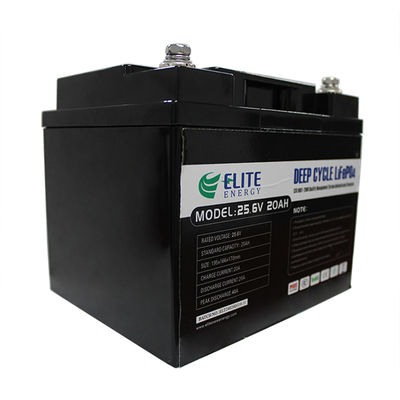

Battery Appearance
Application of LiFePO4 Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
Why Choose US:
1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
