Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display

Certification
China Shenzhen Elite New Energy Co., Ltd. certification
China Shenzhen Elite New Energy Co., Ltd. certification
Customer Reviews
Elite is specializing in producing deep cycle lifepo4 battery and providing professional battery solution according customers' requirements.

—— Igor Booklan

Professional LiFePO4 battery manufacturer for lead acid battery replacement, electric low speed vehicles and energy storage systems.

—— Linda.M

Nice cooperation experience with Elite, they provide high quality batteries and perfect services

—— Georage

I'm Online Chat Now

Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display

Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display
Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display

Large Image :  Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display

Product Details:
Place of Origin: Guangdong, China
Brand Name: Elite
Certification: CE, UL, MSDS, UN38.3, MSDS
Model Number: 24V 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $599.99-$1799.99/PCS
Packaging Details: Carton box with pallet/Wooden Case
Delivery Time: 20-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000 PCS/Month

Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display

Description
Capacity: 24V 200Ah Energy: 5120Wh
Cell: Prismatic CATL Cell Cell Model: 3.2V 202Ah
Application: Forklift Retention Rate: ≥80%(2000 Cycles)
Anode Material: LiFePO4 Cycle: ≥4000 Times
External LCD Display: Yes OEM/ODM: Acceptable
High Light:

Forklift 24V LiFePO4 Battery

,

200Ah Lifepo4 Forklift Battery

,

5120Wh Deep Cycle LiFePO4 Battery

Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display



Deep Cycle 24V 200ah Forklift LiFePO4 Battery with Capacity Display



Lithium Iron Phosphate LiFePO4 Battery for Power Storage/Golf Cart/Forklift



Deep Cycle LiFePO4 Battery Characteristics
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life • Light weight & compact
• Water & dust resistant
• Highly energy density
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional



Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display 0

Lifepo4 Forklift Battery​ Parameters



Model ELT-24200/8S1P
Battery cell 3.2V 100Ah prismatic LifePO4 cell
Case dimension 570*150*450mm(L*W*H)
Nominal voltage 25.6V
Nominal capacity 200Ah
Battery configuration 8S1P
Internal resistance ≤220mΩ
End of charge voltage 29.2V
End of charge current 100mA
End of discharge voltage 20V
Standard charge current 20A
Max charge current 100A
Standard discharge current 100A
Max discharge current 200A
Max pulse discharge current 400A/3S
Charge method CC/CV
Case material metal
Net weight 53KG
Charge temperature 0~45ºC
Discharge temperature -10~55ºC
Storage temperature -10~45ºC
Lifecycle 2000 times 85% DOD
Warranty 3 years
LCD display can show the battery voltage and capacity
BMS protection over-charge,over-discharge,over-current,short circuit and balance function

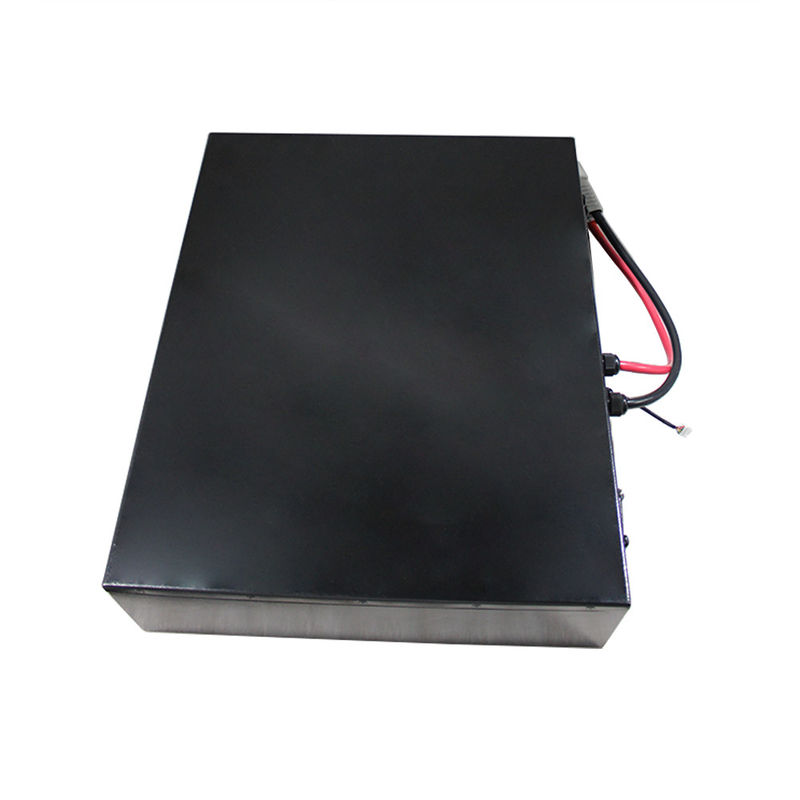

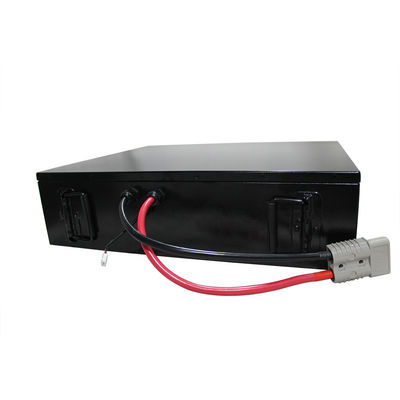

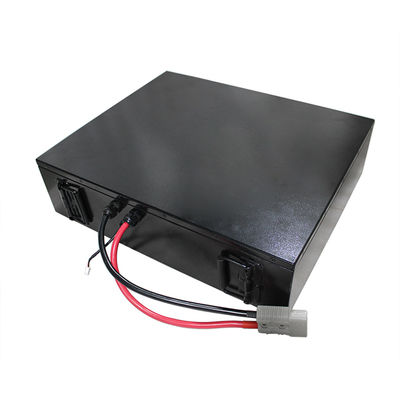

Lifepo4 Forklift Battery​ Appearance



Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display 1Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display 2

Deep Cycle LiFePO4 Battery Performance and Test Conditions



1. Standard test conditions

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.



2. Standard Charge/Discharge



Standard Charge: 0.2C

Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.



Standard Discharge: 0.2C

Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C



Elite OEM/ODM Service



In the lithium-ion battery industry, different customers may have different requirements on their batteries, because of their different applications. Besides, most customers would prefer to have the batteries with their own brand. In Elite, with the professional engineer team, we are able and willing to help our customers making their ideas come true. Please feel free to contact us whether you happen to be looking for a lithium battery solution or you are just looking for an alternative supplier for back up.


Excellent Engineers

Elite provides customize solutions to meet your request in every detail. Our engineer team is able to leverage their experience in technology, product, industry to rapidly design the battery pack to ensure a proper solution is figured.

What Specification? Is Customizable?
When you are going to customize the battery, there're 6 main specifications that can be tailored to your needs:

• Voltage • Charge Current
• Capacity • Discharge Current
• Dimension • SOC Indicator

No matter you are looking for a specific size or more energy output for your equipment, Elite is able to provide you a good solution.
Our teams are ready to help you, please send your request to talk in detail.



Why Choose US:



1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
