Product Details:
|
| Name: | Li-on 48V 100Ah LiFePO4 Battery Pack | Type: | LiFePO4 |
|---|---|---|---|
| Capacity: | 48 V 100Ah | Nominal Voltage Voltage: | 51.2V |
| Rated Capacity: | 100Ah | Energy: | 5120Wh |
| Application: | ESS, Solar System/Powerwall | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| High Light: | 48V LiFePO4 Powerwall,100Ah Lithium Battery Powerwall,100Ah LiFePO4 Powerwall |
||

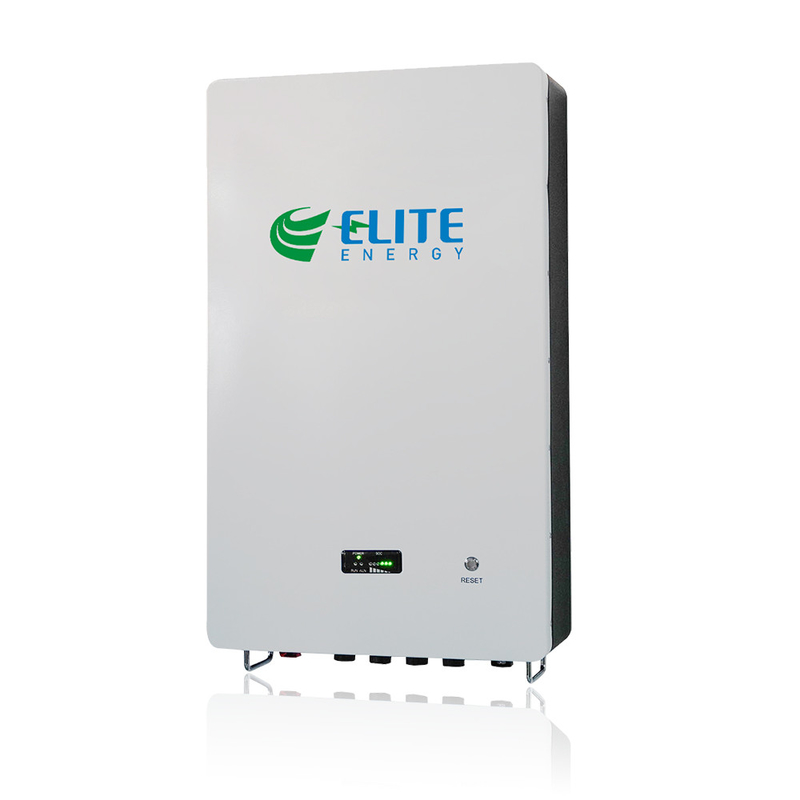

IP67 100Ah 48V LiFePO4 Powerwall For Home Solar Energy Storage
Elite 48V 100Ah Li-ion Battery Pack Lithium Battery Powerwall for Home Solar Energy Storage
| Function Parameter | |
| Norminal Battery Energy | 4800Wh |
| Norminal Capacity | 100Ah |
| Norminal Voltage | 48V |
| Internal Resistance | ≤10mΩ |
| Cycle Life | <3000 |
| Months Self Discharge | <3% |
| Charge Data | |
| Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) |
| Charger Current | 20A |
| Max. Charge Current | 100A |
| Charge Cut-off Voltage | 40V |
| Discharge Data | |
| Continuous Current | 20A |
| Max continuous discharge current | 100A |
| Discharge Cut-off Voltage | 40V |
| Working Condition | |
| Charge Temperature | 0ºC to 45ºC (32ºF to 113ºF) @60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC (-4ºF to 140ºF) @60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC (32ºF to 104ºF) @60±25% Relative Humidity |
| Enclosure Protection Level | IP67 |
| Mechanical Data | |
| Cell & Method | 16S |
| Shell material | Metal Case |
| Dimensions | 780*634*114mm |
| Weight (lbs./kg.) | 68kgs |
Lithium Battery Feature
1. Environment Solution
Green Li-ion battery ,no leaking of hazardous battery gases and acids, no pollution to the environment.
2. Freely Charge
No memory effect and the battery can be flexible charge and discharge even during short breaks.
3. Excellent performance
Less than 3% low self discharge, over 2000 cycle times long lifespan and stable discharge platform.
4. Economical Choose
Smaller volume and about 40% lightweight than lead acid battery, save the transportation and installation cost.
5. Battery Application
The lifepo4 battery powerwall are usally use for Solar Energy Storage System/PV Power System/Household Energy.

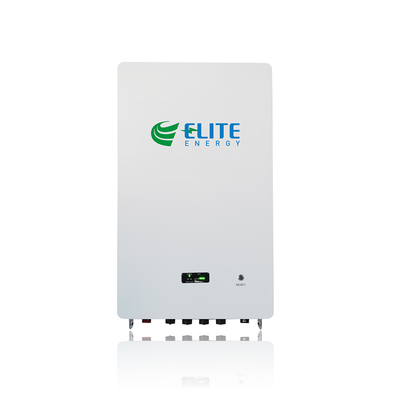

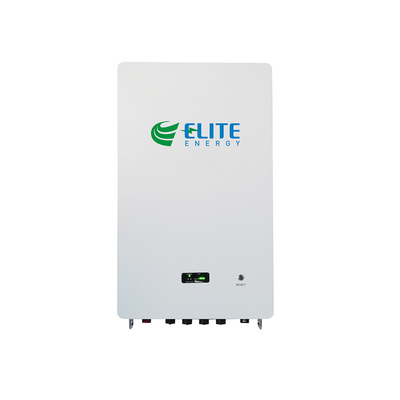

Battery Images
Company Advantage
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Quality
Grade A cell battery, advance producing equipment
Professional research and development team
Experience production operator
100% inspection before delivery.
Service
Before sale: Welcome to send us inquiry with your requirement and our sales team will reply your inquiry and question with 24 hours.
After sale: We provide 2years warranty and on line technical support. If any technology problem ,please feel free to contact us.
OEM: We support OEM service ,printing logo and OEM brand both available. And battery voltage and capacity are optional of 12V/24V36V/48V/72V 6Ah/10Ah/50Ah/100Ah/200Ah/300Ah ...
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
FAQ
Q1. Are you have any MOQ limit?
A1. Sample order foe checking is available and bulk order are welcomed.
Q2: Do you accept OEM or ODM service?
A2: Yes ,we supply OEM and ODM service as customer’s requirement.
Q3: How to place an order?
A3.Firstly, please kindly send us your requirements or application. Secondly, we will send you the quotation accordingly. Thirdly, confirm battery details and quantity, sample order for testing is available. Fourthly, We arrange the production.
Q4: How should I do if the battery doesn’t work?.
A4: We provide 2 years warranty and please take a photo and send us related information, then we will solve it for you within 24 hours.
Q5. What shipping method can I choose? How about the shipping time?
A5: Our sales person will recommend the most suitable solution to you according to your detailed order and situation.
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order.
By Railway (15-35 days): Suitable for bulk order.
