Product Details:
|
| Capacity: | 48V 100Ah | Nominal Voltage Voltage: | 51.2V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 5376Wh |
| Application: | ESS, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Communication: | CAN, RS232, RS485 | OEM/ODM: | Available |
| High Light: | RS485 Deep Cycle LiFePO4 Battery,RS232 Deep Cycle LiFePO4 Battery,RS485 LiFePO4 Battery Pack |
||
CAN RS232 RS485 Deep Cycle LiFePO4 Battery Pack Built In BMS
New Energy Renewable LiFePO4 Battery Pack

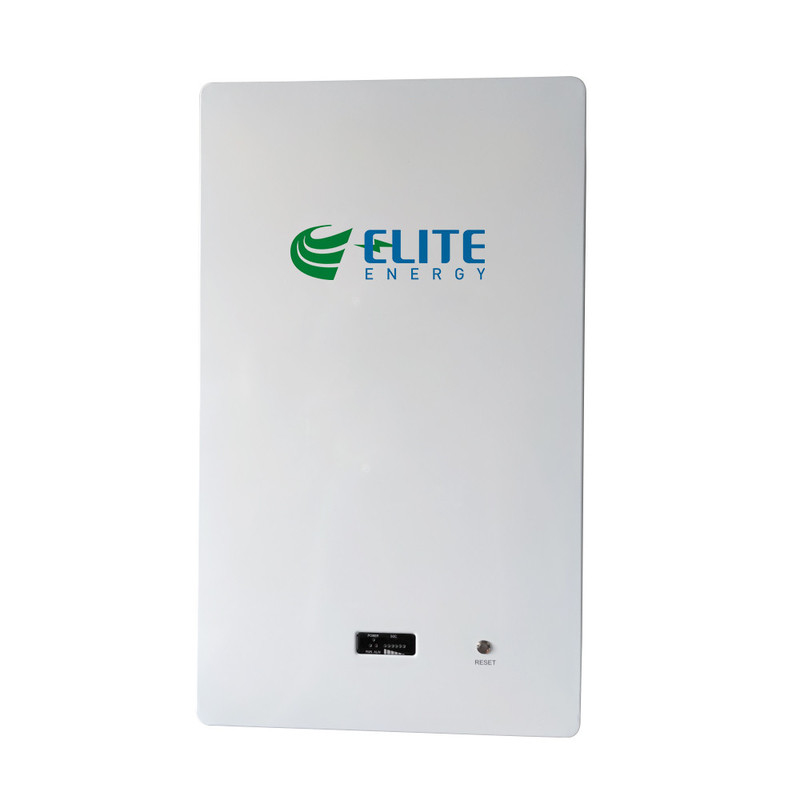

48V 100ah 5kwh Wall-Mounted Powerwall Lithium Ion Battery
| Electrical Characteristics | Model | ELT-PW-5K | ELT-PW-10K | ||||
| Nominal Voltage | 51.2V | ||||||
| Nominal Capacity | 100Ah | 200Ah | |||||
| Energy | 5120Wh | 10240 | |||||
| Battery Type | LiFePO4 Battery | ||||||
| Internal Resistance | ≤10mΩ | ||||||
| Life Span | >6000 cycles | ||||||
| Months Self Discharge | <3% | ||||||
| Efficiency of Charge | 100%@0.5C | ||||||
| Efficiency of Discharge | 96-99% @1C | ||||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | |||||
| Charge Mode | 0.2C to 58.4V, then 40V charge current to 0.02C(CC/CV) | ||||||
| Recommend Charge Current | 20-50A | ||||||
| Max. Charge Current | 100A | 200A | |||||
| Standard Discharge | Max. Continuous Discharge Current | 100A | 200A | ||||
| Max. Pulse Current | 150A | 300A | |||||
| Discharge Cut-off Voltage | 40V | ||||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | |||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||
| Water Dust Resistance | IP67 | ||||||
| Mechanical | Package | Metal Case | |||||
| Dimensions(mm.) | 450*163*750mm | 520*163*880mm | |||||
| Weight(kg.) | 55kg | 100kg | |||||
|
Parallel Connection
|
YES | ||||||
| Others | Certification | CE, MSDS, UN38.3 | |||||
| Warranty | Standard 5 years, 10+ years upon request | ||||||
| OEM | Support for customized dimension, current, logo and so on. | ||||||
Features
Packed with high performance LFP single cell, long life, safety and wide temperature range;
Built-in BMS, with battery voltage, current, temperature and health management.
Integrated communication interface, CAN and RS485 communicate with inverter or PC
Easily for installation and capacity expansion with parallel connection;
Perfect for home solar system, on grid and off grid, backup power for emergency;
Services
#1 Wide range options of LiFePO4 batteries (12V-960V, 5Ah-1000Ah) , also support OEM.
#2 Using high quality a grade cylindirical/prismatic cells. More than 4000 cycle life. Up to 10 years lifespan.
#3 Warranty for standard 5 years, 10+ years upon request
#4. We have some batteries in stock and semi-finished batteries.
#5 Supply technical support and provide efficient battery solutions.
#6 Free silk print your logo and OEM
#7 Help you to choose the most cost-effective shipping way.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
FAQ
1. Where can I get the price?
A: We will offer you the quotation within 24 hours after receiving your inquiry.
2. Can I have samples to test?
A: Yes,we can supply samples, and you need to pay for sample cost and shipping cost.
3. Available for customized , such as size and logo?
A:Yes, OEM/ODM service are accepted are please feel free to contact us with your requirements.
4.Can it be series or parallel for use?
A: Yes sir, it can support max. 16 in parallel connection for use.
5. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. How to order?
A: 1. If you are interested in any products,please tell us the model No,detailed parameter, we will quote you in time.
2.After confirmation of the price, we will make the PI for you.
3.After receiving your deposit,we will arrnge shipment for you.
4. After shipment, we provide you with the bill of tracking number.
