OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS

OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS

  • High Light

    400Ah 24V LiFePO4 Battery

    ,

    LFP 24V LiFePO4 Battery

    ,

    24V 400Ah LiFePO4 Battery

  • Capacity
    24V 400Ah
  • Rated Capacity
    400Ah
  • Voltage Range
    20V-29.2V
  • Energy
    10240Wh
  • Material
    LiFePO4
  • Cycle
    ≥4000 Times
  • Self-discharge Rate
    3%
  • Retention Rate
    ≥80%(2000 Cycles)
  • Application
    Marine, Boat, RV, Van, Camp, Caravan
  • OEM/ODM
    Acceptable
  • Place of Origin
    Guangdong, China
  • Brand Name
    Elite
  • Certification
    CE, UL, MSDS, UN38.3, MSDS
  • Model Number
    24V 400Ah
  • Minimum Order Quantity
    1PCS
  • Price
    $599.99-$1799.99/PCS
  • Packaging Details
    Carton box with pallet/Wooden Case
  • Delivery Time
    20-30 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 PCS/Month

OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS

OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS



24V 400Ah Lithium Iron Phosphate LFP Li-ion Power Bank for ESS/UPS



Deep Cycle Power Supply 400Ah 25.6 Volts for Solar Energy Storage



Key Features Of 24V 400Ah LiFePO4 Battery:


♦ Maintenance-Free ,Absorbent Glass Mat Technology
♦ Low Self Discharge
♦ Long Designed service Life ,Deep Cycles
♦ Excellent Discharge Performance
♦ Environment Friendliness
♦ Wide suitability of ambient temperature range



OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS 0

24V 400Ah LiFePO4 Battery Applications:


♦ Solar and wind energy storage system
♦ EPS and UPS battery backup
♦ Signal system , emergency lighting system , security system
♦ Telecommunication Equipment
♦ Power source for portable devices or tools



OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS 1

Parameters of 24V 400Ah LiFePO4 Battery



1. Functional Parameter 5. Environment Temperature
Nominal Voltage 24V Discharge Temperature -20~50ºC
Nominal Capacity (10 hour rate) 400Ah Charge Temperature -10~50ºC
Number of Cells 8 cells Storage Temperature -20~60ºC
2. Rated Capacity at 25ºC (77° F) 6. Inner Resistance & Max Discharge Current/Voltage
10 hour rate (0.1C, 1.80V/cell) 400Ah Fully Charged battery at 25ºC (77° F) 0.45mΩ
3 hour rate (0.25C, 1.75V/cell) 295Ah Max. Discharge Current 100A (5s)
1 hour rate (0.55C, 1.60V/cell) 203Ah Discharge Cut-off Voltage
3. Capacity affected by Temperature (10 hour rate) 7. Self-discharge at 25ºC (77° F)
40ºC (104° F) 102% Capacity after 3 month storage 92%
25ºC (77° F) 100% Capacity after 6 month storage 84%
0ºC (32° F) 90% Capacity after 9 month storage 74%
-15ºC (5° F) 70% Capacity after 12 month storage 65%
4. Dimension and Weight 8. Constant voltage charging at 25ºC (77° F)
Length 540mm Cyclic use 2.5~3.65V
Width 470mm Maximum charging current 100A
Height mm Temperature compensation -5mV/ºC
Total Height mm Float use 2.5~3.75V
Reference Weight 26kg Temperature compensation

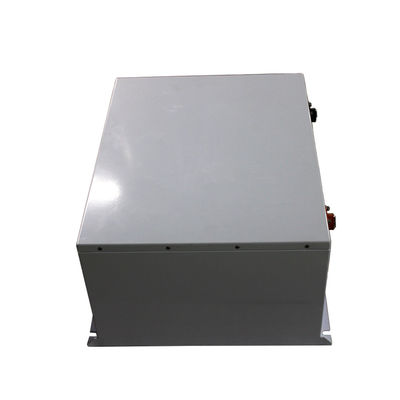

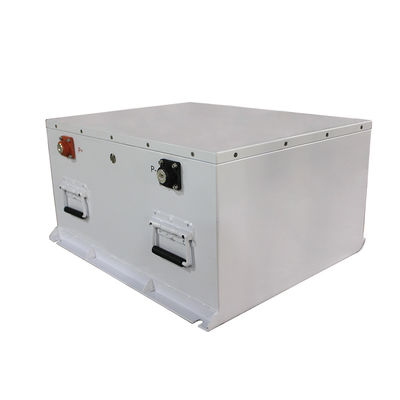

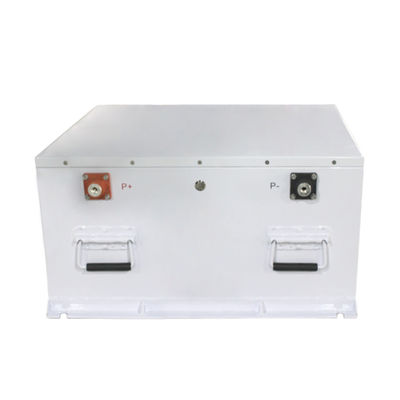

24V 400Ah LiFePO4 Battery Appearance



OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS 2OEM ODM LFP 400Ah 24V LiFePO4 Battery Li Ion Power Bank For ESS UPS 3

24V 400Ah LiFePO4 Battery Testing

1. Waterproof test on lithium battery

Elite LiFePO4 batteries are widely used in marine, like the Yachts, Fishing Boats, Sailing boats, Kayak, Catamaran, etc.

Elite including special processing on lithium battery production crafts to meet the requirements of IP standard in different installation and operating environments. If you want a waterproof lithium battery, we are very pleased to provide you, please let us know your requirements.



2. Analog Car Vibration Test of Lithium Battery
To ensure the safety of our lithium batteries, we not only had many electric tests but also had a series of environmental tests, including the Analog Car Vibration Test.

Test Result: Elite LiFePO4 is suited to all the above road conditions, not only with stable performance but also safe and secure.



3. Nail Penetration Test
The Elite LiFePO4 battery pack is penetrated by two nails, after 6 minutes, there is no fire, no explosion during the whole testing process.

The stable chemistry of the lifepo4 lithium-ion battery proofs to be outstanding safe for use even in an extremely tough operating environment.



4. Drop Test
Elite 24V 200Ah LiFePO4 lithium-ion battery pack weight is 53kgs. it is dropped from 50 meters height at 120km/h speed. No fire, no explosion.



Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
