Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery

Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery
Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery

Large Image :  Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery

Product Details:
Place of Origin: Guangdong, China
Brand Name: Elite Battery
Certification: CE, UL, MSDS, UN38.3, MSDS
Model Number: 24V 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $159.99-$1299.99/PCS
Packaging Details: Carton box with pallet
Delivery Time: 30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000 PCS/Month

Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery

Description
Capacity: 24V 200Ah Nominal Voltage Voltage: 25.6V
Rated Capacity: 200Ah Energy: 5120Wh
Application: ESS, EV, Solar System Cycle Span: 3000-5000 Cycles
Compact Desiged: With Built-in BMS Self-diacharge Rate: <3%
LED Indicator: Yes OEM/ODM: Available
High Light:

5120Wh Lifepo4 Marine Battery

,

38kg Lifepo4 Marine Battery

,

IP54 lifepo4 battery 24v 200ah

Lithium Li Ion Deep Cycle 38kg 24V 200Ah Lifepo4 Marine Battery



Recgargeable LiFePO4 24V 200Ah Lithium Li-ion Marine/RV Battery



Product Description



Feature

Lithium iron phosphate battery can be fast charging/discharging: lithium iron phosphate battery can be high current 2C fast charged and discharged, under the special charger ,1.5C charge can make the battery full of capacity within 40 minutes, the starting current can reach 2 C, and the lead acid battery does not have this performance at present. Besides, it has high energy density: lithium iron phosphate battery has high storage density, which has reached 460-600 Wh/kg at present, about 6-7 times higher than lead acid battery. What's more, lithium iron phosphate battery has long life span, the cycle times of lead acid battery is about 300 times, the highest is 500 times, but the cycle times of lithium iron phosphate battery can reach more than 2000 cycles. The life span of the same quality lead acid battery is about 1-1.5 years, but the lithium iron phosphate battery will reach 7-8 years under the same conditions. Overall, the performance-price ratio of lifepo4 battery will be more than 4 times that of lead-acid batteries.



Nominal Voltage

25.6V

Nominal Capacity

200Ah

Energy

5120Wh

Internal Resistance

≤10mΩ

Cycle Life

>3000 cycles@1C 100% DOD

Months Self Discharge

<3%

Efficiency of Charge

100%@0.5C

Efficiency of Discharge

96-99% @1C

Charge Cut-off Voltage

29.2±0.2V

Charge Mode

0.2C to 29.2V, then 29.2V charge current to 0.02C(CC/CV)

Recommend Charge Current

20A

Max. Charge Current

100A

Max. Continuous Discharge Current

100A

Max. Pulse Current

250A(10S)

Discharge Cut-off Voltage

20V

Charge Temperature

0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity

Discharge Temperature

-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity

Storage Temperature

0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity

Water Dust Resistance

IP54

Cell&Method

8S

Package

ABS Plastic Case

Dimensions(in./mm.)

525*269*220mm

Weight(lbs./kg.)

38kg

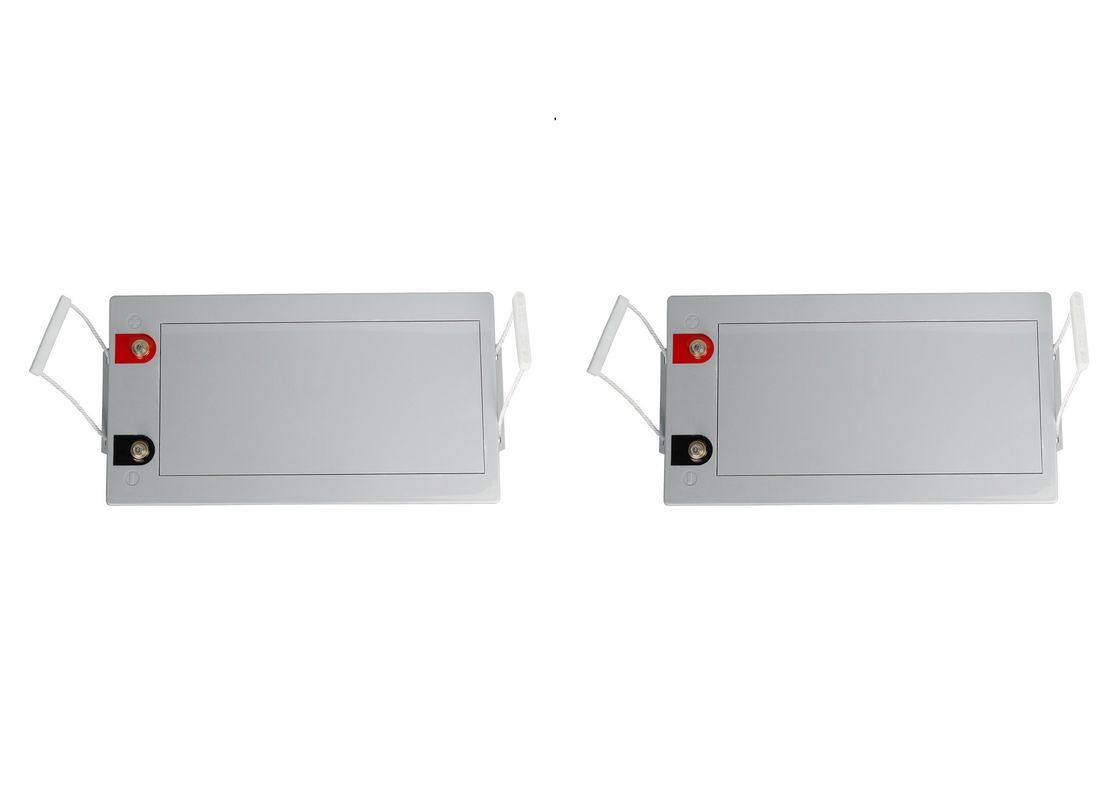

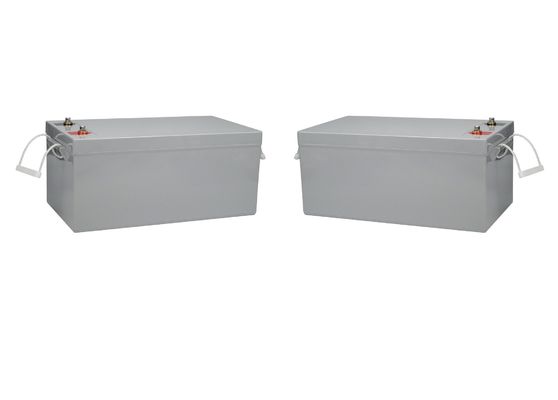

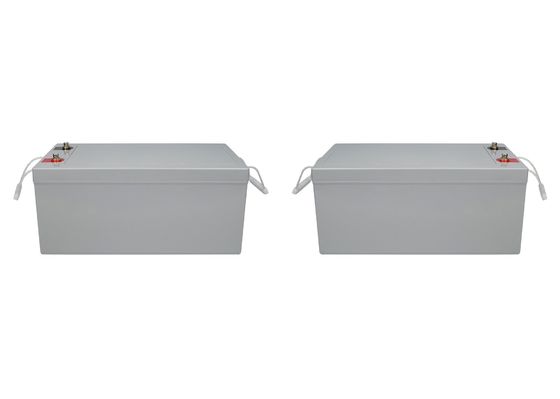

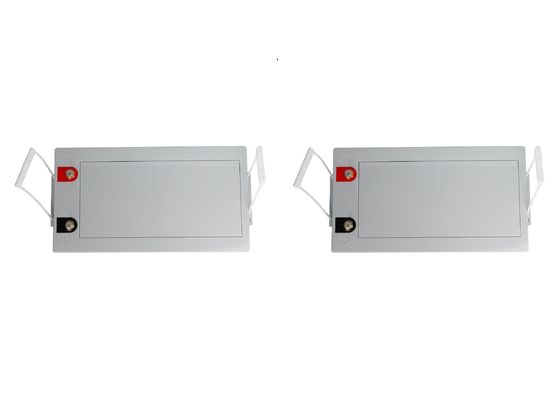

Product Images

Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery 0



Company Information

Introduction

Lithium Li Ion Deep Cycle 24V 200Ah Lifepo4 Marine Battery 1

Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.



Packaging & Shipping



Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

Shipping: By air, by sea, by express, railway transportation and so on.



Q&A



1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
