Product Details:
|
| Capacity: | Lifepo4 Battery 12v 300ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 300Ah | Energy: | 3840Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | 12V 300Ah RV LiFePO4 Battery,12V 300Ah RV Backup Battery,12V 300Ah Lithium Ion Battery |
||

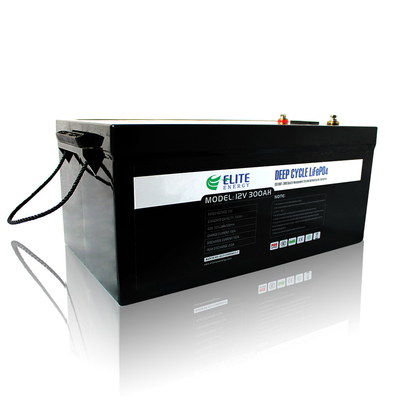

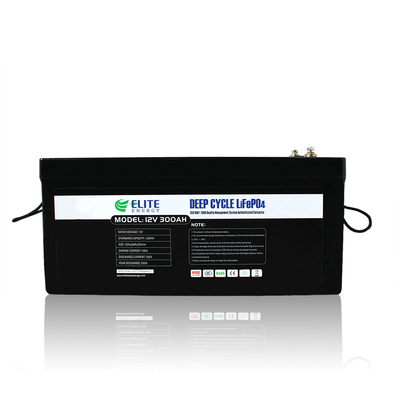

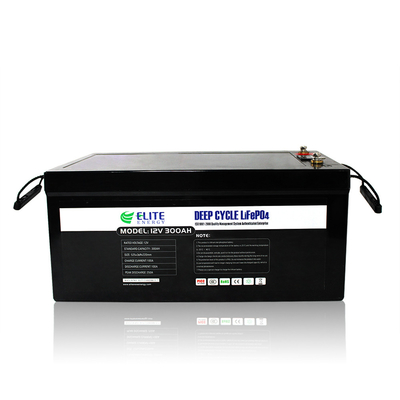

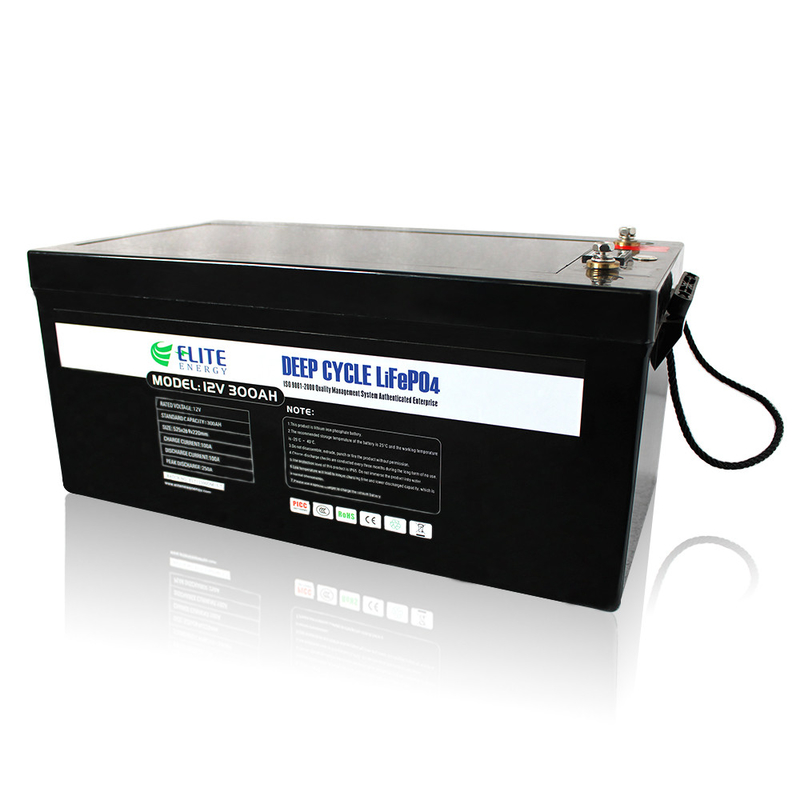

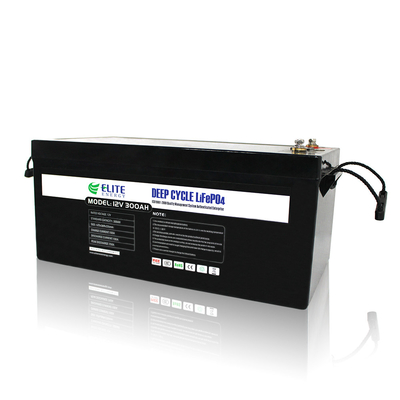

High Power 12V 300Ah RV LiFePO4 Battery Lithium Ion Backup Battery
12V 300Ah Lithium Ion Battery High Power LiFePO4 Battery RV Backup Battery
LiFePO4 Battery Specification
| Nominal Voltage | 12.8V |
| Nominal Capacity | 300Ah |
| Energy | 3840Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 250A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP58 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 525*220*269mm |
| Weight(lbs./kg.) | 37kg |
| Display screen | Optional |
Li-ion Battery Feature
>>> Easy to use and maintenance free
>>> 1/2 size & weight of lead acid battery
>>> Good performance at high temperature
>>> 100-200A continuous discharge current
>>> New grade A cylindrical and prismatic cells
>>> Flexible for indoor and outdoor applications
>>> Low self-discharge rate of less 3% per month
>>> Deep cycle, no memory effect, highly efficient
Lithium Battery Details
* M8 Terminal
* LCD Display
* Portable Handle
* Stable Case
LFP Battery Applications
The most important reason to choose the LiFePO4 battery is safety and quality.
It supply energy power for your appliances in a boat, RV, kayak, leisure caravan, camper, trailer and other equipment, also available to store the electricity of a solar system.
Packaging & Shipping
Packing: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
FAQ
Q: What's your main products?
A: Full kinds of 12V 24V 36V 48V 72V LiFePO4 battery pack and also support OEM.
Q: Can I get a sample order?
A: We support sample order and please kindly contact us at any time.
Q: How can you guarantee quality?
A: We do the pre-production sample before mass production and 100%final Inspection before shipment;
Q: What’ your payment term?
A: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q: What's yorur warranty service?
A: We offer 3 years guarantee and 24 hours online technology support If there are any problems, please inform us, we will offer you positive solutions.
