Product Details:
|
| Specifictaion: | 12V 300Ah | Energy: | 3840Wh |
|---|---|---|---|
| Cell Type: | 32700 LFP Cell | Connection: | 4S50P |
| Material: | LiFePO4 | Cycle Times: | 3000-6000 Cycles |
| Retention Rate: | More Than 80% After 2000 Cycles | Self-discharge Rate: | Less Than 3% Monthly |
| Rechareable: | Yes | OEM/ODM: | Available |
| High Light: | 3840Wh RV LiFePO4 Battery,300Ah RV LiFePO4 Battery,3840Wh Rechargeable Lithium Battery |
||
RV 12V 300Ah 3840Wh Solar Power Supply Rechargeable Lithium Battery
LiFePO4 Battery Advantages
1. INCREASED FLEXIBILITY
12V LiFePO4 batteries support series and parallel. Up to 4 batteries in series or up to 4 in parallel for 12V, 24V, 36V and 48V systems. 48V lithium batteries support parallel up to 15-16 units.
2. EASY INSTALLATION
Canbat lithium batteries are designed as a drop-in replacement for lead-acid batteries. The dimensions of our lithium batteries are the same as the dimensions of lead-acid batteries, much lighter in weight.
3. LIGHT WEIGHT
Canbat lithium batteries are super lightweight due to our high energy density lithium cells. They are 60% lighter than sealed lead-acid batteries. Installing and moving the batteries is very simple.
4. HIGH DISCHARGE RATE
LiFePO4 batteries can be discharged to 100% and can also be discharged at a high rate of up to 1C for most models while maintaining a high energy capacity. Refer to the datasheets for specific specs.
5. LONG LIFE CYCLE.
LiFePO4 batteries can reach more than 3000 cycles, and its cycle life can reach more than 6 years.
12V 300Ah LiFePO4 Battery Detailed Information
| Item | Specification | Remark | |
| Battery Type | LiFePO4 (LFP) | ||
| Nominal voltage | 12.8V | 4S | |
| Nominal Capacity | 300Ah | 50P | |
| Energy Capacity | 3840wh | ||
| Deep of Discharge | 100% | ||
| Self-discharge rate | Residual capacity | ≤3%/Month | |
| Operation Voltage Range | 10V-14.6V | ||
| Charging voltage | 14.6V±0.05V | 3.65V / Cell | |
| Charging method | CC/CV | (Constant-current and -Voltage with Limited current | |
| charging current | 100A | 0 ~ +55ºC | |
| Maximum charging current | 100A | 0 ~ +55ºC Can be customized | |
| Continuous discharge current | 100A | -20 ~ +60ºC Can be customized | |
| Pluse discharge current | 250A | Can be customized | |
| Discharge cutoff voltage | 10V | 2.5V / Cell | |
| Outline dimension | L525*W269*T220mm | Length x wide x height | |
| Shell Material | ABS Case | ||
| System Weight | About 37KG | ||
| Internal resistance | ≤30mΩ | AC Impedance 1kHz | |
| IP Protection | IP54 | ||
| Cycle life | ≥2000 80%DOD | ||
| Warranty | 3 Year Product Warranty, 5Year Performance | ||
| Operating temperature Range | Standard Charge | 0 ~ +40ºC | |
| Standard Discharge | -20 ~ +60ºC | ||
| Monitoring Parameters | Over-charge/discharge protection, low/high,temperature warning and protection | ||
| Certificate | CE, ,MSDS and UN38.3 ROHS certification | ||
| Our LiFePO4 batteries are made to order so we can make any size you require with custom BMS to suit your application,If you require a specific BMS then please let us know details of your peak and continuous loads | |||

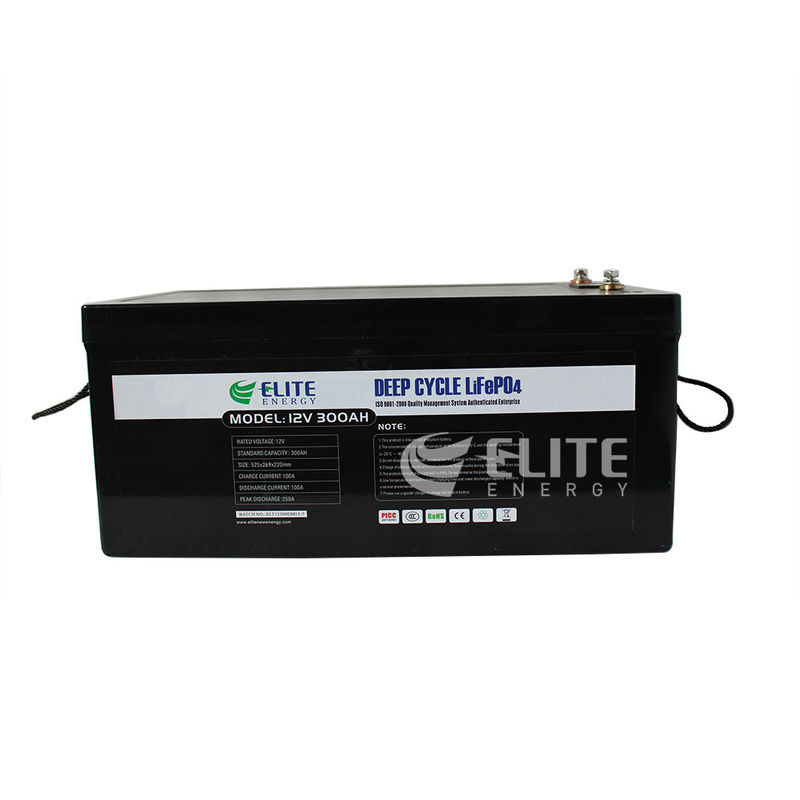

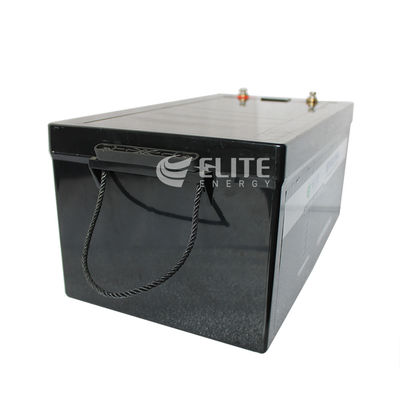

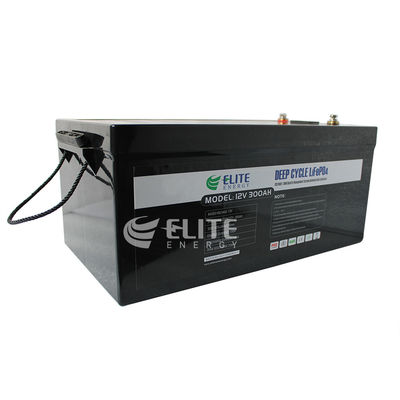

Appearance of 12V 300Ah Battery
Charge and Discharge Curves of 12V 300Ah Battery
Function of 12V 300Ah LiFePO4 Battery
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Application of 12V 300Ah LiFePO4 Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒Electric drill, electric saw, lawn mower and so on
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wireless
FAQ:
Q1. What is the biggest difference between your battery and other suppliers?
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q3: How about your warranty?
A: 3 years warranty
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
