Product Details:
|
| Specifictaion: | 12V 300Ah | Energy: | 3840Wh |
|---|---|---|---|
| Cell Type: | 32700 LFP Cell | Connection: | 4S50P |
| Material: | LiFePO4 | Cycle Times: | 3000-6000 Cycles |
| Retention Rate: | More Than 80% After 2000 Cycles | Self-discharge Rate: | Less Than 3% Monthly |
| Rechareable: | Yes | OEM/ODM: | Available |
| High Light: | 12V 300Ah RV LiFePO4 Battery,4S50P RV LiFePO4 Battery,12V 300Ah Lithium Battery |
||

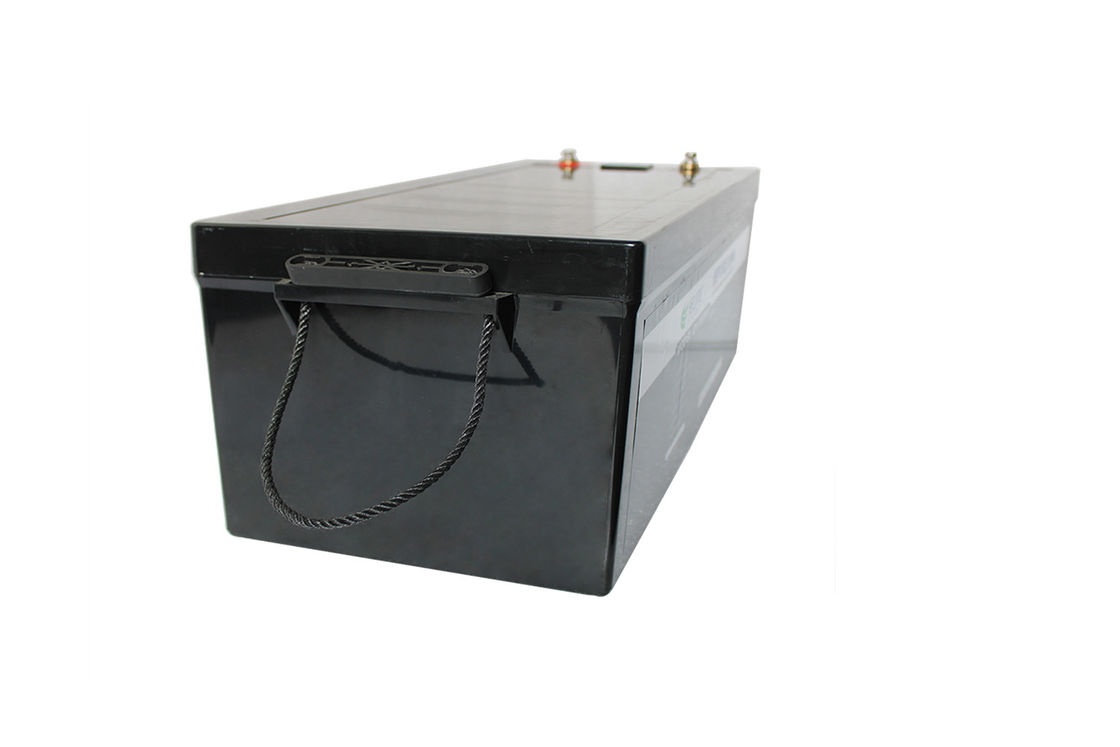

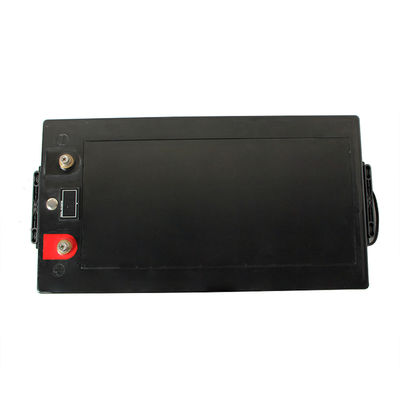

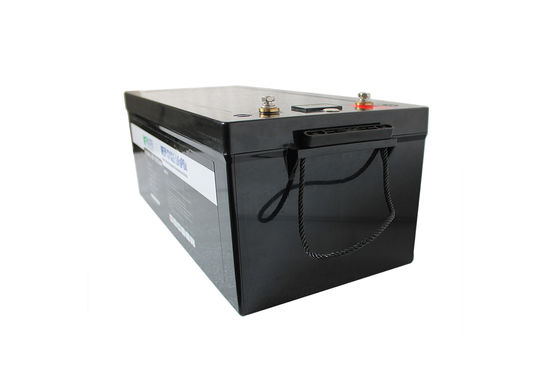

Rechargeable 12V 300Ah RV LiFePO4 Battery LiFePO4 Lithium Ion
12V 300Ah Rechargeable Lithium Ion Battery RV LiFePO4 Battery
12V 300Ah LiFePO4 Battery Parameter
|
Item |
Elite-300 |
|
Nominal Capacity |
300Ah |
|
Nominal Voltage |
12.8V |
|
Normal discharge current |
100A |
|
Maximum continuous current |
100A |
|
Max pulse instant current |
100A |
|
Discharge cut-off voltage |
10V |
|
Max charge voltage |
14.6V |
|
Charge current |
≤50A |
|
Battery housing |
ABS/Metal Case |
|
Charge temperature |
0ºC~45ºC |
|
Discharge temperature |
-20ºC~60ºC |
|
Humidity |
5%≤RH≤85% |
|
Size(L*W*H) |
525*240*220mm |
|
Weight |
<42kg |
|
Protection function |
Overcharge protection, Over discharge protection, Over current protection, Temperature protection, Balanced function |
Li-ion Battery Feature
1) Safety , environment friendly , pollution-free;
2) Long lifespan up to 3000-5000 cycle times;
3) 60% lighter than lead acid battery;
4) Fast charging&low self discharge;
5) Every battery are built-in BMS for protection;
6) 100% DOD, can be charged to 100% of the rated capacity;
7) High charging rate while maintaining high energy capacity
Lithium Battery BMS Function
> Over Charge Protection
> Over Discharge Protection
> Over Current Protection
> Over Voltage Protection
> Short Circuit Protection
> Over Temperature Protection
> Balance Functiion
Lithium Ion Battery Application
>> Electric Vehicles;
>> Solar/Wind Energy Storage System
>> UPS, Backup Power
>> Telecom Station;
>> Medical Equipment;
>> Home Energy Storage;
>> Lead Acid Replacement Battery;
Term of trade
>>> Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.
>>> Trade term: EXW, FOB ,CIF DDU, DDP are available.
>>> Production lead time: Usually take 30 working days.
>>> Packing: Carton or wooden case, OEM package is accepted.
>>> Shipping: Ship by express, air ,sea are optional.
