Product Details:
|
| Model Type: | LFP 12V 120Ah | Standard Voltage: | 12.8V |
|---|---|---|---|
| Charge Cut-off Voltage: | 14.6V | Discharge Cut-off Voltage: | 10V |
| Rated Capacity: | 120Ah | Energy: | 1536Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-discharge Rate: | <3% |
| Internal Resistance: | ≤10mΩ | OEM/ODM: | Available |
| High Light: | 540Ah Custom Lithium Ion Battery,12.8V Custom Lithium Ion Battery,ODM Marine Lithium Battery |
||
LFP Marine RV OEM ODM 12.8V 120Ah Custom Lithium Ion Battery
OEM Avaliable 12V 12.8V 120Ah LiFePO4 Lithium Battery for RV/Marine
Feature
1. Broad operation temperature range: -20---60 centigrade.
2. Small in size and light in weight: Compare with our battery , 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery. 1/2 weight of lead acid battery.
3. High Energy Density: In the same capacity, the weight of Fe battery is one third of VRLA. The volume of Fe battery is one half of VRLA.
4. Long cycle life: Charging and discharging more than 2000 times in condition of 100% DOD. Residual capacity is more than 80%.
5. Good Temperature Performance: LiFepo4 battery has good performance at different temperature, and could be used at -20~60.
6. High Power Output: 90% nominal capacity released at 1C rate discharge.
| Model Type | ELT-LFP-12V-120Ah |
| Energy | 1536Wh |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 120Ah |
| Recommend Charge Current | 20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 250A(10S) |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 58.4V charge current to 0.02C(CC/CV) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Cell&Method | 4S |
| Package | ABS Plastics |
| Dimension | 329*172*214mm |
| Weight(lbs./kg.) | 14.7kg |

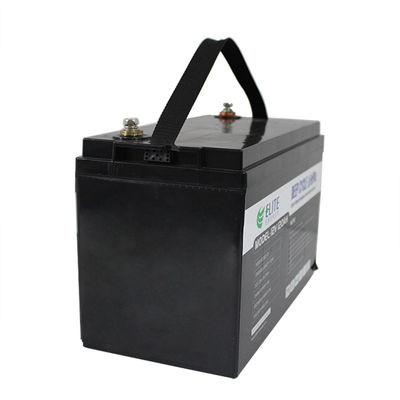

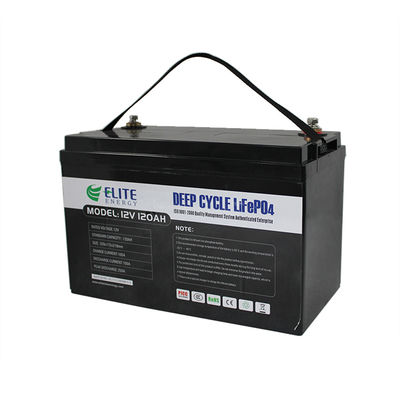

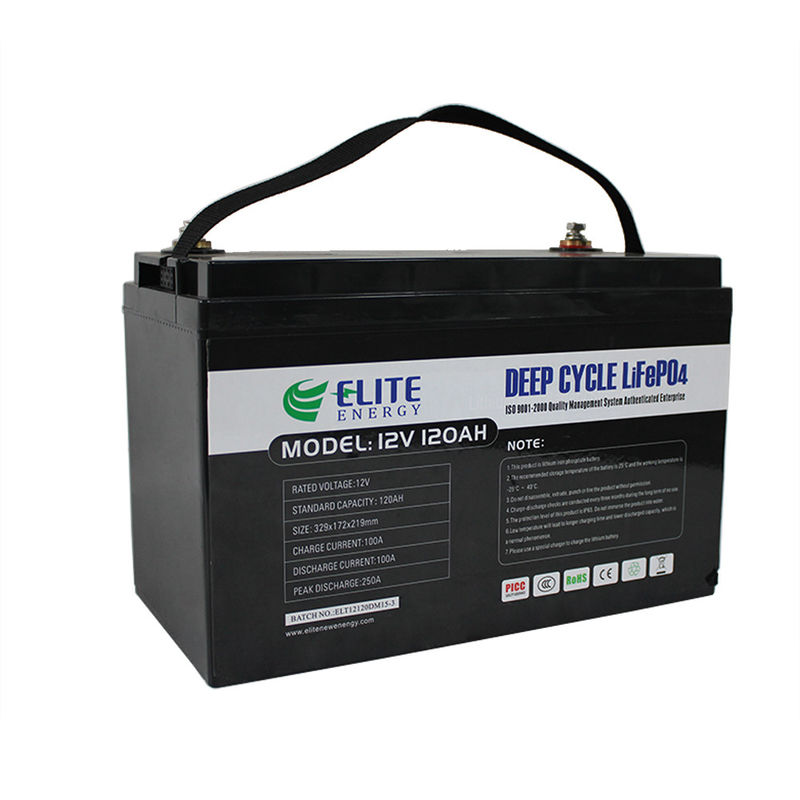

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Application of LiFePO4 Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒Electric drill, electric saw, lawn mower and so on
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wireless
Production Line
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
