Product Details:
|
| Capacity: | Lifepo4 Battery 12v 300ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 300Ah | Energy: | 3840Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | IP58 12v Lithium Deep Cycle Battery,IP58 12v Lithium Deep Cycle Battery,3840Wh lifepo4 battery 12v 300ah |
||

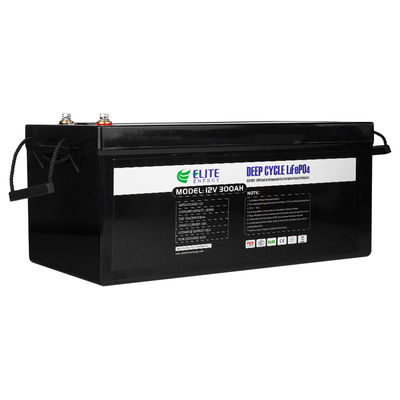

Light Weight 300Ah 12v Lithium Deep Cycle Battery Non Polluting
12V LiFePO4 Battery 12volts 300Ah Deep Cycle Lithium Li-ion Battery
Feature
1. Light weight: the volume of lithium iron phosphate battery with the same capacity is 2/3 of the volume of lead acid battery and 1/3 of the weight of lead acid battery;
2. Environmental protection: the battery is generally considered to contain no heavy metals and rare metals (nickel-hydrogen batteries contain), non-toxic, non-polluting, in line with European RoHS regulations, is an absolute green battery approved by RoHS.
3. Without memory effect: rechargeable batteries often work under full charged but no full discharged conditions, and the capacity is quickly lower than the rated capacity. This phenomenon is called memory effect. Such as Ni-MH, Ni-Cad batteries have memory, but lithium iron phosphate batteries do not have this phenomenon, no matter what state the battery is on, it can be charged or used at any time, no need to charge it under the situation of fully discharged. The parameters of 12V 300Ah battery were shown below:
| Nominal Voltage | 12.8V |
| Nominal Capacity | 300Ah |
| Energy | 3840Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current |
20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 250A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP58 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) |
525*220*269mm
|
| Weight(lbs./kg.) | 37kg |
| Display screen | Optional |
Product Images
