Product Details:
|
| Capacity: | 36V 30Ah | Nominal Voltage Voltage: | 38.4V |
|---|---|---|---|
| Rated Capacity: | 30Ah | Energy: | 1152Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| LED Indicator: | Yes | OEM/ODM: | Available |
| High Light: | ESS 36V LiFePO4 Battery,36V LiFePO4 Battery With BMS,38.4V 30Ah Lithium Battery |
||

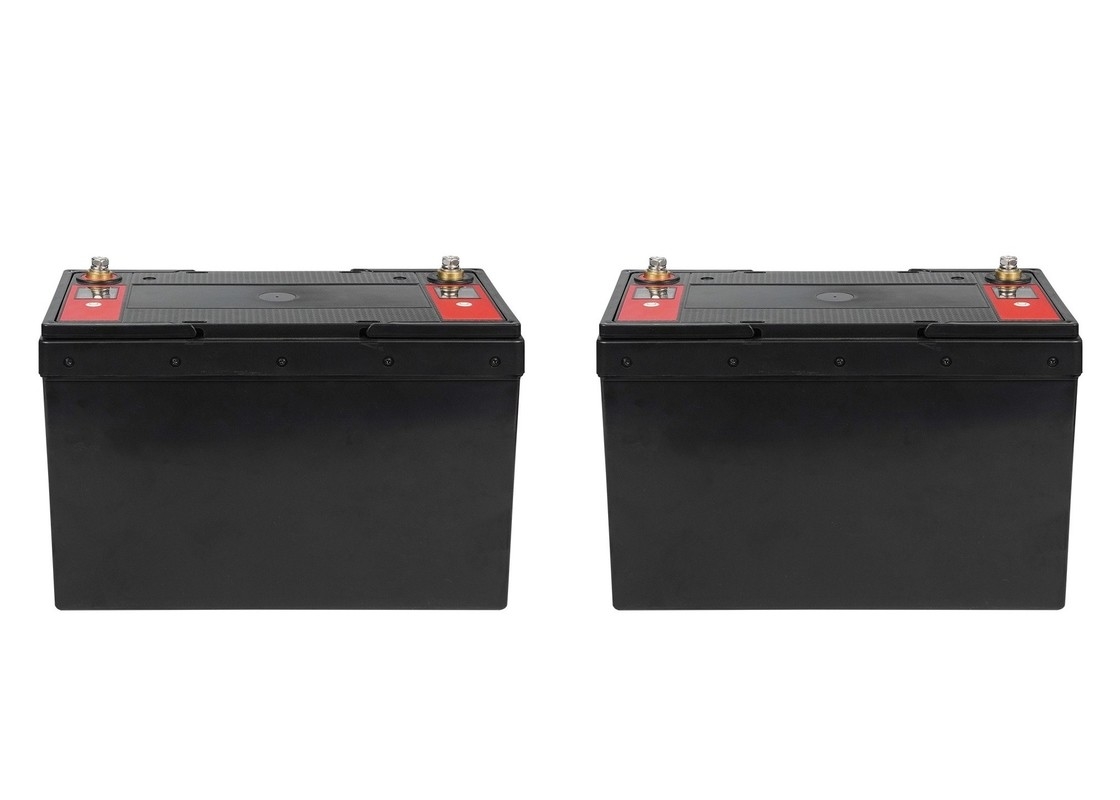

Rechargeable 36V LiFePO4 Battery 38.4V 30Ah Lithium Battery with BMS
Product Description
Feature
1. Lithium iron phosphate battery is with high energy density: lithium iron phosphate battery has high storage density, which has reached 460-600 Wh/kg at present, about 6-7 times higher than lead acid battery;
2. Lithium iron phosphate battery is without toxic material contained, which is environmental friendly.
3. Lithium iron phosphate battery is with long life span, whose cycle times can reach more than 3000-5000, with more than 6 years life span.
4. Lithium iron phosphate battery is with high storage density, which has reached 460-600 Wh/kg at present, about 6-7 times higher than lead acid battery.
|
Nominal Voltage |
38.4V |
|
Nominal Capacity |
30Ah |
|
Energy |
1152Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
43.8±0.2V |
|
Charge Mode |
0.2C to 43.8V, then 43.8V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
6A |
|
Max. Charge Current |
30A |
|
Max. Continuous Discharge Current |
30A |
|
Max. Pulse Current |
60A(10S) |
|
Discharge Cut-off Voltage |
30V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP54 |
|
Cell&Method |
12S |
|
Package |
ABS Plastic Case |
|
Dimensions(in./mm.) |
329*172*214mm |
|
Weight(lbs./kg.) |
14kg |
