Rechargeable 768wh 20Ah 36v Lithium Ion Battery With Built In BMS
Rechargeable 36V 20Ah LiFePO4 Lithium Li-ion Battery with Built-in BMS

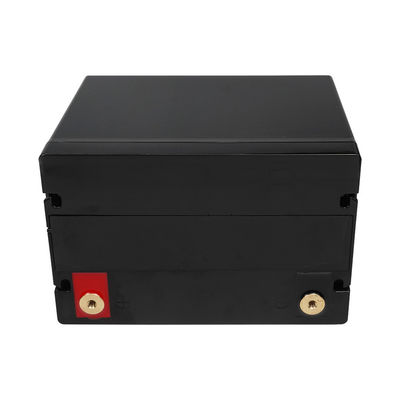

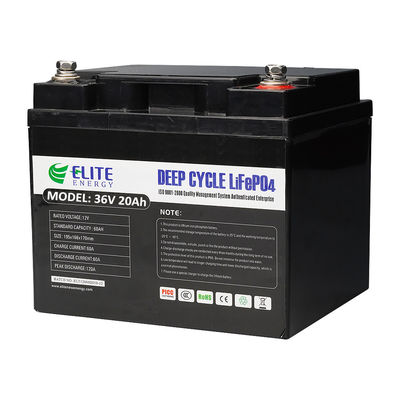

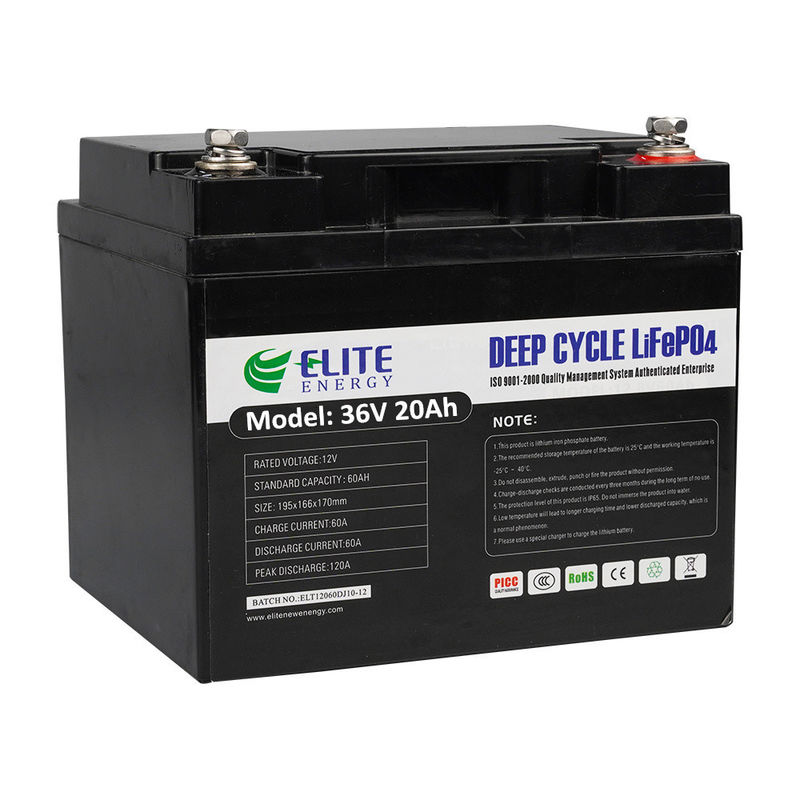

ELT-36V-20Ah-LFP Battery is a lithium battery pack developed independently for energy storage market by Elite, which has the characteristics of multifunction, low power consumption, high reliability and high cost performance. The dimension of the ELT-36V-20Ah-LFP Battery is 195*166*175mm.The main modules of ELT-36V-20Ah-LFP Battery including battery module and BMS module. Battery module is made of LFP prismatic cell. The function of BMS module is to monitor, diagnose, control and manage the battery voltage, temperature, current, fault and so on.
|Cycle Life||>3000 cycles@1C 100% DOD|
|Months Self Discharge||<3%|
|Efficiency of Chargefirstname.lastname@example.orgC|
|Efficiency of Discharge||96-99% @1C|
|Charge Cut-off Voltage||43.8±0.2V|
|Charge Mode||0.2C to 43.8V, then 43.8V charge current to 0.02C(CC/CV)|
|Recommend Charge Current||
|Max. Charge Current||20A|
|Max. Continuous Discharge Current||20A|
|Max. Pulse Current||40A(10S)|
|Discharge Cut-off Voltage||30V|
|Charge Temperature||0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity|
|Discharge Temperature||-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity|
|Storage Temperature||0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity|
|Water Dust Resistance||IP54|
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
