60Ah IP54 36V Lithium Ion Battery Pack For Energy Storage System

60Ah IP54 36V Lithium Ion Battery Pack For Energy Storage System

  • High Light

    IP54 36V Lithium Ion Battery Pack

    ,

    36v 60ah Lithium Battery

    ,

    IP54 Small Lithium Ion Battery Pack

  • Model
    LiFePO4 36V 60Ah
  • Energy
    2304wh
  • Rated Voltage
    38.4V
  • Rated Capacity
    60Ah
  • Application
    ESS, EV, Solar System
  • Cycle Span
    3000-5000 Cycles
  • Self-diacharge Rate
    <3%
  • Compact Desiged
    With Built-in BMS
  • OEM/ODM
    Available
  • LED Indicator
    Yes
  • Place of Origin
    Guangdong, China
  • Brand Name
    Elite Battery
  • Certification
    CE, UL, MSDS, UN38.3, MSDS
  • Model Number
    36V 60Ah
  • Minimum Order Quantity
    1 PCS
  • Price
    $159.99-$599.99/PCS
  • Packaging Details
    Carton box with pallet
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 PCS/Month

60Ah IP54 36V Lithium Ion Battery Pack For Energy Storage System

21kg IP54 36V Lithium Ion Battery Pack For Energy Storage System



36V 60Ah LiFePO4 Lithium Li-ion Battery Pack for Energy Storage System



Product Description

Product Profile

ELT-36V-60Ah-LFP Battery is a lithium battery pack developed independently for energy storage market by Elite, which has the characteristics of multifunction, low power consumption, high reliability and high cost performance. The dimension of the ELT-36V-60Ah-LFP Battery is 443*300*90mm.The main modules of ELT-36V-60Ah-LFP Battery including battery module and BMS module. Battery module is made of LFP prismatic cell. The function of BMS module is to monitor, diagnose, control and manage the battery voltage, temperature, current, fault and so on.



Nominal Voltage 38.4V
Nominal Capacity 60Ah
Energy 2304Wh
Internal Resistance ≤10mΩ
Cycle Life >3000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Charge Cut-off Voltage 43.8±0.2V
Charge Mode 0.2C to 43.8V, then 43.8V charge current to 0.02C(CC/CV)
Recommend Charge Current

12A

Max. Charge Current 60A
Max. Continuous Discharge Current 60A
Max. Pulse Current 120A(10S)
Discharge Cut-off Voltage 30V
Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP54
Cell&Method 12S
Dimensions(in./mm.) 443*300*90mm
Weight(lbs./kg.) 21kg



Product Images

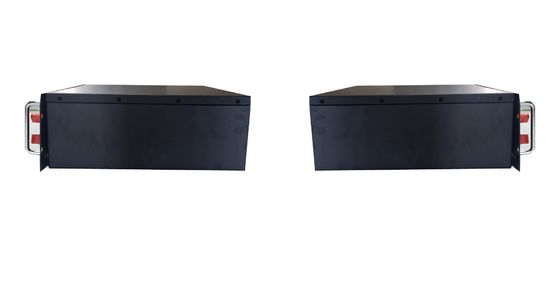

60Ah IP54 36V Lithium Ion Battery Pack For Energy Storage System 0

Product Advantages

1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.

2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.

3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..

4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.

5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.

6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.



Production Line

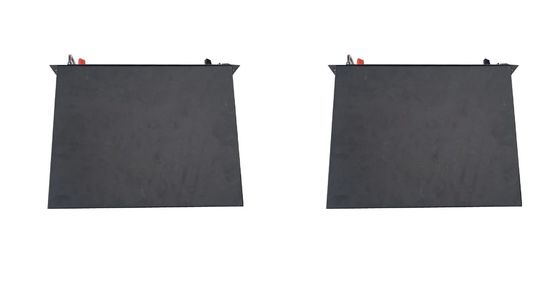

60Ah IP54 36V Lithium Ion Battery Pack For Energy Storage System 1



Packaging & Shipping



Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

Shipping: By air, by sea, by express, railway transportation and so on.



Q&A



1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
