Product Details:
|
| Capacity: | 51.2V 200Ah | Power: | 10240Wh |
|---|---|---|---|
| Self Discharge Rate: | ≤3% Per Month | Anode Material: | Lithium Iron Phospahte |
| Usage: | Household/Community ESS, UPS, Telecom Tower. | OEM/ODM: | Optional |
| Communication: | RS232/RS485/CAN | Retention Ratee: | ≥80% （2000 Cycles） |
| High Light: | Telecom Base 48V LiFePO4 Battery,10240Wh Lithium Ion Battery Pack,RS485 Lithium Ion Battery Pack |
||
48V 51.2V 100Ah Li-ion Battery Pack Telecom Lithium Ion Battery Backup LiFePO4 Battery
Telecom Battery Specifications
| Electrical Characteristics | Model | 51.2V 50AH | 51.2V 100AH | 51.2V 130AH | 51.2V 200AH | ||||
| Energy | 2560Wh | 5120Wh | 6656Wh | 10240Wh | |||||
| Battery Type | LiFePO4 Battery | ||||||||
| Internal Resistance | ≤10mΩ | ||||||||
| Cycle Life | >4000 cycles@1C 100% DOD | ||||||||
| Months Self Discharge | <3% | ||||||||
| Efficiency of Charge | 100%@0.5C | ||||||||
| Efficiency of Discharge | 96-99% @1C | ||||||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | |||||||
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | ||||||||
| Recommend Charge Current | 20-50A | 20-50A | 20-50A | 20-50A | |||||
| Max. Charge Current | 50A | 100A | 100A | 100A | |||||
| Standard Discharge | Max. Continuous Discharge Current | 50A | 100A | 100A | 100A | ||||
| Max. Pulse Current | 60A,@<10s | 110A,@<10s | 105A,@<10s | 110A,@<10s | |||||
| Discharge Cut-off Voltage | 40V | ||||||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | |||||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||||
| Water Dust Resistance | IP21 | ||||||||
| Mechanical | Package | Metal case | |||||||
| Dimensions(mm.) | 483*400*133 | 483*500*177 | 483*558*177 | 483*500*267 | |||||
| Weight(kg.) | 30 | 50 | 56 | 83 | |||||
| Display screen | Optional | ||||||||
| Bluetooth | Optional | ||||||||
| Parallel Connection | Optional | ||||||||
| Communication | RS485/CAN | ||||||||
| Others | Certification | CE, MSDS, UN38.3 | |||||||
| Warranty | Standard 3 years, 5+ years upon request | ||||||||
| OEM | Support for customized dimension, current, logo and so on. | ||||||||

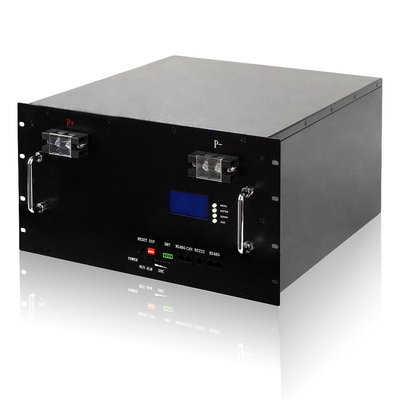

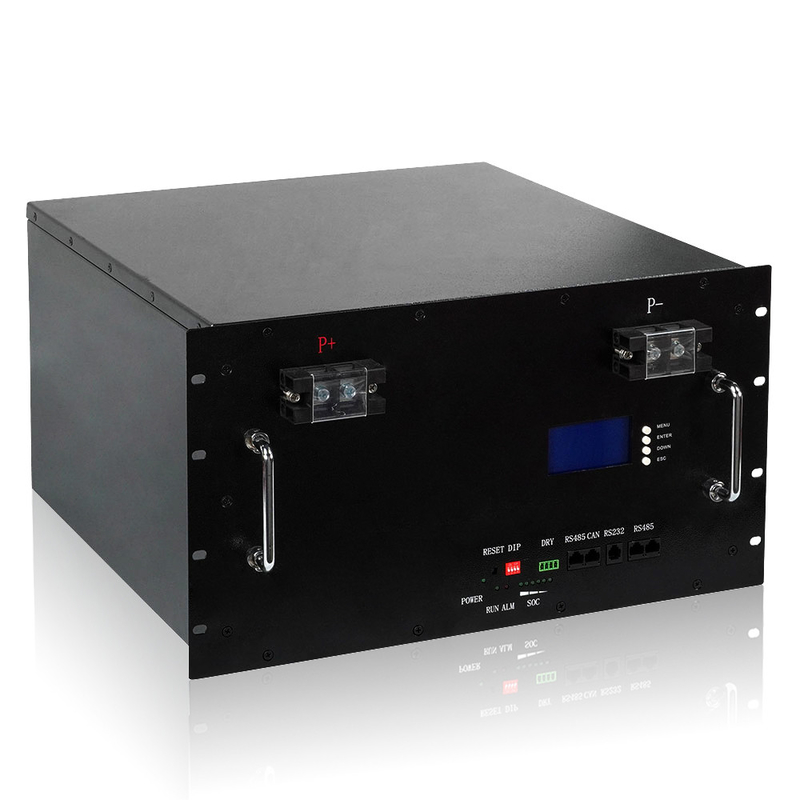

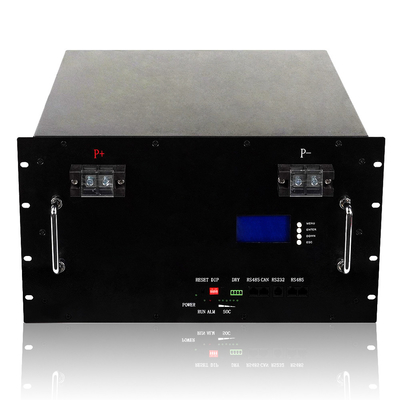

Li-ion Battery Picture
48V 200Ah Battery Advantage
1. Safe
① No potential acid and envioronment friendly.
②No explosive gas affects your safety.
③Much safer with multiple built-in protections.
2. Free Maintenance
①No daily maintenance work and costs.
②No need to endure the acid spills, corrosion, sulfation or contamination.
③No releasing explosive gases when charging.
3. Cost-Effective
①No maintenance costs.
②Saving up to 70% expenditures for you in five years.
③More than 4000 cycle times and 10 years design life,
4. Stable
①3 year warranty.
②Less self-discharge rate
③Withstand a very wide range of temperatures.
Compatibility
①Support parallel connection
②Convenient and easy operation
③Designed to suit telecome station, backup,power, UPS and so on.
Why Choose Us?
>- Over 10 years experience in the lithium battery industry.
>- Self assembled product battery, strictly quality control.
>- Professional R&D team , provide technology support.
>- Comprehensive services, save your time and cost.
>- OEM/OEM accepted to meet all your demand.
Package&Delivery
1. Package: Usuall the battery will be packed by carton case or wooden case.
2. Delivery: It will take about 20-25 days for sample order and 30-35 days for bulk order.
For the shipping time, it will depends on the destination and shipping ways.
FAQ
Q1: What is a lithium battery used for?
A: Lithium battery use for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreational vehicle power, golfcart,reliable and light-weight marine,solar power storage, surveillance or alarm systems in remote locations and so on.
Q2: Do you have MOQ?
No limitation, welcome your trail order.
Q3: Is it possible to OEM customize the battery pack and the packageing with our logo ?
Yes,OEM/customizing is warmly welcome for bulk order. Please feel free to contact me with your requirements.
Q4: How do I track my shipment?
After we deliver your goods, we will send you the tracking NO. once your goods has been shipped.
Q5: What is your Shipping way?
A: For sample order , we could choose ship by express or by air to save the sample testing time. For bulk order, it will be more economical to ship by sea.
