Product Details:
|
| Voltage: | 48V/51.2V | Capacity: | 51.2V 100Ah |
|---|---|---|---|
| Power: | 5120Wh | Self Discharge Rate: | ≤3% Per Month |
| Anode Material: | Lithium Iron Phospahte | Usage: | Household/Community ESS, UPS, Telecom Tower. |
| OEM/ODM: | Optional | Communication: | RS232/RS485/CAN |
| DOD: | ≥80% （4000 Cycles） | Warranty: | 5 Years |
| High Light: | 5120Wh 48V LiFePO4 Battery,48V 100Ah LiFePO4 Battery Pack,48V 100Ah Lithium Ion Battery |
||

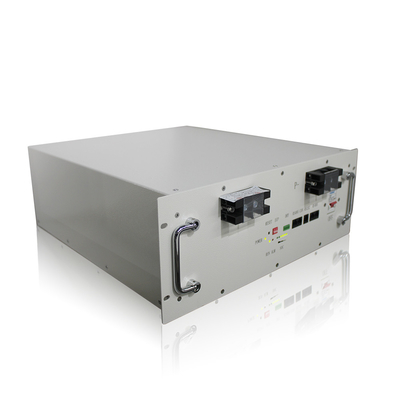

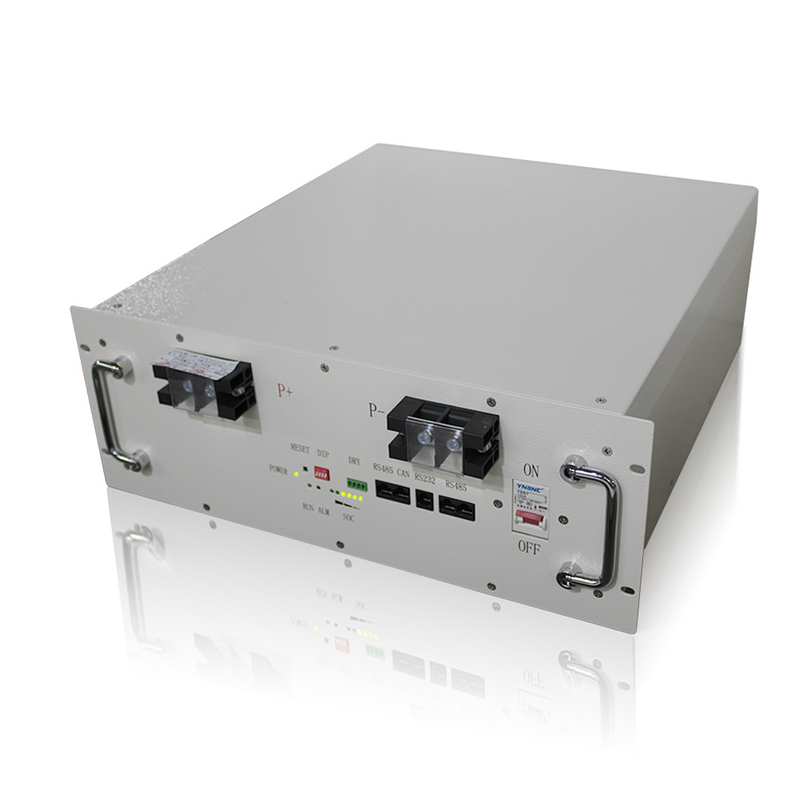

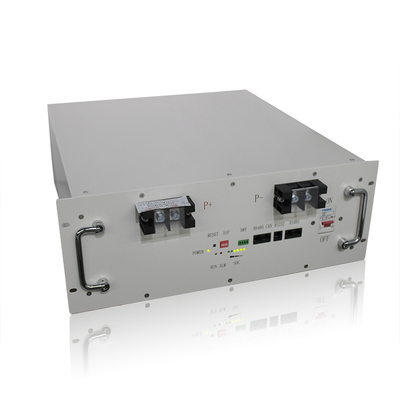

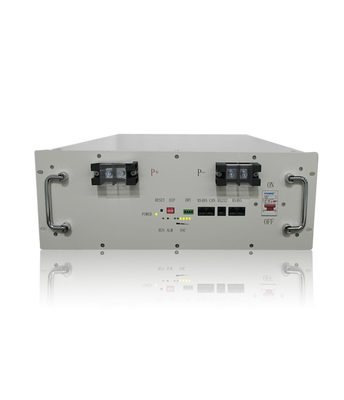

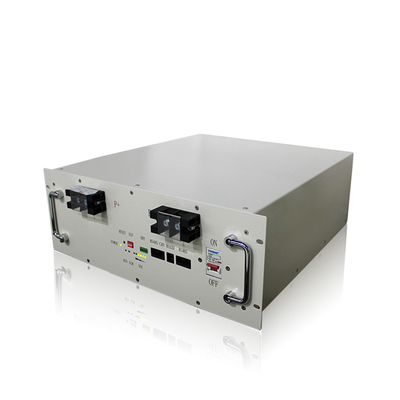

5120Wh 100Ah 48V LiFePO4 Battery Pack Lithium Ion For Telecom UPS ESS
48V 51.2V 100Ah LiFePO4 Battery Pack Lithium Ion Battery For Telecom UPS ESS
48V LiFePO4 Battery Pack Parameters
| Model | ELT-48100 | ELT-48120 |
| Nominal Voltage(V) | 51.2V | 51.2V |
| Nominal Capacity(Ah) | 100 | 120 |
| Dimension(mm) | 578*410*198 | 578*410*198 |
| Weight(Kg) | 45 | 50 |
| Discharge Cut-off Voltage (V) | 40V | 40V |
| Charge Cut-off Voltage(V) | 58.4V | 58.4V |
| Charge / Discharge Current (A) |
20-50 (Recommended) 100(Max) 110 (Peak@5s) |
20-50(Recommended) 100 (Max) 110 (Peak@5s) |
| Communication Port | RS232 .RS485 .CAN |
RS232 .RS485 .CAN |
| Working Temperature/ºC |
0~50 |
0~50 |
| Humidity |
5%~85% |
5%~85% |
| Design life |
10+ Years (25 /77ºF) |
10+ Years (25 /77ºF) |
| Cycle Life |
>6000, 25ºC |
>6000, 25ºC |
| Authentication Level |
UL / TÜV / CE / UN38.3 |
UL / TÜV / CE / UN38.3 |
|
Single string quantity(pcs) |
15 | 15 |
Lithium Battery Details
Features
Cycle Life
Offers up to 4000 cycle life and about 6-8 times life cycle compare to lead acid battery
Lightweight
About 40% of the weight of a comparable lead acid battery and save the transportation and labor cost.
Safety
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Working Range
LiFePO4 battery still working well with working temperature range environment from -20℃~60℃.
Applications
Elite LiFePO4 battery are widely use for for marine, boat, RV, caravan, trailer, golf cart, electric car, AGV, forklift, electric wheelchair, telecom base, telecom tower, for home solar storage system, backup power system, UPS etc.
Advantage
R&D
Elite has been in the lithium-ion battery industry for more than 10 years. Most of Elite engineer are trained and experienced. We support Bluetooth monitor function , RS485/232, CANbus,ect.
OEM & ODM
Elite support OEM & ODM services of LiFePO4 battery for different applications. Customized logo and label are accepted.
Certification
Elite LiFePO4 battery are verified with ISO 9001, ISO14001, CE, UN38.3, MSDS... ... We can also help customer apply UL, CSA,SASO, BIS, SONCAP.. ...
Service
Professional service and technical team , supply 3-5 years warrant of the battery pack and 24 hours on line technology support.
Q: Are you a factory or trading company?
A: We are factory manufacturer and supplying OEM/ODM service.
Q. Do you have any MOQ limit for batteries?
A: Low MOQ, 1pc for sample checking is available
Q: Can we print my logo on the product?
A. Sure. Please inform us formally before our production and confirm the design firstly.
Q: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q: What about the lead time?
A. Sample needs 15-20 days, mass production time needs 25-30 weeks, it depends on order quantity.
