Product Details:
|
| Model Type: | LFP 12V 25Ah | Standard Voltage: | 12.8V |
|---|---|---|---|
| Charge Cut-off Voltage: | 14.6V | Discharge Cut-off Voltage: | 10V |
| Rated Capacity: | 25Ah | Energy: | 320Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-discharge Rate: | <3% |
| Internal Resistance: | ≤10mΩ | OEM/ODM: | Available |
| High Light: | 25Ah LiFePO4 Battery Pack,12.8V LiFePO4 Battery Pack,ESS Portable Li Ion Battery |
||
Wholesale LiFePO4 Battery Pack 12V 12.8V 25Ah Lithium Ion Battery For ESS
Product Description
| Technical Specifications - 12.8V 25Ah LifePO4 battery | ||
|
Unit Details |
Nominal voltage | 12.8V |
| Nominal capacity | 25Ah | |
| Dimensions | 181*76*166mm L*W*H | |
| Cycles Lifepo4 | up to 3000@100% DOD | |
| Weight | 3.2kg approx | |
| Case Style: | ABS Case | |
| Cells Type | New, High Quality Grade A, LiFePO4 cell | |
|
BMS Details |
Working Voltage | 10V - 15.6V |
| Built -in BMS | YES | |
| Charge cut-off voltage | 15.6V ±0.1 | |
| Charge mode | CC/CV : Constant Current / Constant Voltage | |
| Max Continuous charge | 20A | |
| Max Continuous discharge current | 20A max | |
| Bluetooth | Optional | |
| Discharge cut-off voltage | 10V | |
| Certification | CE, MSDS, UN38.3 etc | |
| Warranty | 3 Years warranty, In use process, if the product quality problems will be free replacement parts. Our company will replace any defective item free of charge. | |

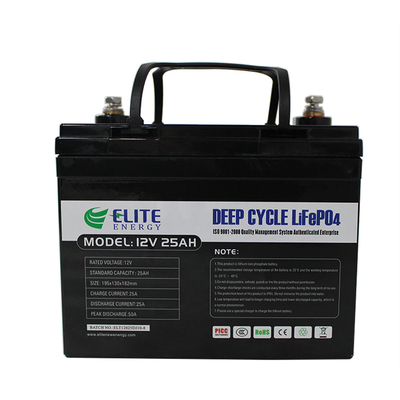

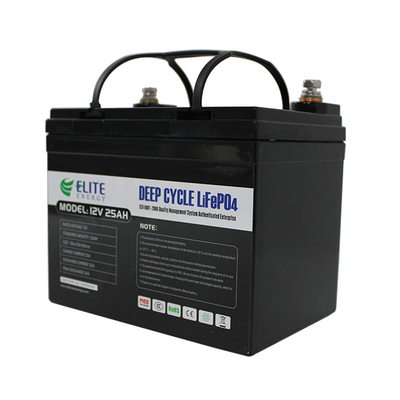

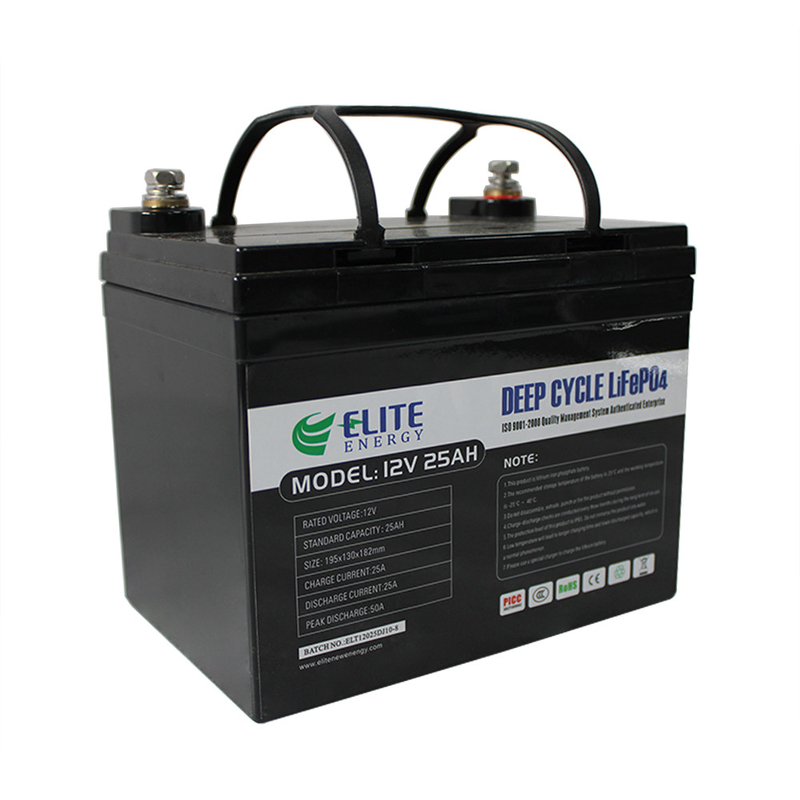

Product Images
LFP Battery
This 12.8V 25Ah LFP battery can be perfect substitution to AGM/GEL battery, PKE also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements. Comparing with AGM/GEL lead acid batteries, Li-ion (LiFePO4) batteries pack has the following features:
1. Long life: LiFePO4 battery has a long life cycle which is more than 5000 times and its life span is up to 10 years.
2. Light in weight: Li-ion (LiFePO4) substitution battery is only approx 1/3 of lead acid battery in weight.
3. Wide working temperature: LiFePO4 battery has wide working temperature range of -20°C ~ 60°C.
4. Environmental friendly: LiFePO4 does not contain any harmful heavy metal elements, it is green, non-toxic, pollution-free.
5. Bulit-in BMS: Eight smart protection, safety in operation at any applications.
Elite Advantages
1. Mature pack technique
Elite possesses unique pack technique to protect the battery cell well and longer the expected battery pack lifespan.
2. Professional technical team
Elite’s R&D technical team has more than 10 year's work experience and done many customized project successfully.
3. Safety certification guarantee
Most LiFePO4 batteries have passed the international certification such as CE, MSDS, UN38.3,etc.
4. Experienced sales team:
Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Perfect after-sales service
Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
Q: What's your main products?
A: Elite supply all kinds of 12V 24V 36V 48V and powerwall batteries and alaso support OEM.
Please feel free to contact us with your demand.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How about you payment and delivery items?
A: Payment items: Usually By T/T, 20% for deposit, and balance all before shipment.
For small amount, we also accept payment via PayPal, Western Union.
Q: How to solve the quality problems after sales?
(1) Take photos & videos of the problems and send to us.
(2) Send back the physical problem battery by express to us.
(3) Engineer will analyze the defective battery within 2 working day.
(4) 3 Year Warranty after leaving our factory, our defect rate is under 1%,we'll repaired or replaced the battery for free if non-human factor quality problems be confirmed.
