Product Details:
|
| Model Type: | 14.8V 67.6Ah | Energy: | 1000Watt |
|---|---|---|---|
| Nominal Voltage: | 14.8V | Rated Capacity: | 67.6Ah |
| Self-discharge Current: | ≤10uA | Application: | Outdoor Power Supply |
| Charger: | With Self-contained Charger | Material: | Li Ion |
| OEM/ODM: | Avaliable | Rechargerable: | Yes |
| High Light: | 1KW Portable Li Ion Battery,ODM Portable Li Ion Battery,1KW Lithium Battery Pack |
||

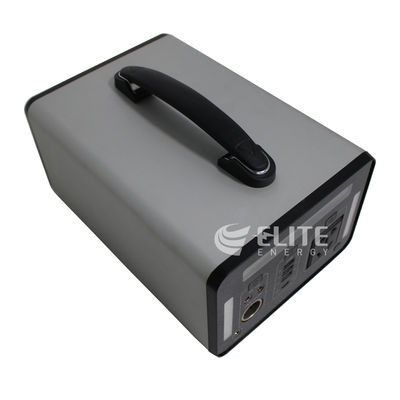

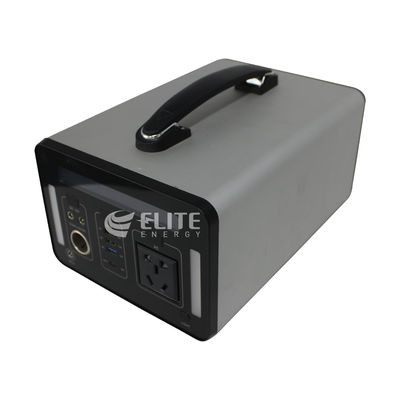

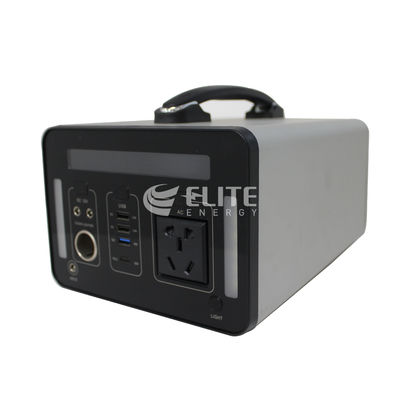

14.8V 67.6Ah 1KW Portable Li Ion Battery With Self contained Charger
Portable Li Ion Battery 14.8V 67.6Ah 1000Watt Lithium Battery Pack
Product introduction
A portable multi-functional energy storage bag based on lithium-ion battery, which output USB, Type-C, DC, AC, supports common power interface, common voltage range. Covering almost all kinds of small and medium-sized digital equipment, household appliances and on-board emergency appliances.
It is an indoor-outdoor multi-purpose power supply which provides backup power for outdoor travel, frequent power outages, no power area. It can even be used to store energy from the sun for a long time in areas outside the city.
Functions
▶ Charged by Solar energy or municipal electricity
▶ Covers 99% USB charging device (mobile phone, pad, camera)
▶ Providing USB QC3.0 port which supports QC fast charge protocol (mobile fast charge)
▶ Providing TYPE-C, 60W, PD protocol, directly adapts to PD protocol laptop power supply
▶ Providing DC 12V car cigarette lighter interface, which can supply power for car emergency start, car air pump and so on
▶ DC 12V output port is provided for outdoor charging of drones, RC airplanes, etc.
▶ AC 110V or 220V port can supply power to most small and medium-sized household appliances (TV, electric fan, indoor lighting)
▶ Built-in LED lighting, providing four modes of low brightness, high brightness, SOS, and flash.
Lithium Ion Portable U1000W Outdoor Power Supply Battery Pack
Battery Specification
| ELT POWER‐ 1000W1434 | |
| Battery Spec. | 14.8V 67.6Ah 1000Wh |
|
Battery pack self discharge current |
≤10uA |
| Adapter charge | 120Wmax(13.5V-35V), efficiency 98% |
| Photovoltaic MPPT charging | 120Wmax(13.5V-35V), efficiency 98% |
| USB-QC3.0 | 5-12V 18W |
| TYPE C-PD | 5-20V 60W |
| DC5.5 | 12V 5A |
| AC | 110V or 220V |
| Car cigarette lighter | 12V 10A |
| LED | 5-10W |
| Over-discharge protection | 12V±0.3V |
| Over-charge protection | 16.8V |
|
discharge over temperature protection |
65℃ |
|
Charge over temperature protection |
45℃ |
| Over current protection | 60A(<1S) |
| Short circuit protection | 200A(<2mS) |
| Weight | 8.5kg |
|
(L×W×H) Size |
200*290*155 |
| Color |
Black/Silver/Gold |
Battery Applications
| Device | Time |
| 5V Mobile Phone | >100 Times |
| LED Light 12V 5W | >200 Hours |
| Desk computer | >6 Hours |
| 13 Inch PC | >20Hours |
| 50W Fan | >16Hours |
| 32 Inch LCD TV | 10-12 Hours |
| 20W Energy saving lamp | >48Hours |
