Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4

Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4
Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4
Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4 Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4 Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4 Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4

Large Image :  Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4

Product Details:
Place of Origin: Guangdong, China
Brand Name: Elite Battery
Certification: CE, UL, MSDS, UN38.3, MSDS
Model Number: 12V 25Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $9.99-$89.99/PCS
Packaging Details: Carton box with pallet
Delivery Time: 30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000 PCS/Month

Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4

Description
Model: LiFePO4 12V 25Ah Energy: 320Wh
Rated Voltage: 12.8V Rated Capacity: 25Ah
Application: ESS, EV, Solar System Cycle Span: 3000-5000 Cycles
Compact Desiged: With Built-in BMS Self-diacharge Rate: <3%
Bluetooth: Optional OEM/ODM: Available
High Light:

12V Lithium Battery Pack

,

LiFePO4 Lithium Battery Pack

,

ABS Case Portable Li Ion Battery

 Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4 Battery





 Battery Parameter



Nominal Voltage 12.8V
Nominal Capacity 25Ah
Energy 320Wh
Internal Resistance ≤10mΩ
Cycle Life >3000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Charge Cut-off Voltage 14.6±0.2V
Charge Mode 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV)
Recommend Charge Current

5A

Max. Charge Current 25A
Max. Continuous Discharge Current 25A
Max. Pulse Current 50A(10S)
Discharge Cut-off Voltage 10V
Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP54
Cell&Method 4S
Package Plastic ABS case
Dimensions(in./mm.) 195*130*182mm
Weight(lbs./kg.) 3.4kg
Display screen Optional



Product Description



1. ELT-12V-25Ah-LFP Battery is a lithium battery pack developed independently for energy storage market by Elite, which has the characteristics of multifunction, low power consumption, high reliability and high cost performance.



2. The dimension of the ELT-12V-25Ah-LFP Battery is 181*76*166mm, about 3.2Kg, small and lightweight, support series and parallel connection.



3.The main modules of ELT-12V-10Ah-LFP Battery including battery module and BMS module. Battery module is made of LFP 32700 cell. The function of BMS module is to monitor, diagnose, control and manage the battery voltage, temperature, current, fault and so on.

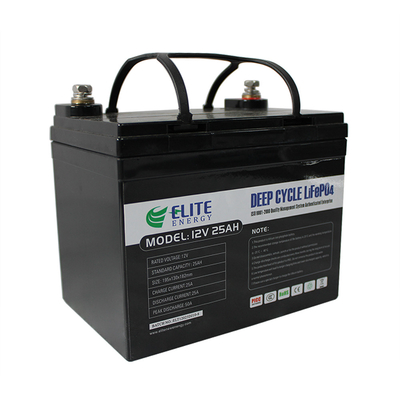

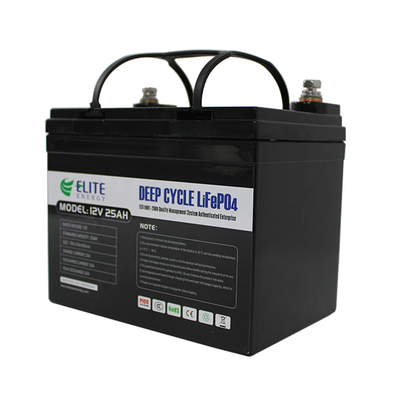

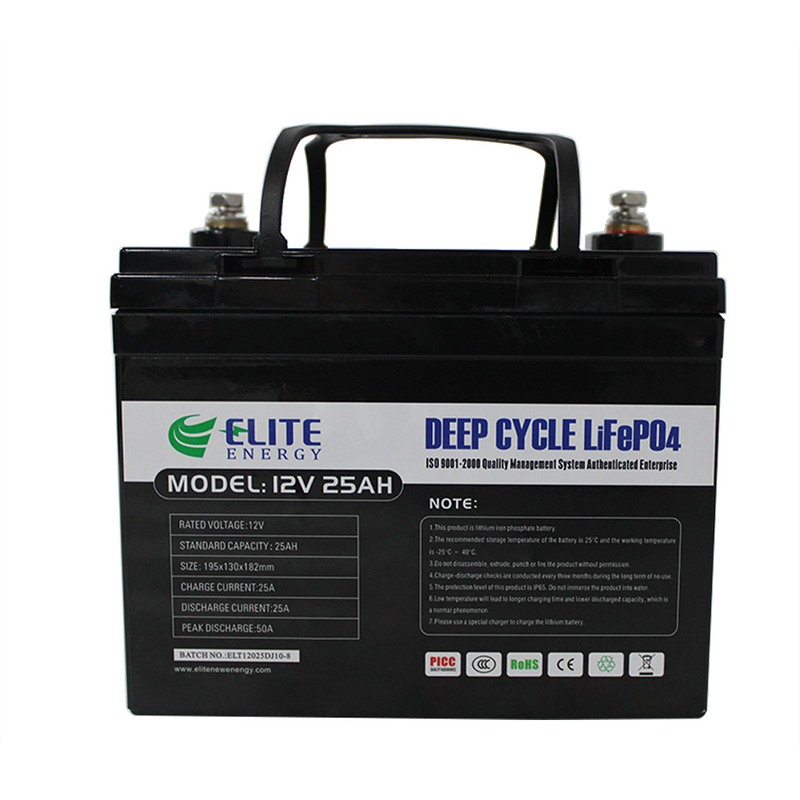

Product Images

Lightweight ABS Case Lithium Battery Pack 12V 25Ah Li Ion LiFePO4 0

We promise

1.All products will be tested 100% before shipment to ensure that the product does not have any quality problems.

2.We guarantee that within 3 years from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Precautions

>-- If the battery leaks or smells, move it away from open fire. The battery should be used after fully charged in the first use.

>-- If the battery pack smells, fevers, is out of shape, color changes or any other abnormal phenomena which the battery can't be used, if the battery is being charged or used, please take it out of the charger or electrical equipment.

>-- If the battery leaks and the electrolyte get into the eye, do not rub eye. Instead, rinse eye with clean water, and seek medical attention immediately. *Temperature will influence discharge capacity, if the temperature exceeds standard environment temperature(25±5°℃), discharge capacity will reduce.
