Product Details:
|
| Model: | LiFePO4 12V 7Ah | Energy: | 89.6Wh |
|---|---|---|---|
| Rated Voltage: | 12.8V | Rated Capacity: | 7Ah |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | Bluetooth 12V Lithium Iron Battery,7Ah Solar Lithium Iron Battery,IP54 Lithium Iron Battery |
||

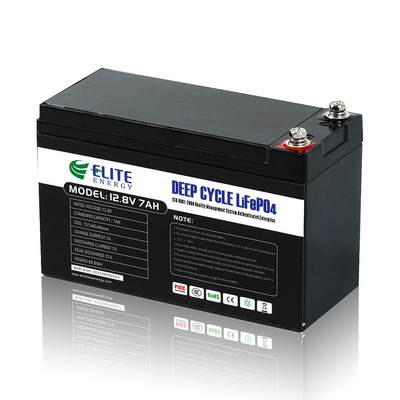

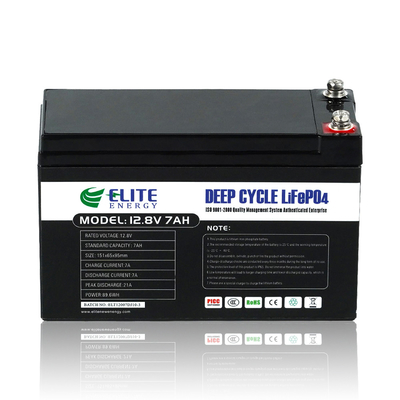

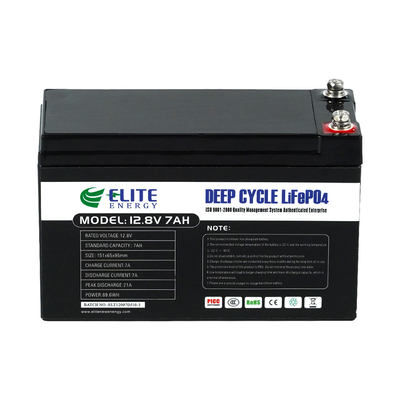

Factory Supply 12V Li-ion Battery Pack 12V 7Ah Lithium Iron Battery Solar LiFePO4 Battery
| Nominal Voltage | 12.8V |
| Nominal Capacity | 7Ah |
| Energy | 89.6Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current |
1.4A |
| Max. Charge Current | 7A |
| Max. Continuous Discharge Current | 7A |
| Max. Pulse Current | 14A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 151*66*95mm |
| Weight(lbs./kg.) | 0.95kg |
| Display screen | Optional |
Battery Details
LiFePO4 Battery Advantages
Econimical Battery Pack
Deep cycle lithium iron batteries have exceptional longevity, and feature cost effective.
Multiple applications
The LFP battery can be connected in series (up to 4) or in parallel(up to 2). Perfect for power station camping, marine, RV, campers, golf cart, medical devices, motorhomes & electric mobility scooter, off-road and off-grid applications!
Lightweight
LiFePO4 battery is lighter than lead acid battery with the same capacity.! With no acid in the battery, you're able to safely mount in any position.
Built-In Smart BMS
The Li-ion battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in temperature protection function,
Qualified
We test every batteries before we ship them out and all of our batteries come with an industry-leading 10 years service life. We believe you should be as confident in your battery as we are.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Notice
1. Don't near the hot source and don't under the sunshine.
2. Don't charge in the sealed container.
3. No short circuit. It should be the additional charge if you don't use, and a single charge per three months,
4. Don't store in the space of acid gas.
5. You should be careful and regular check when using the battery. To avoid the battery don't work. You should change the battery
if the capacity is not full or has been damaged, especially after one year using.
6. Don't put the battery in the fire, or it will explode.
