Product Details:
|
| Capacity: | 48V 50Ah | Voltage Range: | 37.5V-54.75V |
|---|---|---|---|
| Rated Capacity: | 50Ah | Usage: | Solar Energy Power Supply, Electric Vehicles |
| Retention Ratee: | ≥80% （2000 Cycles） | Self Discharge Rate: | ≤3% Per Month |
| Anode Material: | LiFePO4 | Cycles: | 4000-6000 Times |
| OEM/ODM: | Available | ||
| High Light: | 50Ah 48V LiFePO4 Battery Pack,ODM 48V LiFePO4 Battery,IP54 48V Rechargeable Battery Pack |
||
OEM ODM 50Ah 48V LiFePO4 Battery Pack For Rechargeable Solar Panels
48V Rechargeable Solar Panels 48V 50ah Lithium LiFePO4 Battery Pack
Energy Storage IP54 Deep Cycle Li-ion 48V 50Ah BMS Battery
Features
* Longer Cycle Life, cycle life up to 3,500 times, 5 times that of ordinary lead-acid batteries. Help reduce battery replacement costs and overall costs.
* Lighter weight, high density capacity, 3 times the capacity of lead-acid batteries under the same volume.
* Higher Power, delivers twice power of lead acid battery, even high discharge,while maintain high energy capacity.
* Wider Temperature Range:-20ºC~60ºC
* Super safety performance, Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
* Complete BMS function, powerful protection, with over charge, over discharge, over current, over temperature and Short circuit protection.
* Intelligent monitoring, the unit cell can be monitored from time to time, support parallel function, support up to 16 sections.
* Balanced function ensures consistent battery balance per cell and maximizes battery life.
* Wide application area, data center , telecommunication , solar/wind energy storage system , UPS, Inverter and backup power, electrical vehicles and so on.
48V 50Ah LiFePO4 Battery Specification
| MODEL | ELT4850-50 with BMS | |
| Electrical Characteristics | Battery type | LiFePO4(LFP) |
| Rated voltage | 48V | |
| Rated Capacity | 50AH | |
| Energy | 2400Wh | |
| Internal Resistance | ≤10mΩ | |
| Cycle Life | ≥3500 cycles @ 80% DOD, 25ºC, 0.2C ≥3000 cycles @ 80% DOD, 25ºC, 1C |
|
| Design Life | ≥10 years | |
| Months Self Discharge | ≤3%, @35ºC | |
| Efficiency of Charge | ≥98% | |
| Efficiency of Discharge | ≥99% @ 0.2C ≥96% @ 1C |
|
| Charge | Charge Cut-off Voltage | 54.75V±0.1V |
| Charge Mode | 0.5C to 54.75V, then 54.75V charge current to 0.01C (CC/CV) |
|
| Charge Current | 25A | |
| Max. Charge Current | 50A | |
| Continuous Current | 50A | |
| Limit charge current | 10A/20A Optional | |
| Discharge | Max. Continuous Discharge Current |
50A |
| Discharge Cut-off Voltage | 37.5V±0.2V | |
| Environmental | Charge Temperature | -5ºC~60ºC (Under 0ºCwith reduced charge current) |
| Discharge Temperature | -20ºC~60ºC (Under 0ºCwork with reduced capacity) |
|
| Storage Temperature | -40ºC~55ºC@ 60%±25% relative humidity | |
| Operating Humidity | 20-90% (No condensation ) | |
| Mechanical | Case | Iron(Insulation painting) |
| Output Interface | Terminal block | |
| Protective function | Over charge, Over discharge, Over current, Over temperature, Short circuit |
|
| Dry contact | YES | |
| SOC Light | No | |
| Weight Net weight(kg) | 30.00 | |
| Dimension L*W*H(mm) | 430*237*203mm | |

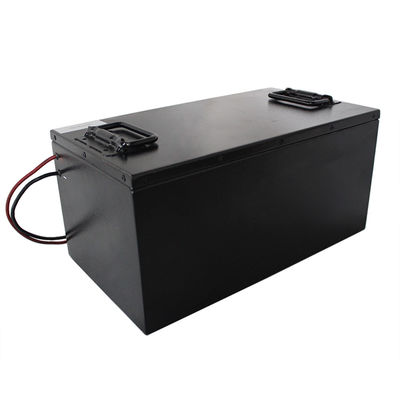

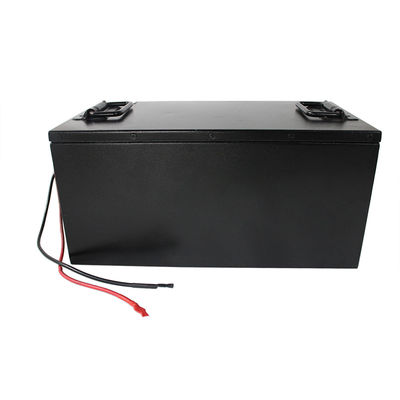

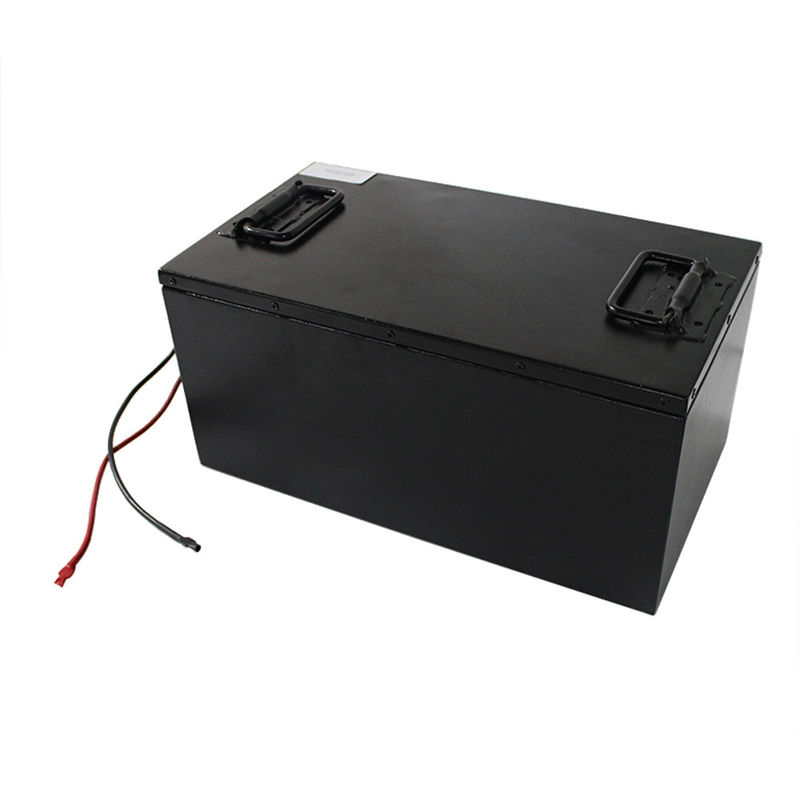

48V/50Ah LiFePO4 Battery Image
Application of 48V 50Ah LiFePO4 Battery
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
Advantages of 48V 50Ah LiFePO4 Battery
Long Life Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
LIFECYCLES (BATTERY LIFESPAN)
Up to 100% capacity for 3,000 cycles in recommended conditions. The typical SLA has 400 cycles. Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Smart Built-in BMS
Passive balancing (active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besides, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.
LiFePO4 Battery Performance and Test Conditions
1. Standard test conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
2. Standard Charge/Discharge
Standard Charge: 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge: 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
FAQ:
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 3 years warranty
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
