Product Details:
|
| Capacity: | 48V 30Ah | Power: | 1440Wh |
|---|---|---|---|
| Usage: | Rent Moto, Electric Bicycle, Etc. | Anode Material: | Lithium Iron Phosphate |
| Communication: | RS232/RS485/CAN | Retention Ratee: | ≥80% （2000 Cycles） |
| Self Discharge Rate: | ≤3% Per Month | OEM/ODM: | Optional |
| High Light: | 48V 30ah Lithium Battery,Lithium Ion Battery 48v 30ah,48v 30ah Lithium Ion Battery |
||
High Power 1440Wh 48V 30ah Lithium Battery Pack For Electric Bicycle
48V LiFePO4 High Power 48V 30ah Lithium Battery Pack for E-Vehicle
Rechargeable E-Bike Battery 48Volts 30Amp BMS CAN Power Supply
| NO | Item | General Parameter | Remark | ||||
| 1 | Model | ELT-LFP-4830 | |||||
| 2 | Standard capacity(0.5C) | 30Ah | |||||
| 3 | Rated voltage | 48V | |||||
| 4 | Max. charge voltage | 54.75V | Single Ave. charge Voltage: 3.65V | ||||
| 5 | Standard charge current | 6-15A | 0.2-0.5C | ||||
| 7 | Charging time | About 2-5 hours | X C | ||||
| 8 | Discharge cut-off voltage | 37.5V | Single Ave. Discharge Voltage: 2.5V | ||||
| 10 | Max. continuous discharge current | 30A | 1C | ||||
| 11 | Peak discharge current | 75A | 3C(3-5S) | ||||
| 12 | Short circuit protection | Detetion delay time | XXμs | Release condition | Cut-off load | ||
| 12 | Battery dimension |
210*150*140mm(customized) |
|||||
| 13 | Total weight(Approx.) | About 15kg | |||||
| 14 | Operation temperature | Standard | 0ºC~45ºC | ||||
| Discharge | -20ºC~65ºC | ||||||
| Storage | -20ºC~65ºC | ||||||

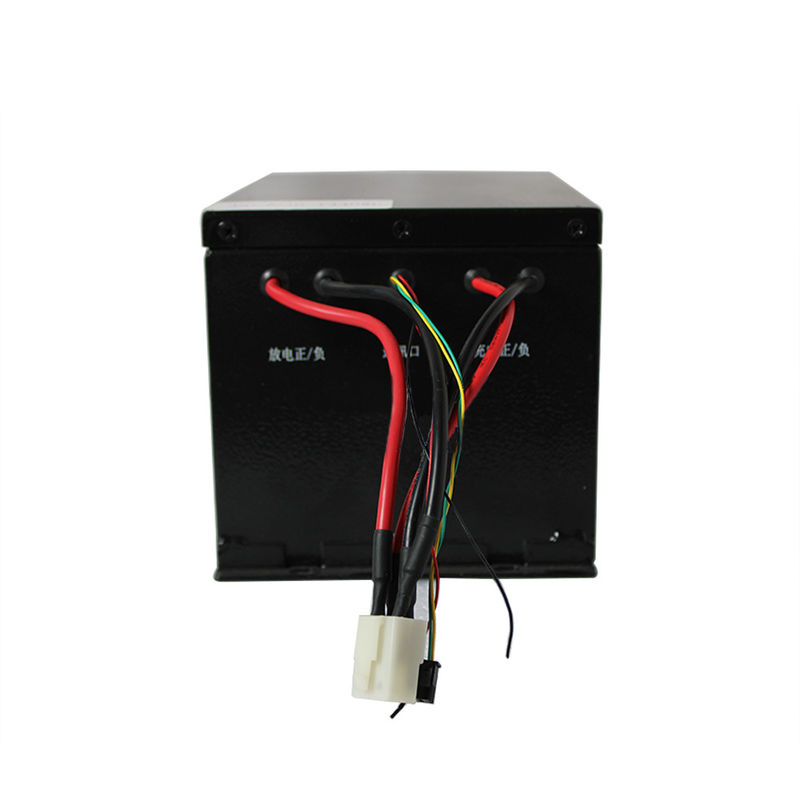

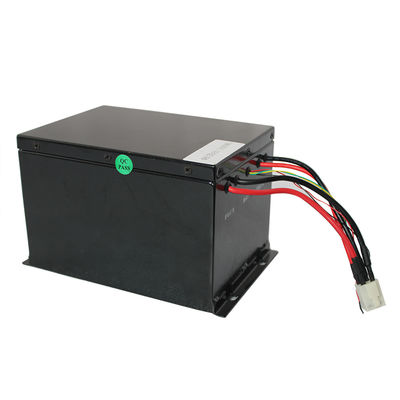

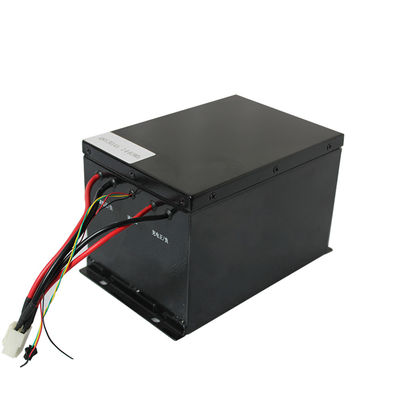

48V 30Ah LiFePO4 Battery Image
Application of 48V 30Ah LiFePO4 Battery
♦ Wheelchairs and scooters
♦ Solar/wind energy storage
♦ Back-up power for small UPS
♦ Golf trolleys & buggies
♦ Electric bikes
Storage and Transportation of LiFePO4 Battery 48V 30Ah
Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
Battery should be kept at -20℃～45℃ in warehouse where it’s dry, clean and well-ventilated.
During loading of battery, attention must be paid against dropping, turning over and serious stacking.
Warranty Instructions
1. We provide 2 years Warranty.
2. Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3. Goods should be returned in original condition to qualify for a replacement or repair.
Why Elite?
1. OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2. Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4. CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
