Product Details:
|
| Capacity: | 51.2V 400Ah | Energy: | 20480Wh |
|---|---|---|---|
| Self-discharge Rate: | ≤3% | Retention Rate: | ≥80%（2000 Cycles） |
| Advantages: | Safe, Duration, Light Etc. | Usage: | UPS, Electric Power, Residential Ess/Telecom Power System |
| Electrolyte: | Li-ion | LED Display: | Yes |
| OEM/ODM: | Available | BMS: | Yes |
| High Light: | 400ah 48V LiFePO4 Battery,OEM BMS 48V LiFePO4 Battery,48 Volt Lithium Iron Phosphate Battery |
||
Deep Cycle 400ah 48V LiFePO4 Battery ESS Lithium Iron Phosphate
Lithium Ion 48V LiFePO4 51.2V 400ah Li-ion ESS Phosphate Battery
Energy Storage Large Capacity 48V 400Ah BMS battery with Deep Cycle
· Attractive cycle life
· Extended safety performance
· Wide operating temperature range
· Unrivalled high temperature performance
· Green energy without metal contaminant
· High capacity
· Steady output voltage
· Little self-discharge
· Double safety protection
· Withstanding very high level of vibrations and shocks
48V 400Ah Battery Details
| Battery Box | |
| Norminal Voltage [VDC] | 51.2V |
| Voltage Range [VDC] | 40~58.4V |
| Rated Capacity | 400Ah |
| Battery Box Configuration | 2P16S |
| Rated Discharge Current [A] | 100A |
| Rated Charge Current [A] | 100A |
| Norminal Total Energy [kWh] | 20480Wh |
| Cell | |
| Norminal Voltage [VDC] | 3.2V |
| Voltage Range [VDC] | 2.5~3.65V |
| Cell Type | LFP 3.2V 202Ah |
| Norminal Capacity | 202Ah |
| Rated Discharge Current [A] | 100A |
| Rated Charge Current [A] | 100A |
| Norminal Total Energy [kWh] |
646.4Wh |
| Construction | |
| Installation Type | Stationary |
| Level of Protection (IP) | IP54 |
| Altitude [m] | ≤2000 |
| Size (W*D*H) [mm] | 960*510*330 |
| Weight [kg] | ~160kg |

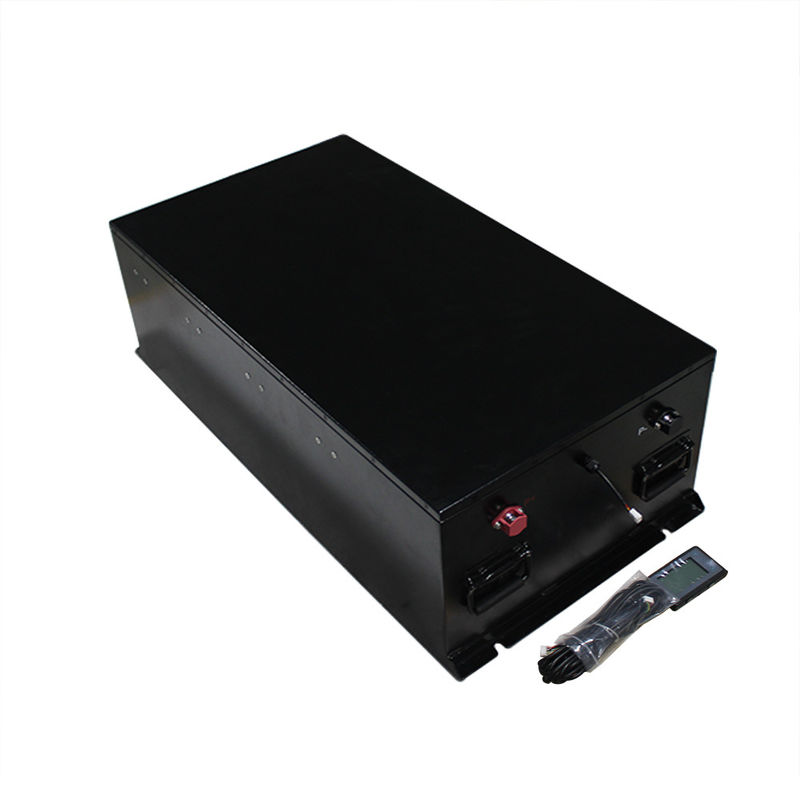

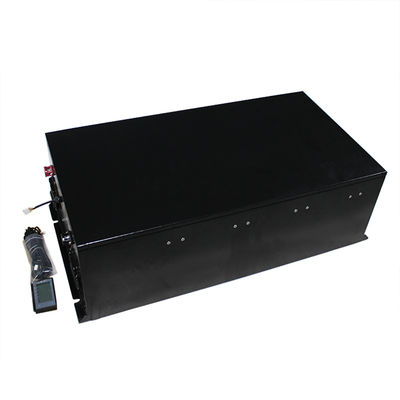

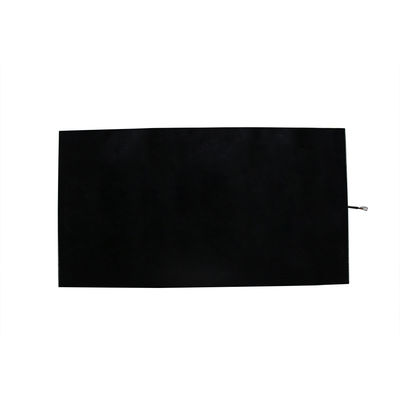

Battery Appearance
Telecom Battery Application:
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family
3. Other Applications: Communication Tower, Large ESS
· Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
· During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
· Battery should be kept at -20℃～45℃ in warehouse where it’s dry, clean and well-ventilated.
· During loading of battery, attention must be paid against dropping, turning over and serious stacking.
In order to prevent the battery leaking, getting hot and exploding, please pay attention to preventing measure as following:
Warning!
· Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
· Never upside down the positive and negative.
· Never connect the positive and negative of battery with metal.
· Never ship or store the battery together with metal
· Never knock, throw or trample the battery.
· Never cut through the battery with nail or other edge tool.
