Product Details:
|
| Capacity: | 60.8V 160Ah | Nominal Voltage Voltage: | 60.8V |
|---|---|---|---|
| Rated Capacity: | 160Ah | Application: | Low Speed Vehicles |
| Energy: | 9728Wh | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| LED Indicator: | Optional | OEM/ODM: | Available |
| High Light: | 160Ah Custom Lithium Ion Battery,60.8V Custom Lithium Ion Battery,160Ah LiFePO4 Lithium Battery |
||
9728Wh 60.8V 160Ah Custom Lithium Ion Battery For Low Speed Vehicles
Custom 60.8V 160Ah LiFePO4 Lithium Battery for Low-speed Vehicles
Feature
1. Environmental friendly: Lifepo4 battery contains no heavy metals and rare metals (nickel-hydrogen batteries contain), non-toxic, non-polluting.
2. Without memory effect: Lifepo4 battery can be charged or used at any time, no need to charge it under the situation of fully discharged.
3. High safety performance: Lifepo4 battery has passed strict safety tests and will not explode even in the worst traffic accidents.
4. High energy density: The energy density of lifepo4 battery is 460-600 Wh/kg, about 6-7 times higher than lead acid battery.
5. Small size and light weight: lifepo4 battery is 1/2.5 size& weight of lead acid battery.
6. Excellent performance at high temperature.
Lithium Ion 60.8V 160Ah LiFePO4 Li-ion Battery Low-speed Vehicels
|
Nominal Voltage |
60.8V |
|
Nominal Capacity |
160Ah |
|
Energy |
9728Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
69.35±0.2V |
|
Charge Mode |
0.2C to 69.35V, then 69.35V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
20A |
|
Max. Charge Current |
30A |
|
Max. Continuous Discharge Current |
60A |
|
Max. Pulse Current |
150A(3S) |
|
Discharge Cut-off Voltage |
47.5V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP67 |
|
Cell&Method |
19S |
|
Package |
Metal Case |
|
Dimensions(in./mm.) |
582*520*226mm |
|
Weight(lbs./kg.) |
86.24kg |

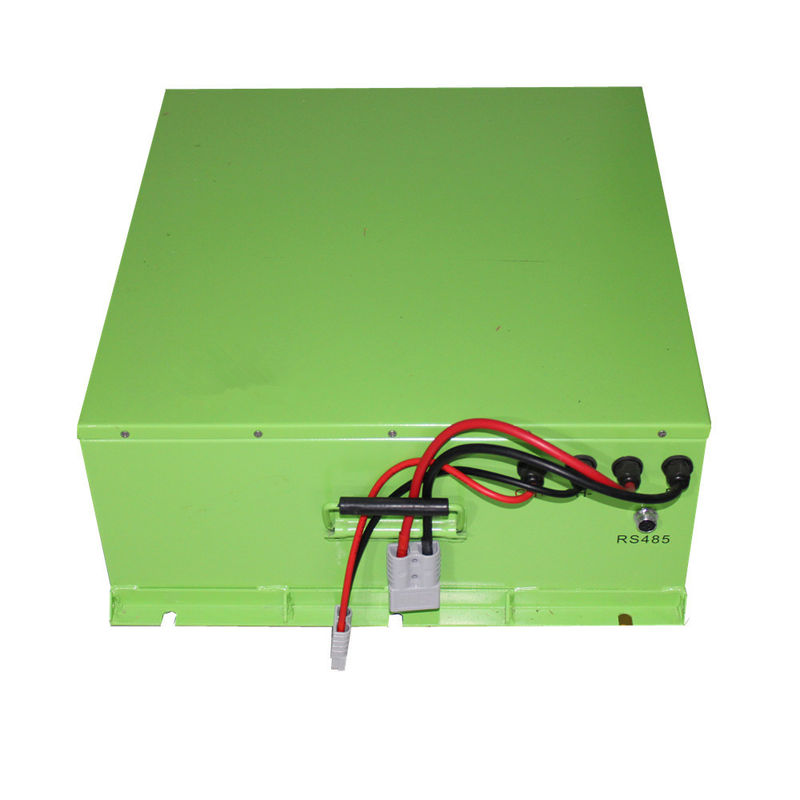

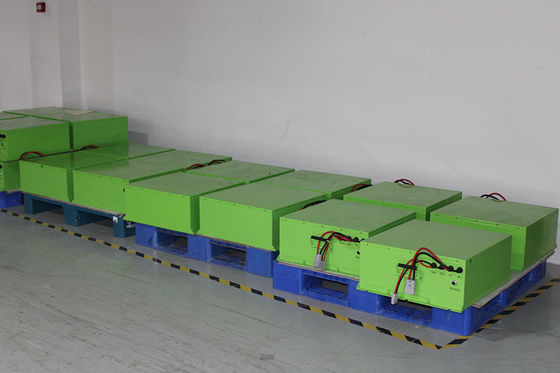

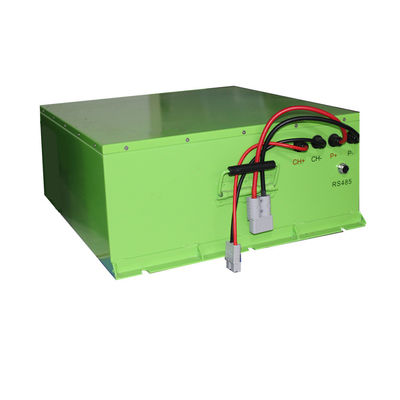

Product Images
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
