Product Details:
|
| Model Type: | LFP 12V 400Ah | Standard Voltage: | 12.8V |
|---|---|---|---|
| Charge Cut-off Voltage: | 14.6V | Discharge Cut-off Voltage: | 10V |
| Rated Capacity: | 400Ah | Energy: | 5120Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-discharge Rate: | <3% |
| Internal Resistance: | ≤10mΩ | OEM/ODM: | Available |
| High Light: | 400Ah Lithium Ion Caravan Battery,5120Wh Lithium Ion Caravan Battery,5120Wh High Capacity Lithium Ion Battery Pack |
||
High Capacity 5120Wh 12V 400Ah Lithium Ion Caravan Battery Pack
Customized Lithium Irom Battery 12V 400Ah for Energy Storage System
Feature
1. Safe: the safest lithium-ion battery so far.
2. Complaint with CE standards and UL marks.
3. Eco-friendly: accredited with RoHS directive-compliant without any hazardous and noxious substances.
4. Long cycle lifespan: over 2, 000 cycles with capacity staying at 80% (minimum).
5. No memory effect: always ready for charge and use, with no need to charge after a full discharge.
6. Wide temperature range: available for use when the temperature ranges from -20 to 70°C.
|
Model Type |
ELT-LFP-12V-400Ah |
|
Energy |
5120Wh |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
400Ah |
|
Recommend Charge Current |
20A |
|
Max. Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Max. Pulse Current |
250A(10S) |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 58.4V charge current to 0.02C(CC/CV) |
|
Discharge Cut-off Voltage |
10V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Cell&Method |
4S |
|
Package |
Metal Case |
|
Dimension |
450*230*250mm |
|
Weight(lbs./kg.) |
40kg |

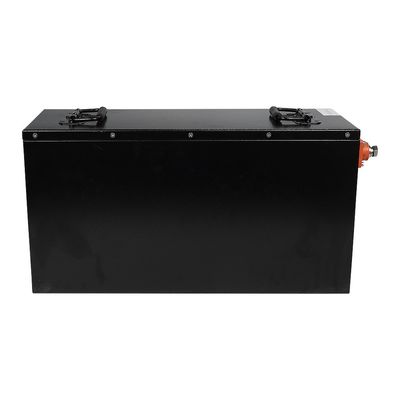

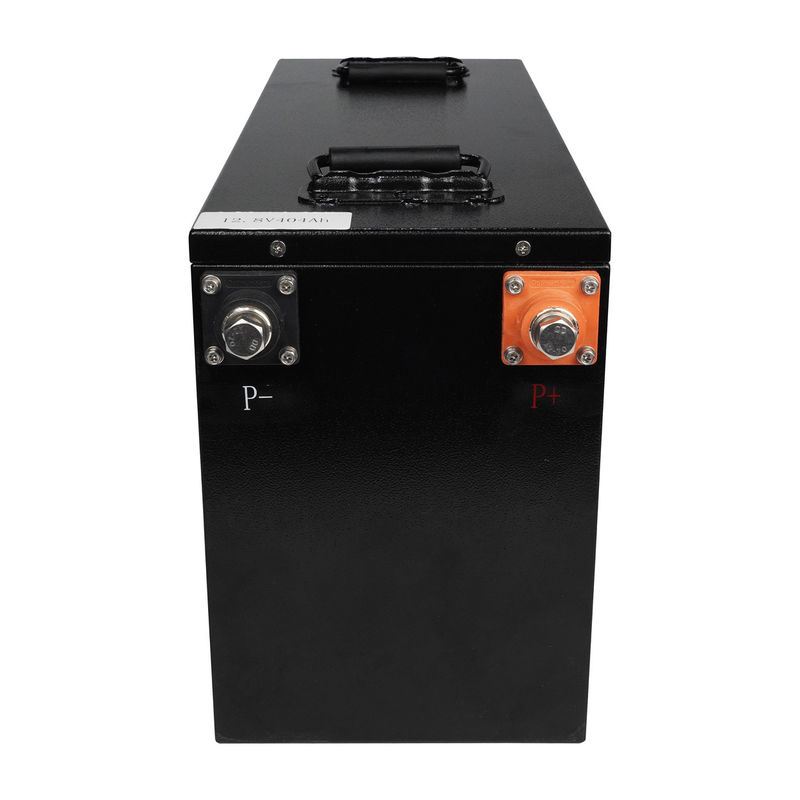

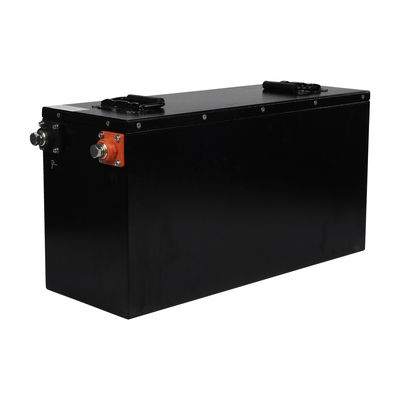

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Production Line
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
