Product Details:
|
| Model Type: | LFP 12V 75Ah | Standard Voltage: | 12.8V |
|---|---|---|---|
| Charge Cut-off Voltage: | 14.6V | Discharge Cut-off Voltage: | 10V |
| Rated Capacity: | 75Ah | Energy: | 960Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-discharge Rate: | <3% |
| Internal Resistance: | ≤10mΩ | OEM/ODM: | Available |
| High Light: | 75Ah Portable Li Ion Battery Pack,960Wh Portable Li Ion Battery Pack,960Wh Bluetooth Battery Pack |
||
960Wh 12V 75Ah Portable Li Ion Battery Pack Bluetooth Rechargeable
Portable 12V 75Ah Li-ion LiFePO4 Rechargeable Bluetooth Battery Pack
Product Description
Feature
1. Long in cycle life: The cycle life of the battery packing can reach 2, 000 times with more than 6 years of life
2. Small in volume and light in weight: The lifepo4 battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery. Thus the performance of the whole bike is improved and the battery can be taken off easily
3. Green battery to protect environment: The lead-acid battery will pollute the environment seriously because of frequent replace, but the iron-lithium battery is green power without pollution
4. Can be rapid charged: Lifepo4 batteries will have a full charging within 5 to 6 hours with 0.2C, and 1 hours with 1C.
| Model Type | ELT-LFP-12V-75Ah |
| Energy38 | 960Wh |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 75Ah |
| Recommend Charge Current | 15A |
| Max. Charge Current | 75A |
| Max. Continuous Discharge Current | 75A |
| Max. Pulse Current | 150A(10S) |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 58.4V charge current to 0.02C(CC/CV) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Cell&Method | 4S |
| Package | Plsatic ABS Case |
| Dimension | 265*168*211mm |
| Weight(lbs./kg.) | 9kg |

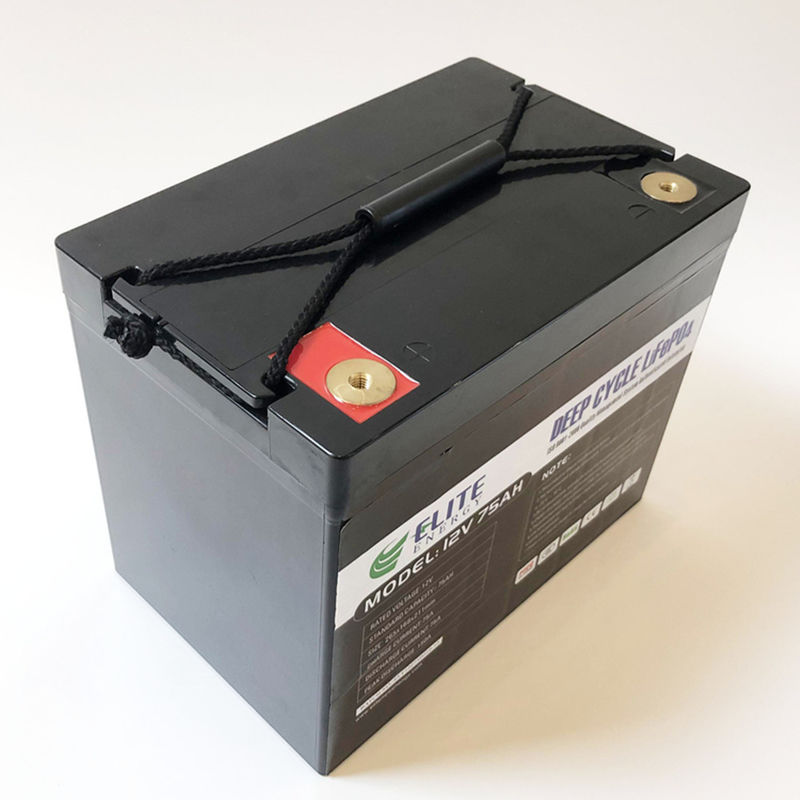

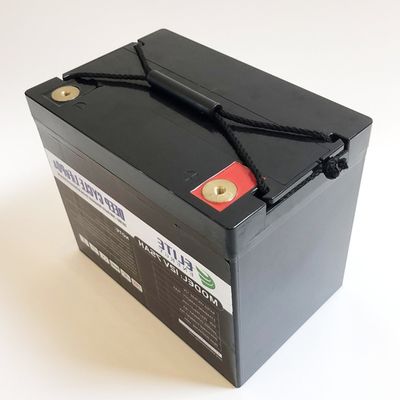

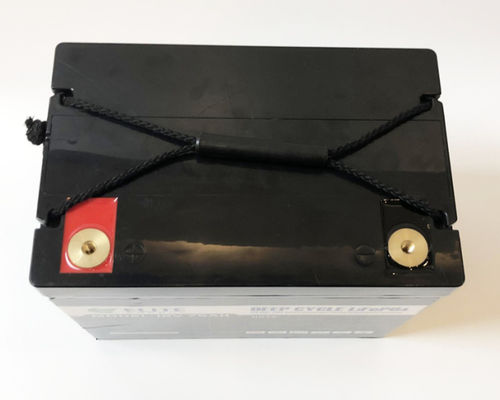

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Production Line
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
