CE 4kg 5000 Cycles 12V 30Ah LiFePO4 Solar Street Light Battery

CE 4kg 5000 Cycles 12V 30Ah LiFePO4 Solar Street Light Battery

  • High Light

    LiFePO4 Solar Street Light Battery


    30Ah Solar Street Light Battery


    4kg 5000 Cycle Battery

  • Model
    PVC LFP 12V 30Ah Battery
  • Energy
  • Dimension
  • Weight
  • Application
    ESS, EV, Solar System
  • Cycle Span
    3000-5000 Cycles
  • Compact Desiged
    With Built-in BMS
  • Self-diacharge Rate
  • Bluetooth
  • Rated Capacity
  • Rated Voltage
  • Place of Origin
    Guangdong, China
  • Brand Name
    Elite Battery
  • Certification
    CE, UL, MSDS, UN38.3, MSDS
  • Model Number
    12V 30Ah
  • Minimum Order Quantity
    1 PCS
  • Price
  • Packaging Details
    Carton box with pallet
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 PCS/Month

CE 4kg 5000 Cycles 12V 30Ah LiFePO4 Solar Street Light Battery

 CE 4kg 5000 Cycles 12V 30Ah LiFePO4 Solar Street Light Battery


Portable Li Ion Battery 12V 30Ah LiFePO4 Solar Street Light Battery


Product Description


1. LiFePO4 battery can replace lead-acid battery. Besides, the safety performance and cycle life of lifepo4 battery is far beyond lead-acid battery;

2. LiFePO4 battery has excellent high and low temperature environment adaptability, the working temperature range of lifepo4 battery is from -20℃-75℃.

3. LiFePO4 battery has no memory effct. No matter what state the battery is on, it can be charged or used at any time, no need to charge it under the situation of fully discharged.

4. LiFePO4 battery has long cycle life, which is about 6-10 years.


Nominal Voltage 12.8V
Nominal Capacity 30Ah
Energy 384Wh
Internal Resistance ≤10mΩ
Cycle Life >3000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Charge Cut-off Voltage 14.6±0.2V
Charge Mode 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV)
Recommend Charge Current


Max. Charge Current 30A
Max. Continuous Discharge Current 30A
Max. Pulse Current 60A(10S)
Discharge Cut-off Voltage 10V
Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP54
Cell&Method 4S
Package PVC Case
Dimensions(in./mm.) 170*160*76mm
Weight(lbs./kg.) 3.5kg
Display screen Optional

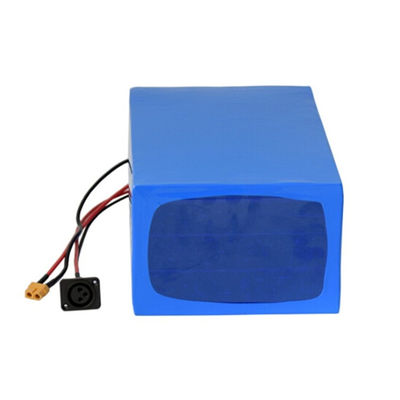

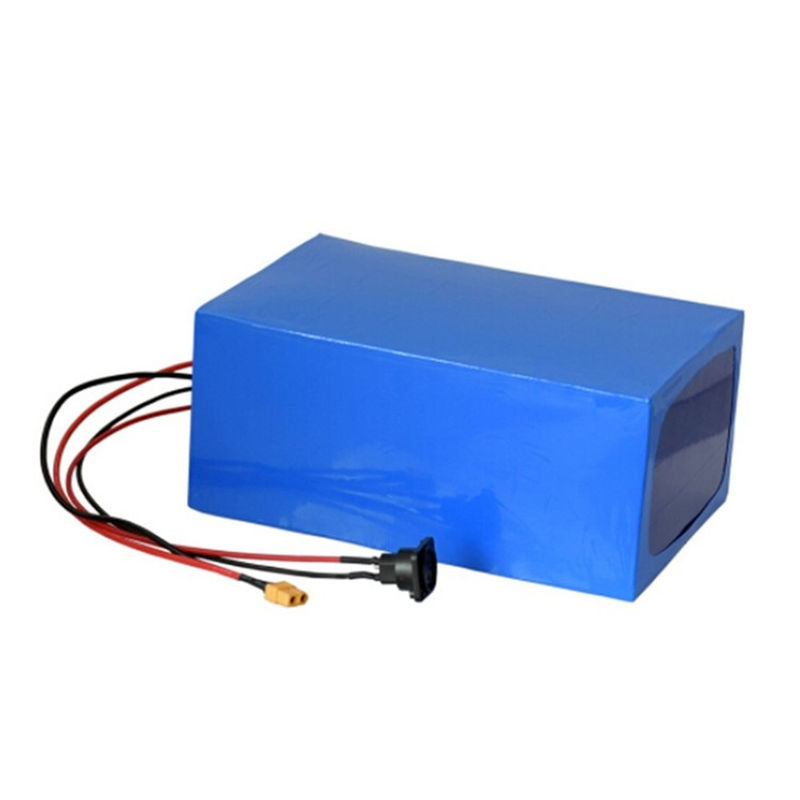

Product Images

CE 4kg 5000 Cycles 12V 30Ah LiFePO4 Solar Street Light Battery 0

Company Information



CE 4kg 5000 Cycles 12V 30Ah LiFePO4 Solar Street Light Battery 1

Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.


Packaging & Shipping


Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

Shipping: By air, by sea, by express, railway transportation and so on.




1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
