Product Details:
|
| Capacity: | 3.2V 105Ah | Nominal Voltage Voltage: | 3.2V |
|---|---|---|---|
| Rated Capacity: | 105Ah | Energy: | 336Wh |
| Application: | ESS, EV, Solar System | Cycle Life: | 3000-5000 Cycles |
| Self-diacharge Rate: | <3% | House: | PVC |
| High Light: | 336Wh LiFePO4 Battery Cell,105ah LiFePO4 Battery Cell,Lifepo4 3.2 V 105ah |
||

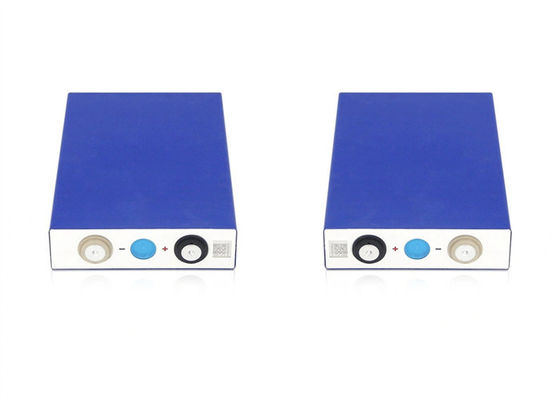

Safety Prismatic 3.2V 105ah 336Wh LiFePO4 Battery Cell No Toxic
LiFePO4 Battery Cell 3.2V 100ah 105ah Prismatic Lithium Li-ion Battery
Product Description
Feature
1. Excellence performance and deep cycle.
2. High retention rate (more than 80%) after 2000 cycles.
3. Low self-discharge rate: Less than 3%.
4. Lighter weight with larger capacity.
5. Rechargeable battery, which has no menory effect and can charge anytime.
6. Safety: safest Lithium battery, CE UL approved, built-in PCM/BMS.
7. Clean and Green energy, no toxic material contained.
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
105Ah |
|
Energy |
336Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
3.65±0.2V |
|
Charge Mode |
0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
50A |
|
Max. Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Max. Pulse Current |
200A(10S) |
|
Discharge Cut-off Voltage |
2.5V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP54 |
|
Cell&Method |
1S |
|
Package |
PVC |
|
Dimensions(in./mm.) |
37*130*200mm |
|
Weight(lbs./kg.) |
1.98kg |
Product Images
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
