Product Details:
|
| Capacity: | 3.2V 6Ah | Nominal Voltage Voltage: | 3.2V |
|---|---|---|---|
| Rated Capacity: | 6Ah | Energy: | 19.2Wh |
| Application: | ESS, EV, Solar System | Cycle Life: | 3000-5000 Cycles |
| Self-diacharge Rate: | <3% | Housing: | PVC |
| High Light: | 6Ah 32650 Lifepo4 Cells,3.2V Cylindrical Battery Cell,3.2V 32650 Lifepo4 Cells |
||
5000 Cycles Cylindrical Lithium Iron 3.2V 6Ah 32650 Lifepo4 Cells
32700/32650 3.2V 6Ah LiFePO4 Lithium Iron Cylindrical Battery Cell
Product Description
Feature
1. High safety: Even at high temperature or overcharge, lithium iron phosphate will not collapse and heat or form strong oxidizing substances like lithium cobaltate.
2. Long life: the cycle life of lithium iron phosphate battery is more than 2000 times. The life span of same quality lead acid battery is at most 1~1.5 years, and lithium iron phosphate battery in the same conditions, the theoretical life will reach 7~8 years.
3. Lighter weight with larger capacity compared with Lead-acid battery.
4. No toxic material contained,which is environmentally friendly.
5. Without memory effect, with high rentention rate and low-self discharge rate.
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
6Ah |
|
Energy |
19.2Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
3.65±0.2V |
|
Charge Mode |
0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
1.5A |
|
Max. Charge Current |
6A |
|
Max. Continuous Discharge Current |
6A |
|
Max. Pulse Current |
12A(10S) |
|
Discharge Cut-off Voltage |
2.5V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP54 |
|
Cell&Method |
1S |
|
Package |
PVC |
|
Dimensions(in./mm.) |
Diameter: 32mm; Height: 70mm |
|
Weight(lbs./kg.) |
145g |

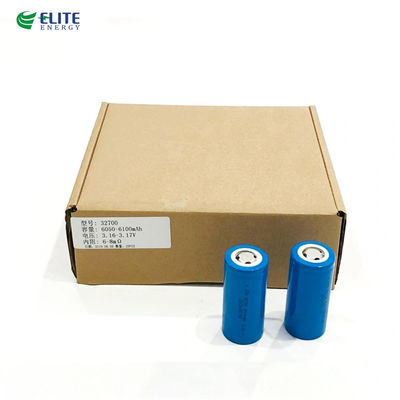

Product Images
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
