Product Details:
|
| Capacity: | 3.2V 6Ah | Nominal Voltage Voltage: | 3.2V |
|---|---|---|---|
| Rated Capacity: | 6Ah | Energy: | 19.2Wh |
| Application: | ESS, EV, Solar System | Cycle Life: | 3000-5000 Cycles |
| Self-diacharge Rate: | <3% | Housing: | PVC |
| High Light: | BIS LiFePO4 Battery Cell,6000mAh LiFePO4 Battery Cell,BIS 32700 Lifepo4 Cells |
||
BIS LiFePO4 Battery Cell
Elite BIS Approved 3.2V 6Ah 6000mAh LiFePO4 Lithium Battery Cell
Product Description
Feature
1. Lighter weight with larger capacity compared with Lead-acid battery.
2. No toxic material contained,which is environmentally friendly.
3. Durable:With deep cycle, which can reach more than 3000 cycles.
4. Excellent performance under high temperature operationg situation.
5. Without memory effect, with high rentention rate and low-self discharge rate.
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
6Ah |
|
Energy |
19.2Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
3.65±0.2V |
|
Charge Mode |
0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
1.5A |
|
Max. Charge Current |
6A |
|
Max. Continuous Discharge Current |
6A |
|
Max. Pulse Current |
12A(10S) |
|
Discharge Cut-off Voltage |
2.5V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP54 |
|
Cell&Method |
1S |
|
Package |
PVC |
|
Dimensions(in./mm.) |

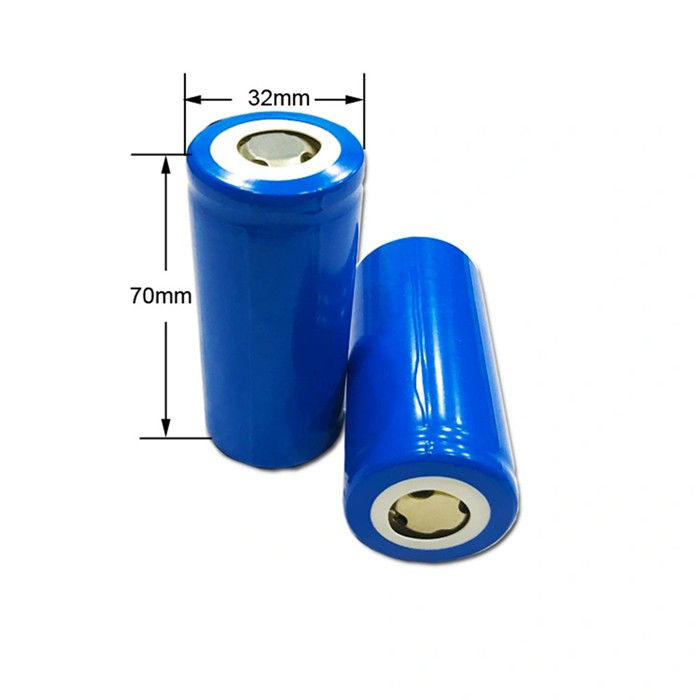

Diameter: 32mm; Height: 70mm |
|
Weight(lbs./kg.) |
145g |

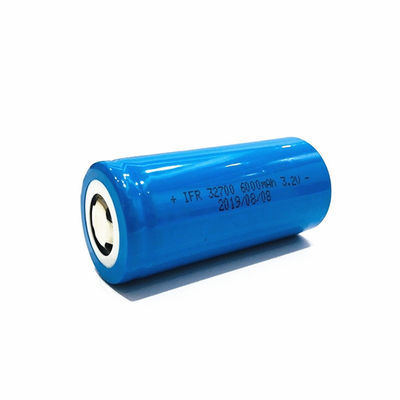

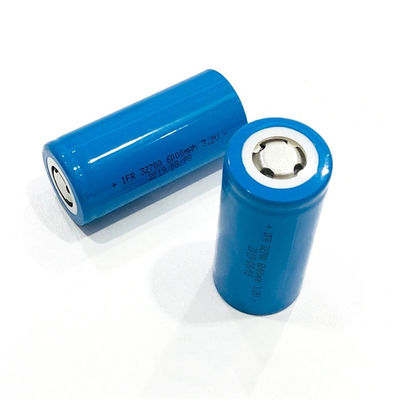

Product Images
