Product Details:
|
| Capacity: | 12V 100Ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 1280Wh |
| Application: | 3 Years | Cycle Life: | 3000-5000 Cycles |
| Self-diacharge Rate: | <3% | Compact Desiged: | With Built-in BMS |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | RV Li Ion Rechargeable Battery,12V LiFePO4 Battery MSDS,5000 Cycles 12V LiFePO4 Battery |
||
IP54 12V LiFePO4 Battery

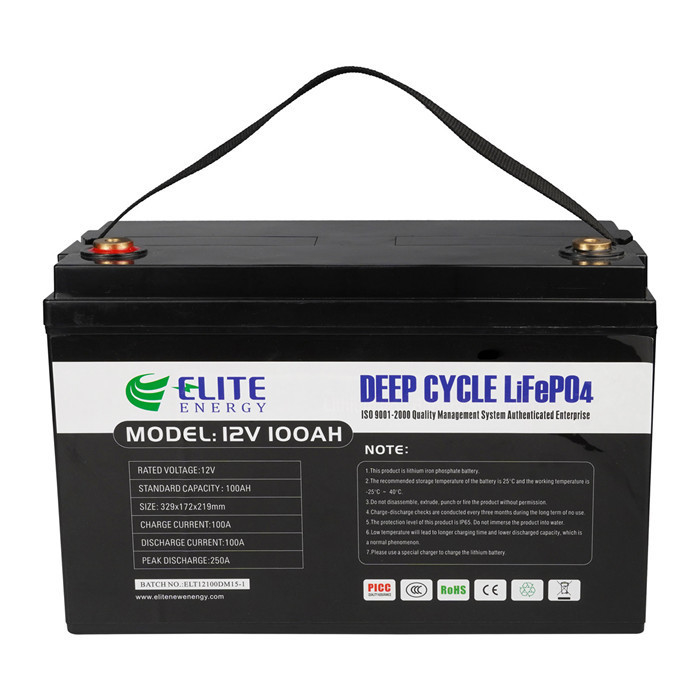

Deep Cycle RV 12V 100Ah LiFePO4 Lithium Li-ion Rechargeable Battery
Feature
1. Deep cycle: Lifepo4 battery can reach more than 2000 cycles.
2. Excellent performance: The battery is workable under high temperature.
3. Clean energy: Lifepo4 battery is green energy, which contains no toxic material.
4. Safty: Lifepo4 is the safest lithium battery, with CE, UL approved and with built-in BMS.
5. Low self-discharge rate: Lower than 3% per month.
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1280Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 200A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 329*172*219mm |
| Weight(lbs./kg.) | 14.7kg |
| Led Indicator | Optional |
Product Images
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
