Product Details:
|
| Model: | LiFePO4 12V 15Ah | Energy: | 192Wh |
|---|---|---|---|
| Rated Voltage: | 12.8V | Rated Capacity: | 15Ah |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | 12.8V Solar Li Ion Battery,LiFePO4 Solar Li Ion Battery,UL 12V LiFePO4 Battery |
||
Deep Cycle LiFePO4 Battery 12.8V 15Ah Lithium Battery Pack Solar Li-ion Battery
| Nominal Voltage | 12.8V |
| Nominal Capacity | 15Ah |
| Energy | 192Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current |
3A |
| Max. Charge Current | 15A |
| Max. Continuous Discharge Current | 15A |
| Max. Pulse Current | 30A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 181*76*168mm |
| Weight(lbs./kg.) | 2.5kg |
| Display screen | Optional |

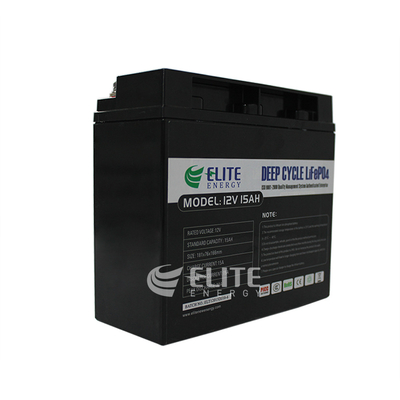

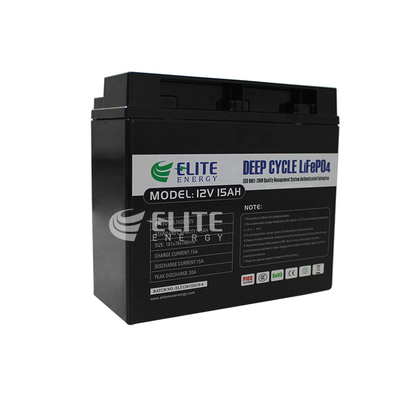

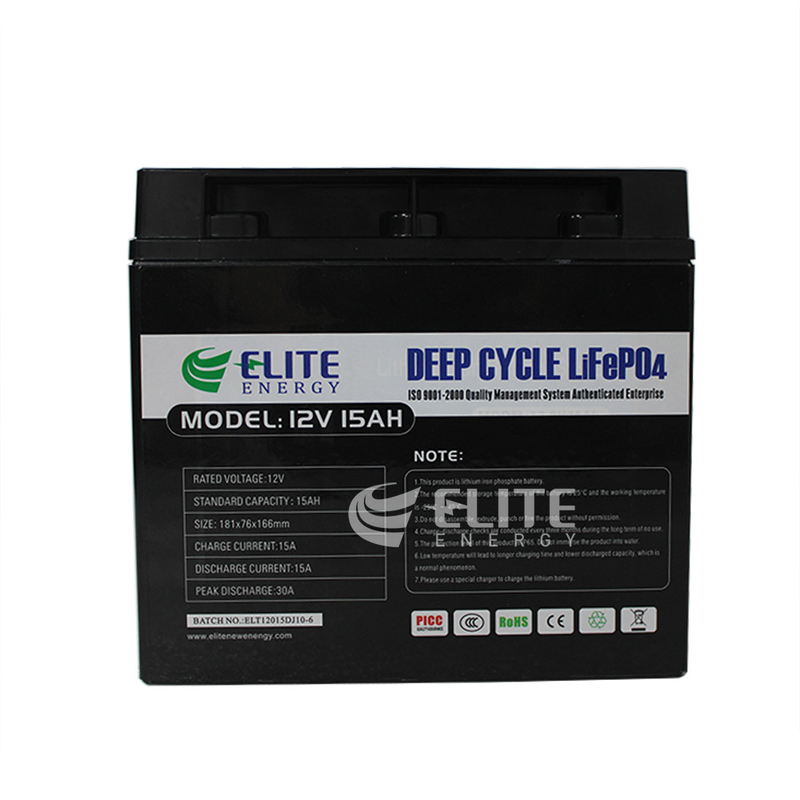

Product Images
LiFePo4 Batteries Compare with Lead Acid Batteries
1.Longer battery life feature 2000times life cycle @100%DOD, 5 times more than lead acid batteries
2.Low self-discharge less 3% per months
3.Free of charge memory
4.Stable discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy installation and operation
Payment&Packaging&Shipping
Payment: Usually for T/T,sample order support Paypal or others.
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
Q:How do I choose the correct lithium deep cycle battery for my application?
A: In most standard 12, 24, 36 or 48 volt systems the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate). The voltage of this type of battery will work great with readily available system components for your RV, boat, or off-grid power system.
Q. What is your sample policy?
A:Sample order for testing is available. No MOQ limition.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: Can your factory print our logo/brand on the product?
A: Yes, and we will do this free of charge if the order quantity is big enough, please contact us for more details.
Q: What kind of certificates could you provide for these batteries?
A: We have CE,MSDS,UN38.3 for most our current model, we could apply the specific certification as customer's requirements. The related fees should be paid by your side first, and when subsequent orders reach a certain quantity, certificate fees can be refunded.
