Product Details:
|
| Model: | LiFePO4 12V 12Ah | Energy: | 153.6Wh |
|---|---|---|---|
| Rated Voltage: | 12.8V | Rated Capacity: | 12Ah |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | 12V LFP Battery Pack,LiFePO4 LFP Battery Pack,12V LiFePO4 Battery 12Ah |
||

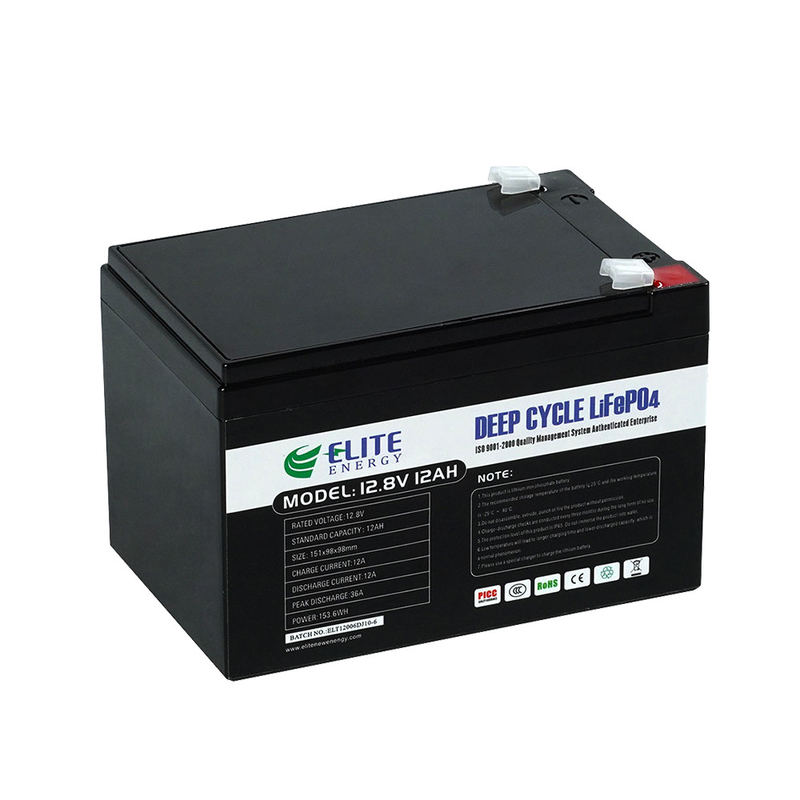

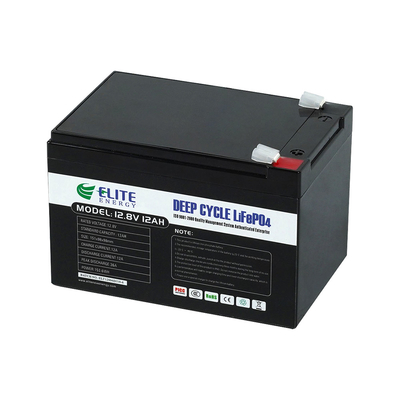

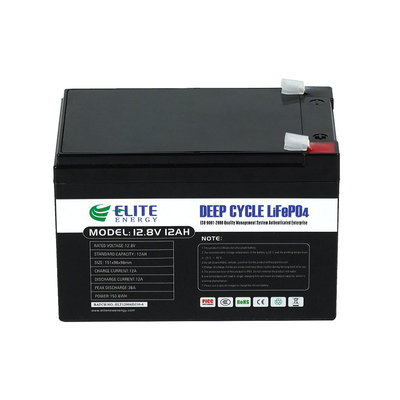

12V Solar Energy Storage Battery Pack 12.8V 12Ah LiFePO4 Battery Rechargeable LFP Battery
| Nominal Voltage | 12.8V |
| Nominal Capacity | 12Ah |
| Energy | 153.6Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >C@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current |
2.4A |
| Max. Charge Current | 12A |
| Max. Continuous Discharge Current | 12A |
| Max. Pulse Current | 24A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 151*98*95mm |
| Weight(lbs./kg.) | 1.8kg |
| Display screen | Optional |
Battery Details
Company Advantages
Experienced technical team
Elite’s R&D technical team has received more than 20 inventions and application patents.
Professional pack technique
Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
Safety certification guarantee
Most batteries have been certificated according to international standard including CE, MSDS, UN38.3 etc..
Trained sales
Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
Perfect after-sales service
Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
Q1:Are you factory or trader?
A:We are manufacturer and factory based in shenzhen.
Q2. What about the lead time?
A: Mass production time is approx 4-5 weeks
Q3. Do you have any MOQ limit for order?
A: Sample order for testing is available. Welcom for inquiry.
Q4. Is it accpeted to print my company logo?
A: Sure, please kindly tell us before production.
Q5: Do you offer guarantee for the products?
A: Yes, usually for 3 years and extend warranty is chagrge.
