Product Details:
|
| Model: | LiFePO4 12V 10Ah | Energy: | 128Wh |
|---|---|---|---|
| Rated Voltage: | 12.8V | Rated Capacity: | 10Ah |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | 12.8V Lithium Iron Phosphate Battery,10Ah Lithium Iron Phosphate Battery,Streetlight 12V LiFePO4 Battery |
||

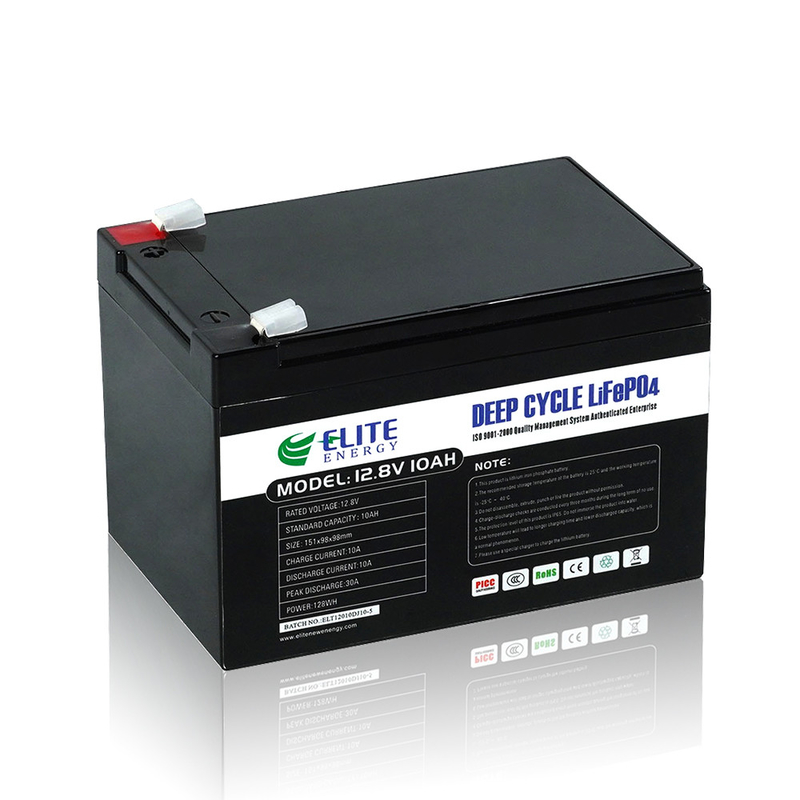

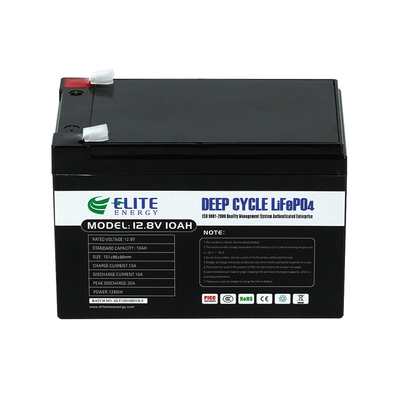

12V Lithium Iron Phosphate Battery Pack 12.8V 10Ah LiFePO4 Battery for Solar Street Light
12V 10Ah LFP Battery Overiew
· About 10 times longer life cycle than lead-acid battery.
· High energy density, about 2 times more capacity with the same size
· Fast charging and large current discharging without damaging the battery.
· Smart battery with charging, discharging, short circuit and temperature rising control by BMS.
. Bluetooth function for checking the battery status conveniently
| Nominal Voltage | 12.8V |
| Nominal Capacity | 10Ah |
| Energy | 115.2Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current |
2A |
| Max. Charge Current | 10A |
| Max. Continuous Discharge Current | 10A |
| Max. Pulse Current | 20A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 151*98*95mm |
| Weight(lbs./kg.) | 1.5kg |
| Display screen | Optional |
Factory Advantage
1:Original Factory Directly Competitive Price
2:Verified and Certified Battery Quality
3:Sampler Order Accepted
4: Fast Delivery for Some Hot Model
5:ONLINE PAYMENT Support T/T, L//C, Paypal, Western Union... ...
6:Supply 3 Years Warranty
7:AFTER SALES SERVICES 24 HOURS. After Sales Service 24Hs
12V 10Ah LiFePO4 Battery Usage
Shipment&Payment
| Payment | T/T, L/C , Paypal,Cash, Western Union etc.(flexible payment term can be discussed) |
| Port | Normally Shenzhen China (any sea port upon request) |
| Delivery | By sea/air/train/truck/express transportation |
| production | Normally 4 weeks for bulk order |
| Packing: | Pack in carton box then pallet (wooden box) |
Q&A
Q: Do you accept OEM/ODM?
A: Yes,it is available. Please kindly send us your specific requirements.
Q:Are you battery real capacity?
A: All of our battery cells with high quality cells,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,IEC,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
Q:What shipping methods are provided?
A: Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
