4S1P Connection 12V LiFePO4 Battery 45 Degree With MSDS Certification

4S1P Connection 12V LiFePO4 Battery 45 Degree With MSDS Certification

  • High Light

    4S1P Connection 12V LiFePO4 Battery

    ,

    12V LiFePO4 Battery 45 Degree

    ,

    MSDS 12V LiFePO4 Battery

  • Battery
    12V 6Ah LFP
  • Energy
    76.8Wh
  • Battery Cell
    32700
  • Connection
    4S1P
  • Cycle Time
    4000-6000 Cycles
  • Retention Rate
    ≥80%(2000 Cycles)
  • Self-discharge Rate
    3%
  • Material
    LiFePO4
  • Life Time
    6-10 Years
  • OEM/ODM
    Optional
  • Place of Origin
    Guangdong, China
  • Brand Name
    Elite Battery
  • Certification
    CE, UL, MSDS, UN38.3, MSDS
  • Model Number
    12V 6Ah
  • Minimum Order Quantity
    1 PCS
  • Price
    $9.99-$29.99/PCS
  • Packaging Details
    Carton box with pallet
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 PCS/Month

4S1P Connection 12V LiFePO4 Battery 45 Degree With MSDS Certification

12V 6Ah Lithium Ion Battery 12.8V 6Ah Solar Storage LiFePO4 Battery





LiFePO4 Battery Specifications

Item Lifepo4 12v 6ah battery pack
Certification CE.RoHS ,FCC,MSDS
Nominal Capacity 6Ah
Nominal Voltage 12.8V
Max Charge Voltage 14.6±0.2V
Terminal Discharge Voltage 10-14.6V
Continuous Charge Current 1.2A
Continuous Discharge Current 1.2A
Max Continuous Charge Current 6A
Max Continuous Discharge Current 6A
EX-work Voltage >13.1V
Cycle Life >4000 time
Weight ≤ 0.8 KG
Temperature

Charge, 0ºC ~ 45ºC

Discharge, -10ºC ~ 60ºC

Storage Temperature

-20 ~ 45ºC ( ≤one month )

-20 ~ 35ºC ( ≤ three month )

-20 ~ 25ºC ( ≤ one year )

25ºC ( >one year )

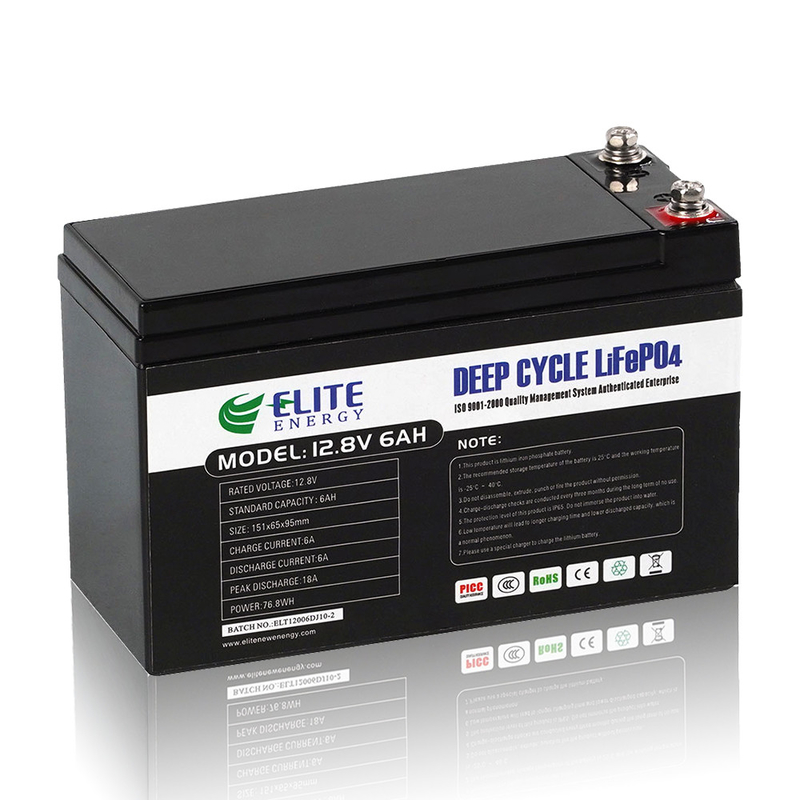

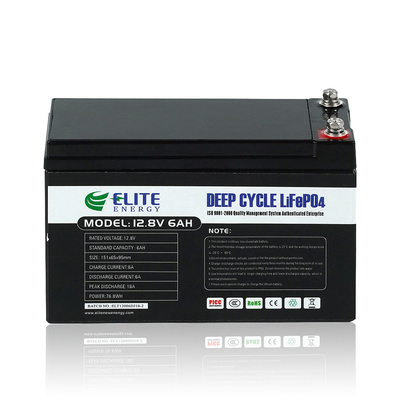

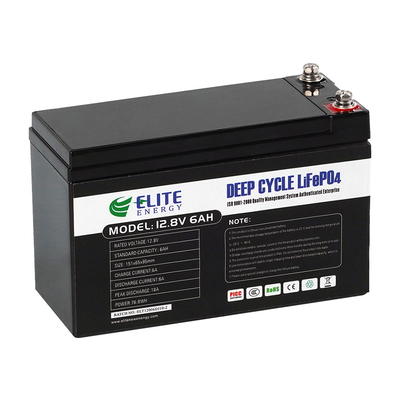

Lithium Battery​ Details



4S1P Connection 12V LiFePO4 Battery 45 Degree With MSDS Certification 0

Lithium Battery Feature



◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles under normal conditions.



◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.



◆ Lighter weight and aout 40% ~50% of the weight of a comparable lead acid battery.



◆ Can be charged using most standard lead-acid charges (set).



◆ Wider temperature range from-20℃ to 60℃.



◆ Support for Series application expansion (up to 51.2V) and two in parallels.

4S1P Connection 12V LiFePO4 Battery 45 Degree With MSDS Certification 1





Warning & Tips

1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;

2. When the battery run out of power, please charge it within 15 days;

3. Please use the original or recommended charger for this battery;

4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;

5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.

6. Please far away from children or pets.



FAQ



Q1: Can I have samples to test? And what is lead time for sample order?
A1:Yes, sample order for testing is available,the lead-time for samples is 15-20 days.

Q2: Do you provide after-sales service?
A2: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.


Q3: Do you accept OEM/ODM?
A4: Yes,it is available.

Q4: What is your lead time for the mass production?
A4: 30 days.



Q5:Can it be series or parallel for use?

A5: Yes, it can support max. 4 in series or 2 in parallel connection for use ( 12V series ) and no any additional device.



Q6: I need more function such Bluetooth and LED screen, I also want special design for my Marine/RV/Vehicle can I customized my battery pack?

A6: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
