Product Details:
|
| Model: | 12V 100Ah LFP Battery | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 1280Wh |
| Application: | 3 Years | Cycle Life: | >5000 Cycles |
| Self-diacharge Rate: | <3% | Compact Desiged: | With Built-in BMS |
| LCD Display: | Optional | OEM/ODM: | Available |
| High Light: | 12V 100Ah Lithium Ion Battery,ESS Rechargeable 12V LiFePO4 Battery,BMS 12V 100Ah LFP Battery |
||
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
Basic Specification
| Model | 12V 100Ah LiFePO4 Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Charge Voltage | 10-14.6V |
| Peak Discharge Current(10 S) | 200A |
| Continuous Charge / Discharge Current | 100A |
| Capacity | 100AH |
| Energy | 1280WH |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle life | 5000 times 80% DOD |
| Depth of Discharge | 100% DOD |
| Self Discharge | ≤3% per month |
| Cell Type | Prismatic or Cylindrical cell |
| Modular | Parallel Connection or Series Connection |
| Connector | M8 SCREWS or Aderson Connector with Cable |
| Display | Voltage V /Capacity % with button optional |
| Weight | 329*172*214mm |
| Size | 13.5KG |
| Modular | Parallel Connection or Series Connection |
| Connector | M8 SCREWS or Aderson Connector with Cable |
| Display | Voltage V /Capacity % with button optional |
BMS Parameter
|
Built in Automatic Battery Protection System |
Yes |
|
Automatic Low Voltage Disconnect |
Yes |
|
Automatic Short Circuit Protection |
Yes |
|
Automatic Over Voltage Protection |
Yes |
|
Automatic Over Current Protection |
Yes |
|
Automatic Internal Cell Balancing |
Yes |
|
Automatic Over Charge Protection |
Yes |
|
Automatic Over Discharge Protection |
Yes |
|
Automatic Over Temperature Protection |
Yes |

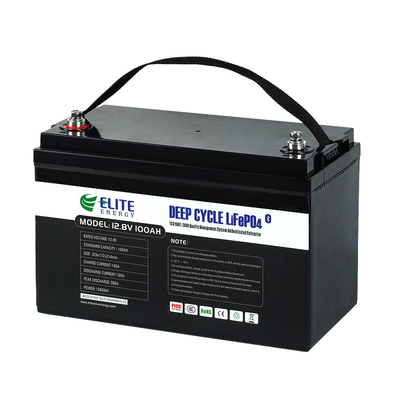

12V 100Ah LFP Battery
Comoany Advantage
◆ Experience--More than 10 years specialized in lithium battery, LiFePO4 battery, Li-ion battery.
◆ Certification--CE,UN38.3,MSDS,ISO 14001,ISO9001
◆ Quality Control-- Professional quality inspection team and 100% inspection before shipment.
◆ Qualified Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Packaging & Shipping
FAQ
1). Can you supply OEM &ODM service ?
Yes, please feel free to contact us with your requirements.
2).What kind of certificates your products have acquired ?
We have CE, MSDS, UN38.3 certifications for all of our products. If you require specific certification, please contact us.
3).How do you ship the goods since they are high capacity battery ?
We have long-term cooperated forwarders who are professional at battery shipment.
4).How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you as soon as possible.
5) How should I pay?
You can pay via T/T,L/C at sight, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
