Product Details:
|
| Rated Capacity: | 12.8V | Reted Voltage: | 200Ah |
|---|---|---|---|
| Power: | 2560Wh | Cycle: | 2000-4000 Cycles |
| Self-discharge Rate: | ≤3% Per Month | Container Material: | ABS Plastic Case |
| Terminal: | M8 | Trademark: | Elite Or OEM |
| Application: | RV, Caravan, Yachat, Boat, Household ESS | Transport Package: | Carton/ Pallet |
| High Light: | 2560Wh 12V LiFePO4 Battery,M8 Terminal 12V LiFePO4 Battery,12.8V 200Ah Lithium Ion Battery Pack |
||

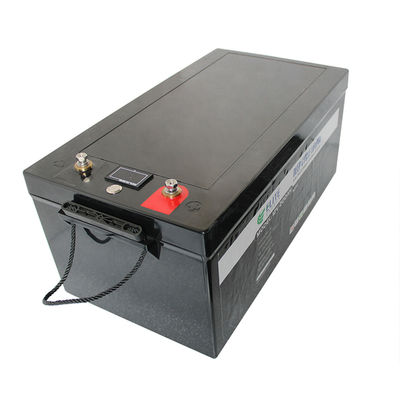

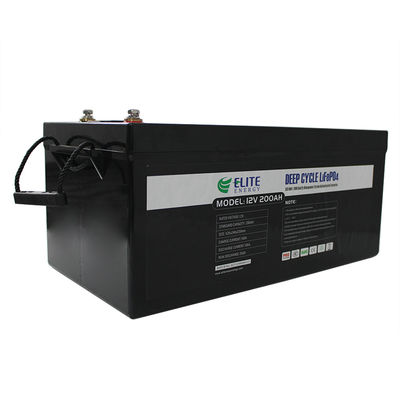

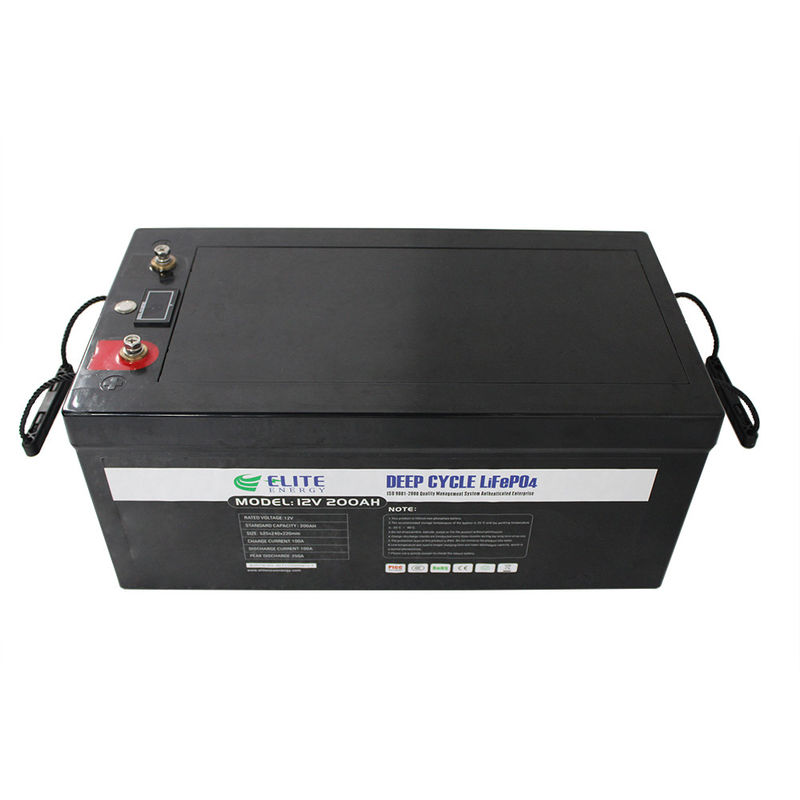

2560Wh 12V LiFePO4 Battery 12.8V 200Ah Lithium Ion Battery Pack
12V LiFePO4 Battery 12.8V 200Ah Lithium Ion Battery Pack with BMS for Solar
Key Features :
Operation temperature: -20~80°C.
Lighter weight smaller size: half size of lead acid battery.
Clean and Green energy, no toxic material contained.
No memory effect, highly efficient charge anytime, no reduction of capacity.
Low self-discharge<3% monthly and good discharge performance at high/low temperature.
Long life>2000 times, 6-8 times of lead acid battery,large capacity and good shock resistance.
Battery Pack Parameters
|
DEType: |
12.8V200Ah |
|
Battery Size: |
525*269*220mm |
|
Standard Voltage: |
12.8V |
|
Capacity: |
200Ah |
|
Cell Inside: |
32700 cell |
|
Over-discharge protection cut-off Voltage: |
10.0V |
|
Over-charge protection cut-off Voltage: |
14.6V |
|
Work Temperature: |
-20~65°C |
|
Storage Temperature: |
Recommended to store at 20 ± 5°C for long term storage. |
|
Chemistry: |
LiFePO4 |
|
Cycle life: |
≥2000 cycles @80%DOD |
|
Color: |
Customized |
|
Weight: |
25KG |
|
Certificates: |
CE, CE/Rosh/MSDS/Un38.3 |
|
Lead time: |
15~25 days |
Battery Image
Description : 123454321
1: 1C continuous discharge rate
2: 2C long pulse discharge rate
3: 3C peak discharge rate
4: Support 4 pieces in serials connection , up to 51.2V
54: Ingress protection class : IP 54
3: Warranty: 3 years
2: Support 2 pieces in parallels connection
1: All in 1 package.
BMS Protection Function:
Support Max 4 pieces in serials connection or max 2 pieces in parallels connection
Overcharge Detection
Over Discharge Detection
Over Current Detection
Short circuit Detection
Function of LiFePO4 Battery
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Application of LiFePO4 Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒Electric drill, electric saw, lawn mower and so on
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wirelesst
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
Temperature Detection
Alarm Function
