Product Details:
|
| Capacity: | 12V 100Ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 1280Wh |
| Application: | 3 Years | Cycle Life: | 3000-5000 Cycles |
| Self-diacharge Rate: | <3% | Compact Desiged: | With Built-in BMS |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | 100Ah 12V LiFePO4 Battery Pack,12V 100Ah Lithium Ion Battery,1280Wh 12V LiFePO4 Battery |
||
1280Wh 100Ah 12V LiFePO4 Battery Pack For Home Energy Storage
12V 100Ah Lithium Ion Battery Pack Solar Battery For Home Energy Storage
12V Lithium Battery Parameter
| Item | 12V 20Ah Battery | 12V 50Ah Battery | 12V 100Ah Battery |
| Nominal Voltage | 12.8V | 12.8V | 12.8V |
| Nominal Capacity | 20Ah | 50Ah | 100Ah |
| Energy | 256Wh | 640Wh | 1280Wh |
| Dimension | 181*76*166mm | 197*166*170mm | 329*172*219mm |
| Weight | 3.2KG | 6KG | 14.7KG |
| Cycle Life | ≥2000 Cycle @ 25℃ | ≥2000 Cycle @ 25℃ | ≥2000 Cycle @ 25℃ |
| Working Temperature | -20~55 | -20~55 | -20~55 |
| Discharge Voltage | 12.8V | 12.8V | 12.8V |
| Charge Voltage | 14.6±0.2V | 14.6±0.2V | 14.6±0.2V |
| Recommend Charge Current | 4A | 10A | 20A |
| Max. Charge Current | 20A | 50A | 100A |
| Max. Pulse Current | 40A(10S) | 100A(10S) | 200A(10S) |
12V Lithium Battery Feature
Longer Cycle Life
Offers more than 2500 cycle times that reduce the replacement cost and total cost of ownership.
Lighter Weight
Lighter in weight and heavier on power. It is only 40% of the weight of a comparable lead acid battery.
Superior Safety
Safest Li-ion battery, built-in BMS, eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Flexible Connection
Standard module design and the batteries are support connect in parallel and series. Easier installation and maintenance free.
Wider Working Temperature
Good performance at high temperature and high temperature resistance, the temperature range are between -20°C to +60°C.
Friendly Operation
Blue-tooth ,communication function are optional for checking the battery status.App control are more convenient.

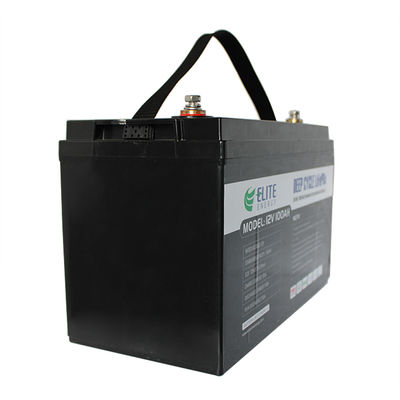

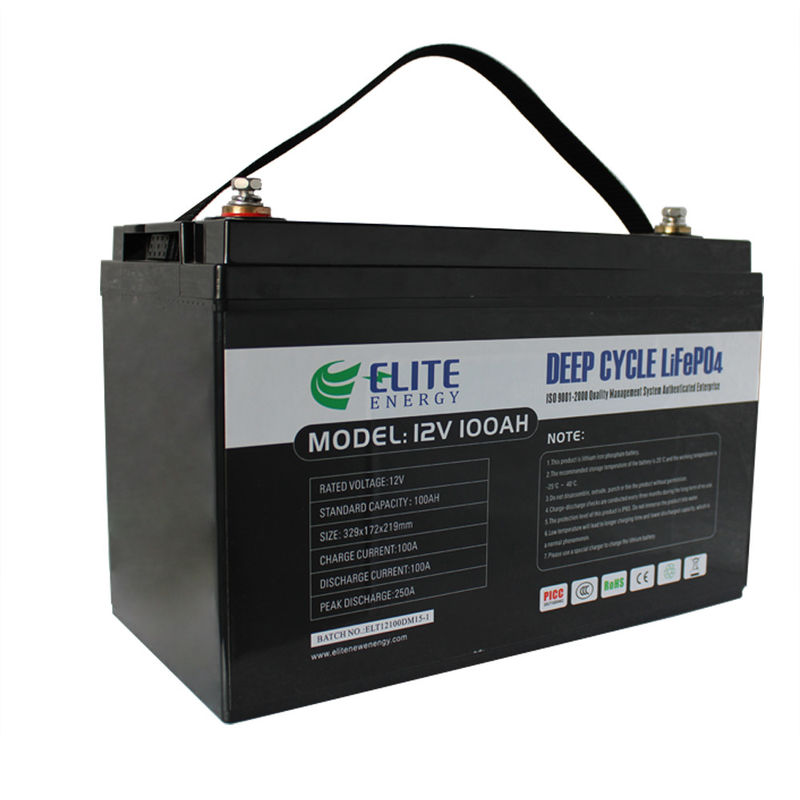

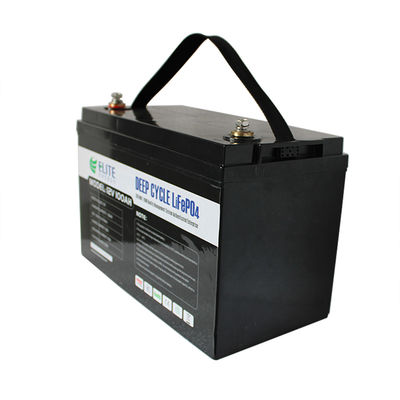

12V Lithium Battery Images
Q&A
Q1.Are you real factory or trader?
A1. We are factory supplier and welcome to visit our factory.
Q2.Can you accept OEM order with requested package?
A2. Yes, we support OEM as well as printing brand LOGO and OEM package
Q3: How do you control the product quality?
A3: All products will go through strict tests and 100% inspection before delivery.
Q4: Is it the battery capacity real?
A4: All of our battery are real capacity and we support sample order for testing the quality firstly.
Q5: What about the lead time for mass production?
A5: Usually, it will take about 30 days for bulk order and it also depends on the order quantity and the season you place the order. We will suggest you to start purchase plan as soon as possible.
Q6: Which payment do you accept?
A6: L/C, T/T/ Paypal, D/P, Western Union, etc. Usually for T/T.
