Product Details:
|
| Capacity: | 12V 60Ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 60Ah | Energy: | 768Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Water Dust Resistance: | IP54 |
| Bluetooth: | Optional | OEM/ODM: | Available |
| High Light: | LFP 12V LiFePO4 Battery Pack,768Wh 12V LiFePO4 Battery,12V LFP Battery |
||
Lightweight 60Ah 768Wh LFP 12V LiFePO4 Battery Pack For Solar System
12V 60Ah 768Wh LiFePO4 Battery Pack Li ion Battery Lithium Battery For Solar System
| Electric Characteristics | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 60Ah |
| Energy Density | 768Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >2000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge&Discharge | |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 12A |
| Max. Charge Current | 60A |
| Max. Continuous Discharge Current | 60A |
| Max. Pulse Current | 120A(10S) |
| Discharge Cut-off Voltage | 10V |
| Mechanical | |
| Package | ABS case |
| Dimensions(in./mm.) | 195*166*175mm |
| Weight(lbs./kg.) | 7kg |
| Terminal | M8 |
| Display screen | Optional |
| Bluetooth | Optional |
Li-ion Battery Feature
# Lower self discharge of 3%.
# No memory effect of li-ion battery
# Lightweight lithium battery making it easier to handle.
# Wider operating temperature range of -20C-60C.
# Safer material and no toxic and pollution.
# More flexible to combine together to higher voltage and capacity.
# 2 years warranty and on line technology support.

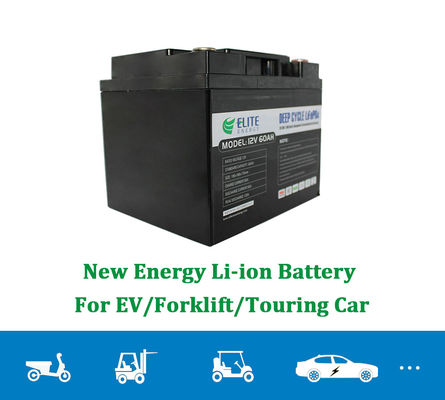

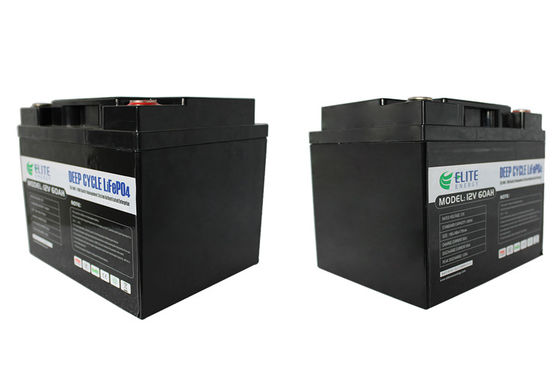

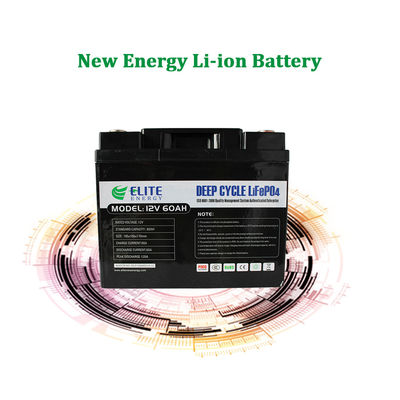

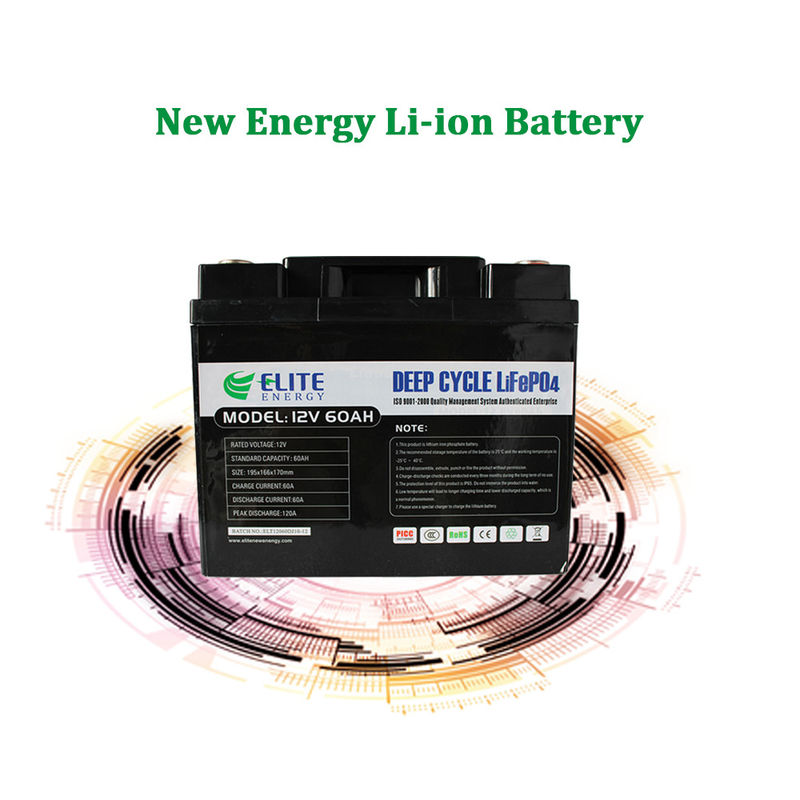

Li-ion Battery Images
Advantage of company
* Professional solution provider.
* Reliable batter cell and other raw material
* Advanced battery pack technology
* A strong R&D team with rich experience
* Strictly producing and management system
* Competitive price and service to support you
* Win-win cooperation between us.
* Welcome to contact us at any time
Delivery
Producing: We usually need 25-30 days for bulk order.
Packing: Product will be packed with carton box
Shiping: By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order.
By Railway (15-35 days): Suitable for bulk order.
Q&A
Q1 Could you send me your catalog and price list?
A1 We have full kinds of battery which feature different voltage and capacity, Please kindly send us your requirement, then we will send the details accordingly.
Q2 How to choose a right battery?
A2 Please kindly inform us your requirements and our sales will recommend a suitable battery to you.
Q3 Do you test all your goods before delivery?
A3 Yes, We have professional QC team to make sure that the product in good condition before send out the goods.
Q4 How about the warranty Policy?
A We offer 2 years warranty for our products and can be replaced with new ones for free if quality Issues.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6 Can we add our logo?
A6 We support OEM and print your brand logo on it, please inform us in advance.
