Product Details:
|
| Capacity: | 3.2V 200Ah | Nominal Voltage Voltage: | 3.2V |
|---|---|---|---|
| Rated Capacity: | 200Ah | Energy: | 640wh |
| Application: | ESS, Solar System | Cycle Span: | 3000-5000 Cycles |
| Type: | Prismatic | Self-diacharge Rate: | <3% |
| High Light: | Deep Cycle 3.2 V LiFePO4 Battery,Rechargeable 3.2 V LiFePO4 Battery,Deep Cycle 200Ah LiFePO4 Cell |
||
Deep Cycle 3.2 V LiFePO4 Battery
Rechargeable LiFePO4 3.2V 200Ah Prismatic/Pouch Cell with Deep Cycle
Feature
1. High Energy Density: lithium iron phosphate battery has high storage density, which has reached 460-600 Wh/kg at present, about 6-7 times higher than lead acid battery;
2. Great cyclic performance: The cycle life of lithium iron phosphate battery is more than 2000 times. The life span of same quality lead acid battery is at most 1~1.5 years, and lithium iron phosphate battery in the same conditions, the theoretical life will reach 7~8 years.
3. LiFePO4 cells could be used in the consumer mobile electronics market, especially has the trends to be applied in Hybrid Electric Vehicles, Electric Bikes and Scooters etc.
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
200Ah |
|
Energy |
640Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
3.65±0.2V |
|
Charge Mode |
0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
20A |
|
Max. Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Max. Pulse Current |
200A(10S) |
|
Discharge Cut-off Voltage |
2.5V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Cell&Method |
1S |
|
Package |
PVC warpping |
|
Dimensions(in./mm.) |
174*54*207mm |
|
Weight(lbs./kg.) |
4.2kg |

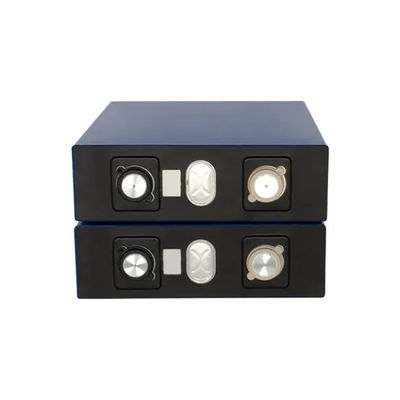

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
