Product Details:
|
| Capacity: | 12V 100Ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 1280Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| LED Indicator: | Yes | OEM/ODM: | Available |
| High Light: | IP54 36V LiFePO4 Battery,36v 40ah Lithium Ion Battery,40Ah Battery With BMS |
||

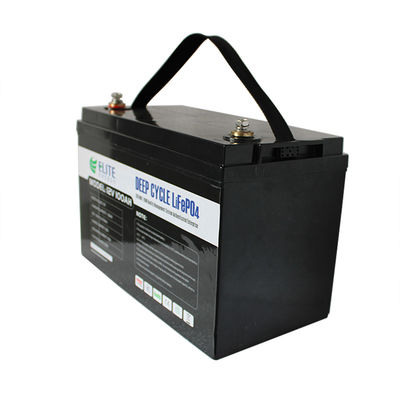

Built-in BMS Phosphate 12Ah IP54 100V LiFePO4 Battery With LED Display
12.8V Lithium Iron Phosphate Batterie 12V 100Ah Battery with BMS
Product Description
Feature
1. Lithium iron phosphate battery has the advantages of excellent high temperature performance. The thermal peak value of lithium iron phosphate battery can reach 350℃-500℃. The working temperature range of lifepo4 battery is wide (-20 C--75C), the peak value of lithium iron phosphate with high temperature resistance can even reach 350℃-500℃, while the peak value of lithium manganese oxide and lithium cobaltate are only about 200℃.
2. Lithium iron phosphate battery has the advantages of non-toxic material contained, non-polluting, excellent safety performance, wide source of raw materials, comparative price and long life span, which is an ideal greener energy to replace lead-acid battery.
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
100Ah |
|
Energy |
1280Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
20A |
|
Max. Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Max. Pulse Current |
250A(10S) |
|
Discharge Cut-off Voltage |
10V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP54 |
|
Cell&Method |
4S |
|
Package |
ABS Plastic Case |
|
Dimensions(in./mm.) |
329*172*214mm |
|
Weight(lbs./kg.) |
14.7kg |
Product Images
Function of LiFePO4 Battery
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Company Information
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
