Product Details:
|
| Capacity: | 72V 100Ah | Nominal Voltage Voltage: | 73.6V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 7360Wh |
| Application: | ESS, EV, Solar System | Cycle Life: | 3000-5000 Cycles |
| Self-diacharge Rate: | <3% | Compact Desiged: | With Built-in BMS |

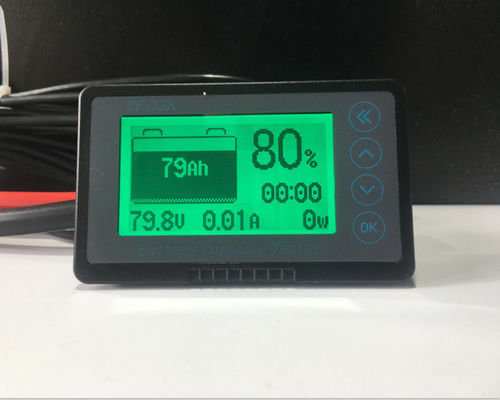

| LED Indicator: | Yes | OEM/ODM: | Available |
| High Light: | ODM 72V LiFePO4 Battery,82kg Electric Car Battery,OEM 72V LiFePO4 Battery |
||
Water Dust Resistance IP67 72V LiFePO4 Battery For Electric Car
Elite Deep Cycle 72V 100Ah EV Lithium Iron LiFePO4 Li-ion Battery
Feature
1. Long cycle life: with more than 3000 cycles, normal life time is more than 10 years.
2. Safety: The battery have built-in BMS to monitor the battery status and carry on protection to the battery.
3. Smaller size with larger capacity: Compared with Lead-acid battery, LiFePO4 battery is about 1/3 size and weight of it.
4. Excellent performance even in high temperature.
5. With high retention rate (2000 cycles 80%) and low self-discharge(less than 3%).
| Nominal Voltage | 73.6V |
| Nominal Capacity | 100Ah |
| Energy | 7360Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 83.95±0.2V |
| Charge Mode | 0.2C to 83.95V, then 83.95V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 200A(10S) |
| Discharge Cut-off Voltage | 57.5V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP67 |
| Cell&Method | 23S |
| Package | Metal Case |
| Dimensions(in./mm.) | 530*300*280mm |
| Weight(lbs./kg.) |
82kg |

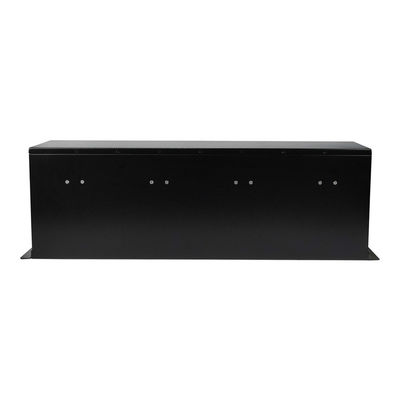

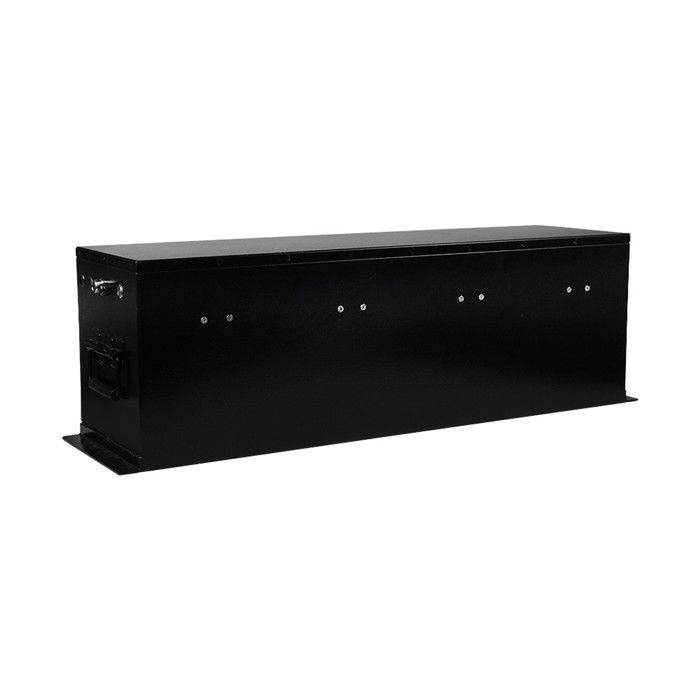

Product Images
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
Contact Person: Colin
Tel: +86-755-84862035
