240Ah Custom Lithium Ion Battery

240Ah Custom Lithium Ion Battery
240Ah Custom Lithium Ion Battery 240Ah Custom Lithium Ion Battery

Large Image :  240Ah Custom Lithium Ion Battery

Product Details:
Place of Origin: Guangdong, China
Brand Name: Elite Battery
Certification: CE, UL, MSDS, UN38.3, MSDS
Model Number: 12V 240Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $159.99-$799.99/PCS
Packaging Details: Carton box with pallet
Delivery Time: 30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000 PCS/Month

240Ah Custom Lithium Ion Battery

Description
Model: LiFePO4 12V 240Ah Energy: 3072wh
Rated Voltage: 12.8V Rated Capacity: 240Ah
Application: ESS, EV, Solar System Cycle Span: 3000-5000 Cycles
Self-diacharge Rate: <3% Compact Desiged: With Built-in BMS
OEM/ODM: Available LED Indicator: Yes
High Light:

240Ah Custom Lithium Ion Battery

,

3Kwh Custom Lithium Ion Battery

,

240Ah RV Battery Pack

240Ah Custom Lithium Ion Battery



Custom Lithium Ion RV Battery Pack 12V 240Ah 3Kwh LiFePO4 Batterie



Product Description

Product Profile

ELT-12V-240Ah-LFP Battery is a lithium battery pack developed independently for energy storage market by Elite, which has the characteristics of multifunction, low power consumption, high reliability and high cost performance. The dimension of the ELT-12V-240Ah-LFP Battery is 395*190*260mm. The main modules of ELT-12V-240Ah-LFP Battery including battery module and BMS module. Battery module is made of LFP prismatic cell. The function of BMS module is to monitor, diagnose, control and manage the battery voltage, temperature, current, fault and so on.

Nominal Voltage

12V

Nominal Capacity

240Ah

Energy

3072Wh

Internal Resistance

≤10mΩ

Cycle Life

>3000 cycles@1C 100% DOD

Months Self Discharge

<3%

Efficiency of Charge

100%@0.5C

Efficiency of Discharge

96-99% @1C

Charge Cut-off Voltage

14.6±0.2V

Charge Mode

0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV)

Recommend Charge Current

20A

Max. Charge Current

100A

Max. Continuous Discharge Current

100A

Max. Pulse Current

250A(10S)

Discharge Cut-off Voltage

10V

Charge Temperature

0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity

Discharge Temperature

-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity

Storage Temperature

0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity

Water Dust Resistance

IP54

Cell&Method

4S

Dimensions(in./mm.)

395*190*260mm

Weight(lbs./kg.)

30kg

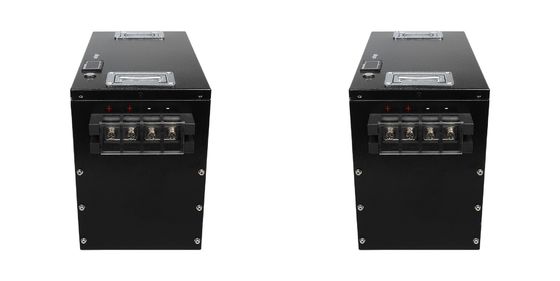

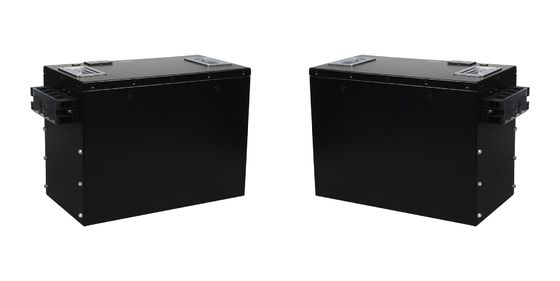

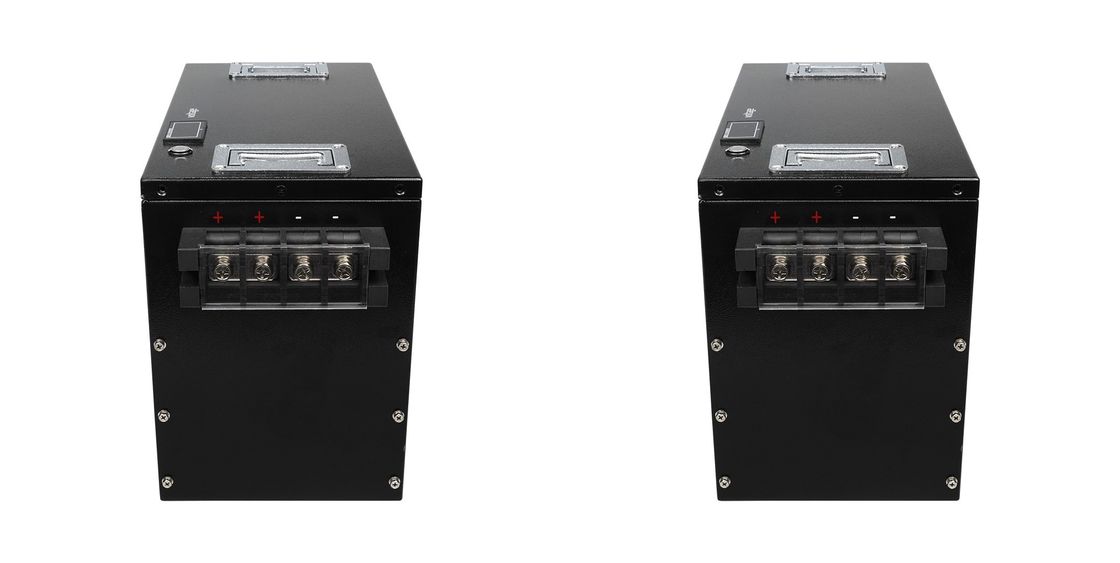

Product Images



240Ah Custom Lithium Ion Battery 0

Product Advantages



1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.

2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.

3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..

4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.

5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.

6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.



Production Line



240Ah Custom Lithium Ion Battery 1



Packaging & Shipping

Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

Shipping: By air, by sea, by express, railway transportation and so on.



Q&A



1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
