Product Details:
|
| Capacity: | 51.2V 105Ah | Nominal Voltage Voltage: | 51.2V |
|---|---|---|---|
| Rated Capacity: | 105Ah | Energy: | 5376Wh |
| Application: | ESS, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Communication: | CAN, RS232, RS485 | OEM/ODM: | Available |

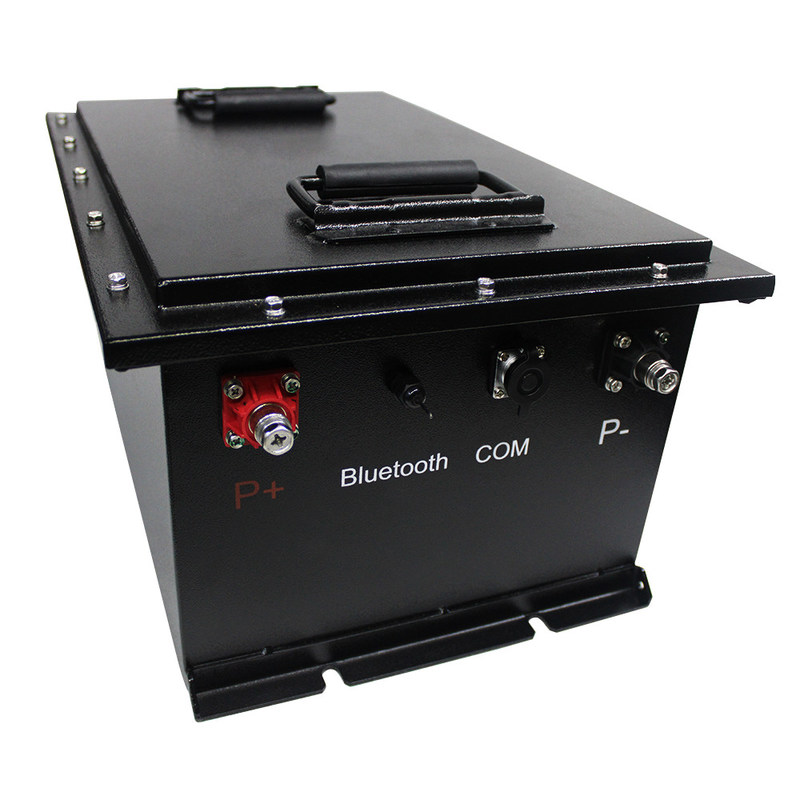

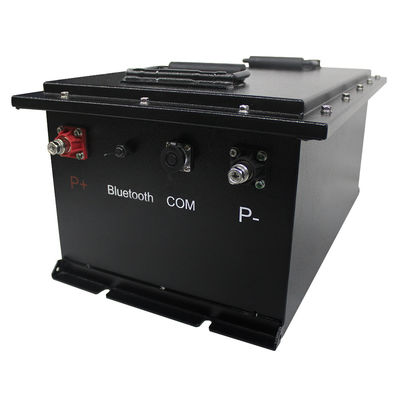

Elite High Power Lithium Ion Battery Pack Energy Storage Battery
51.2V 105Ah Golf Car LitFePO4 Battery
Battery Datasheet
|
Electrical Characteristics |
Nominal Voltage |
51.2V |
|
Nominal Capacity |
105Ah |
|
|
Energy |
5376Wh |
|
|
Internal Resistance |
≤10mΩ |
|
|
Cycle Life |
>6000 cycles@1C 100% DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100%@0.5C |
|
|
Efficiency of Discharge |
96-99% @1C |
|
|
Standard Charge |
Charge Cut-off Voltage |
58.4±0.2V |
|
Charge Mode |
0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) |
|
|
Recommend Charge Current |
55A |
|
|
Max. Charge Current |
100A |
|
|
Standard Discharge |
Max. Continuous Discharge Current |
200A |
|
Max. Pulse Current |
400A(35S) |
|
|
Discharge Cut-off Voltage |
40V |
|
|
Environmental |
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP67 |
|
|
Mechanical |
Cell&Method |
16S |
|
Package |
Metal case |
|
|
Dimensions(in./mm.) |
509*334*230mm |
|
|
Weight(lbs./kg.) |
45kg |
|
|
Terminal |
M8 |
|
|
Display screen |
Optional |
|
|
Bluetooth |
Optional |
Battery Performance
(1) Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 3-10C for 10 seconds.
(2) Good performance under high temperature, it could work under 45°C temperature.The battery structure is safe and good.
(3) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(4) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(5) Complete BMS function, powerful protection, with over charge, over discharge, over current, over temperature and Short circuit protection.
Battery Details
Introduction
Elite is a leading lithium battery manufacturer in China, which is committed to provide customers with safe and durable battery products for EV power battery, portable energy storage, household energy storage, micro power grid, telecom station power supply, UPS, solar street lights, harvesters, AGV, forklift, electric tricycles, electric wheelchairs, etc. Elite professional experienced technicians and advanced equipments provide customers with high-quality batteries and professional customized battery solutions. Elite has passed ISO 9001 ISO 14001 certification, Elite products have been certified with UL, CE, UN38.3, MSDS, etc.
Packaging & Shipping
With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.
Shipment:By air, by sea, by express, by railway, etc.
F&Q
1. Can your battery be delivered by sea and air?
A: Yes, our batteries can be delivered by sea, by air and by express. We have MSDS, test report for safe transport as non-dangerous products.
2. Can I put my logo on the battery?
A: Yes, you can print your logo on our batteries and pleasae kindly inform us in advance.
3. What is your warranty time for Elite battery ?
A: Usually for 3-5 years.
4. Are you a battery manufacturer, and do you produce it by yourself ?
A: Yes, we are a professional battery manufacture in Guangdong Province, China. And we do the assembly ,too.
5. How does your factory control the quality?
A: We adopt ISO 9001 quality system to control the quality. We have Incoming Quality Control (IQC) department to test and confirm raw material meets high quality producing requirements, Production Quality Control (PQC) department contains The first Inspection, In-process quality control, acceptance inspection and full inspection, Outgoing Quality Control (OQC) department confirm no defective batteries come out from the factory.
