12V 100Ah LFP Lithium Battery for solar energy storage Built in BMS

12V 100Ah LFP Lithium Battery for solar energy storage Built in BMS

  • High Light

    12V 100Ah LFP Lithium Battery

    ,

    LFP Lifepo4 Battery 12v

    ,

    Lifepo4 Battery For Solar Energy Storage

  • Capacity
    12V 100Ah
  • Nominal Voltage Voltage
    12.8V
  • Rated Capacity
    100Ah
  • Energy
    1280Wh
  • Application
    3 Years
  • Cycle Life
    3000-5000 Cycles
  • Self-diacharge Rate
    <3%
  • Compact Desiged
    With Built-in BMS
  • Bluetooth
    Optional
  • OEM/ODM
    Available
  • Place of Origin
    Guangdong, China
  • Brand Name
    Elite Battery
  • Certification
    CE, UL, MSDS, UN38.3, MSDS
  • Model Number
    12V 100Ah
  • Minimum Order Quantity
    1 PCS
  • Price
    $59.99-$269.99/PCS
  • Packaging Details
    Carton box with pallet
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 PCS/Month

12V 100Ah LFP Lithium Battery for solar energy storage Built in BMS

12V 100Ah LFP Lithium Battery For Solar Energy Storage Built In BMS



12V 100Ah LFP Battery Lithium Battery LiFePO4 Solar Storage Battery



12V LiFePP4 Battery Parameter

Item 12V 20Ah Battery 12V 50Ah Battery 12V 100Ah Battery
Nominal Voltage 12.8V 12.8V 12.8V
Nominal Capacity 20Ah 50Ah 100Ah
Energy 256Wh 640Wh 1280Wh
Dimension 181*76*166mm 197*166*170mm 329*172*219mm
Weight 3.2KG 6KG 14.7KG
Cycle Life ≥2000 Cycle @ 25℃ ≥2000 Cycle @ 25℃ ≥2000 Cycle @ 25℃
Working Temperature -20~55 -20~55 -20~55
Discharge Voltage 12.8V 12.8V 12.8V
Charge Voltage 14.6±0.2V 14.6±0.2V 14.6±0.2V
Recommend Charge Current 4A 10A 20A
Max. Charge Current 20A 50A 100A
Max. Pulse Current 40A(10S) 100A(10S) 200A(10S)



LiFePO4 Battery Feature



1. Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer life than lead acid battery.


2. Lighter Weight: About 40% of the weight of a comparable lead acid battery. The suitable replacement for lead acid batteries.


3. Higher Power: Supply twice power of lead acid battery , even high discharge rate, while maintaining high energy capacity.



4. High Efficency: Small self discharge and no memory effect, charge and discharge at any time.



5. Increased flexibility: Support series connection and parllel connection to reach higher power



12V 100Ah LFP Lithium Battery for solar energy storage Built in BMS 0

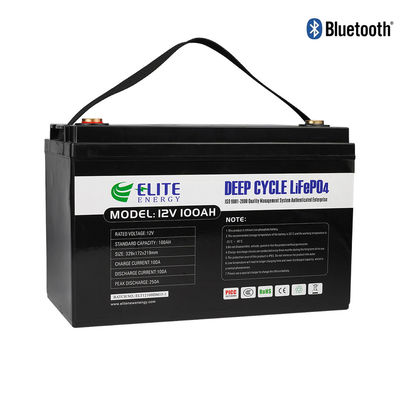

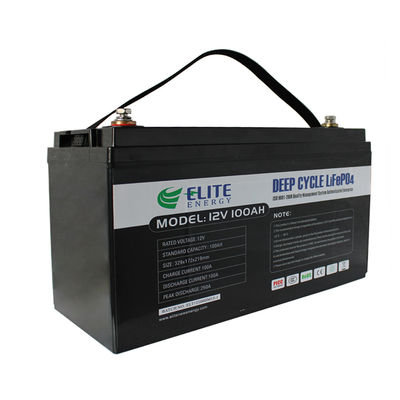

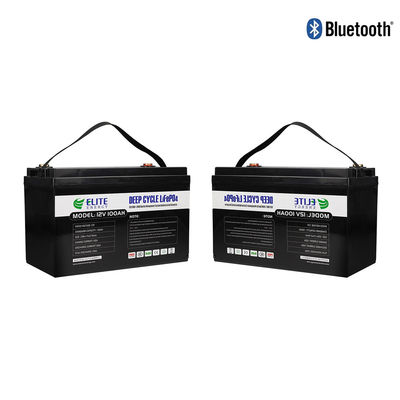

Battery Images



12V 100Ah LFP Lithium Battery for solar energy storage Built in BMS 1





Built in BMS




12V 100Ah LFP Lithium Battery for solar energy storage Built in BMS 2







Packaging & Shipping



With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.

Shipment:By air, by sea, by express, by railway, etc.







Q&A



Q1: Can we have a sample order?
Yes, we welcome sample to test the quality, customized is available.



Q2: I would like to know the payment terms.
The quotation is based on the EXW and we accept TT, PAYPAL, WESTERN,UNION,L/C usually.



Q3: How to deliver our goods?
The products will be delivered by DHL, UPS, FedEx and TNE. Airline and sea shipping are also optional.



Q4: How's the after-sale service?
Usually We offer 3 year guarantee. If tere are any problems for the batteries, we will offer you the positive solutions at the first time.
